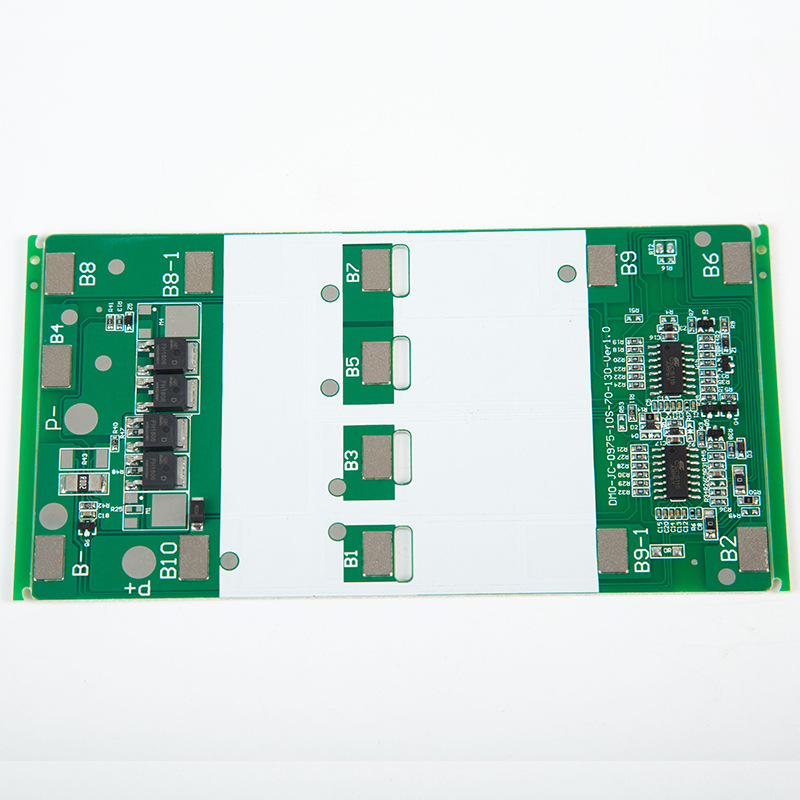

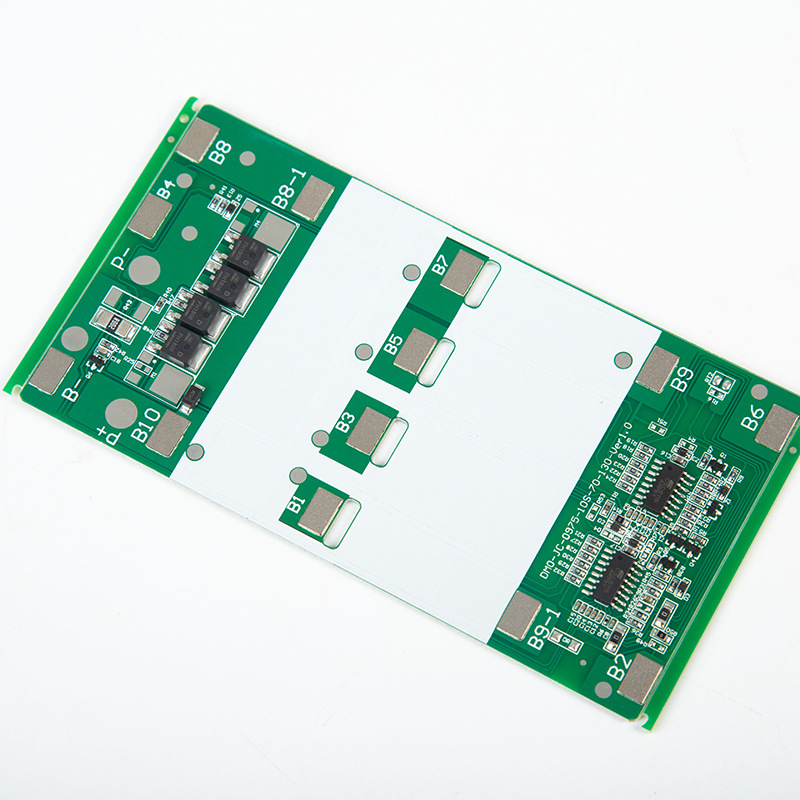

DMO-JC-0975-10S Hoverboard Battery Scooter BMS Protection Board 10S 36V 10A
The DMO-JC-0975-10S is a high-performance Lithium-ion Battery Management System (BMS) protection board specifically designed for 10S (36V) battery packs found in self-balancing hoverboards and electric scooters. Built to optimize battery life and ensure reliable operations, this board effectively handles battery protection duties. It features integrated multi-MOSFET switching circuits to safely govern continuous charge and discharge tasks, safeguarding individual cell arrays within your custom or replacement battery builds.
Features
- Integrated 10S Multi-Cell Management
- Heavy-Duty Power MOSFETs
- Clean, Accessible Layout
- Dual IC Dual-Layer Control Monitoring
Specifications
| Parameter | Specification |
|---|---|
| Model / PCB Text Label | DMO-JC-0975-10S-70-130-Ver1.0 |
| Battery Pack Configuration | 10S |
| Nominal Voltage Rating | 36V |
| Maximum Continuous Current | 10A |
| Power MOSFET Component Model | FH1806 (4x onboard units mapped to power routing) |
| Board Dimensions | 136 x 70 x 4 mm |
| Main Power Interface Terminals | P+ (Positive Power Line) P- (Negative Power Line) |
Applications
- Hoverboards
- Electric Scooters
Package Content
- 1 x DMO-JC-0975-10S Hoverboard Battery Scooter BMS Protection Board 10S 36V 10A
