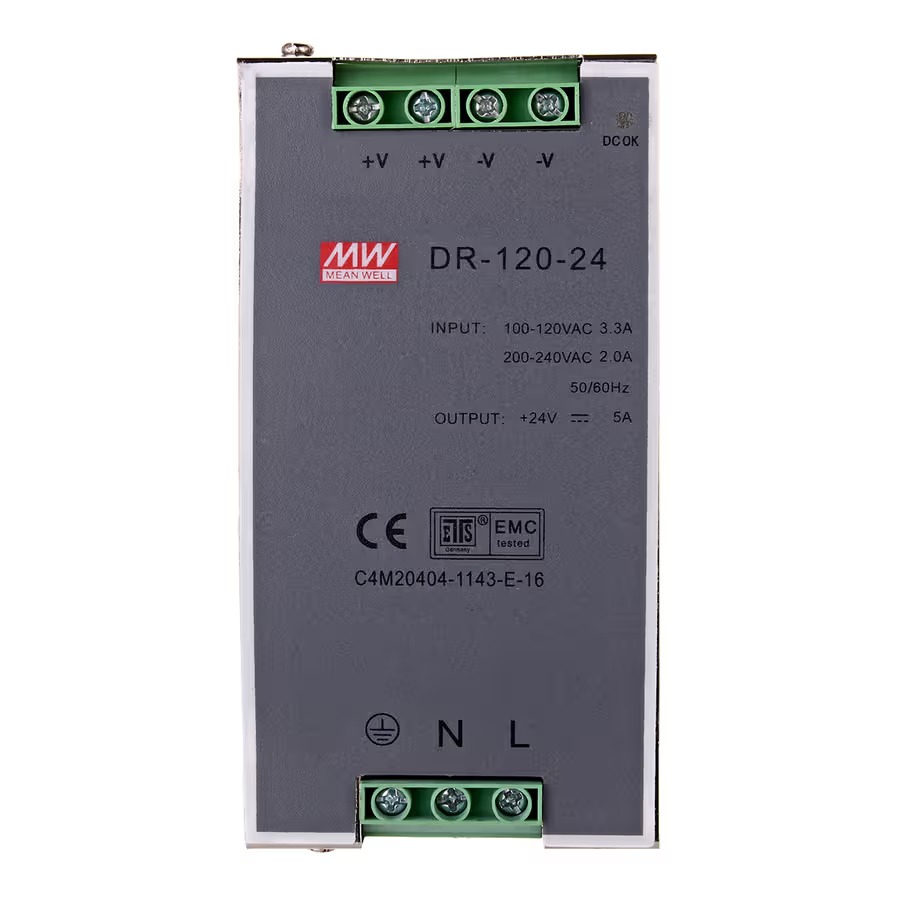

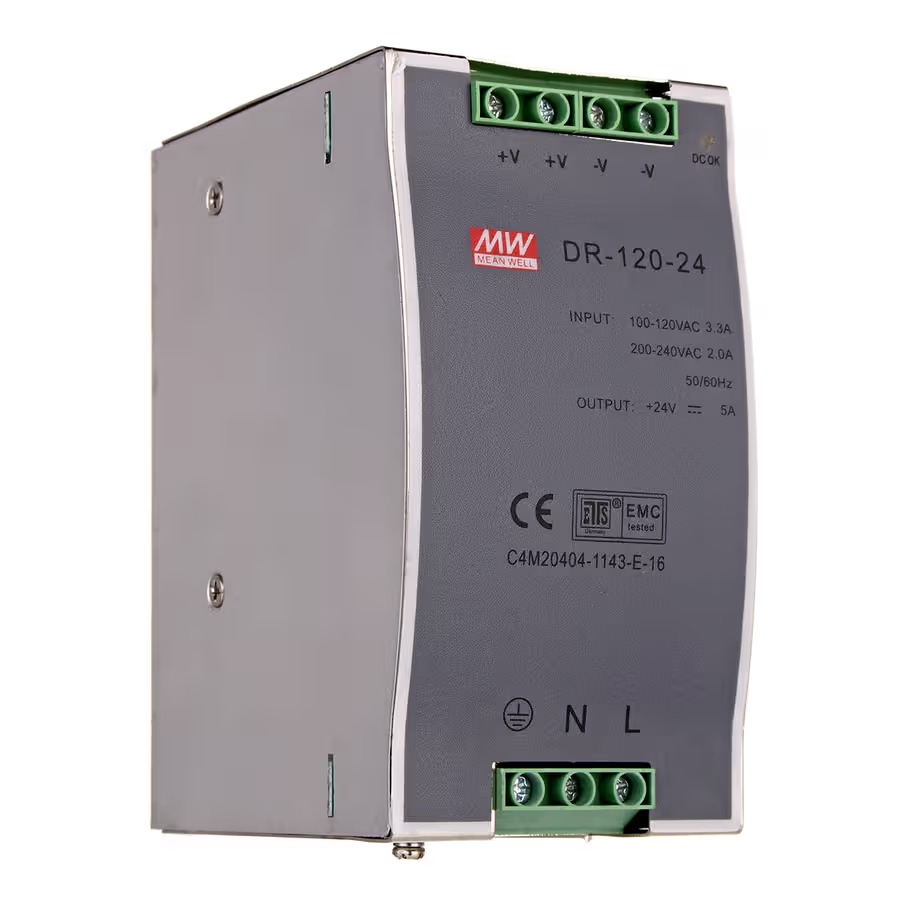

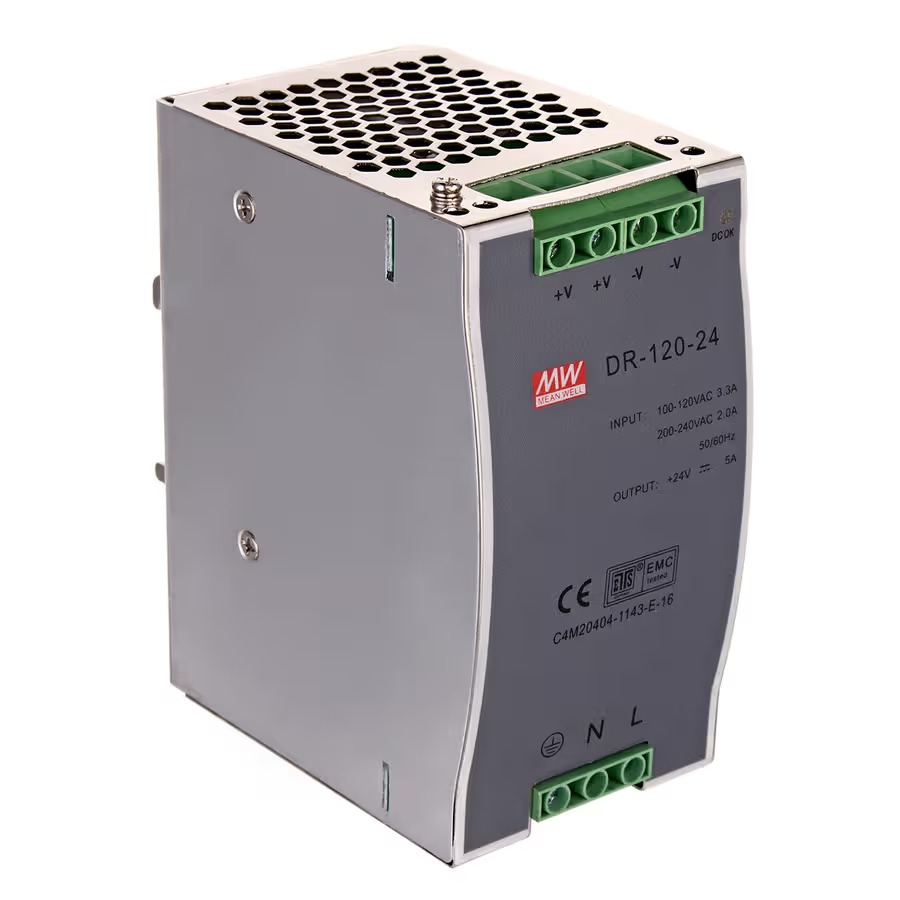

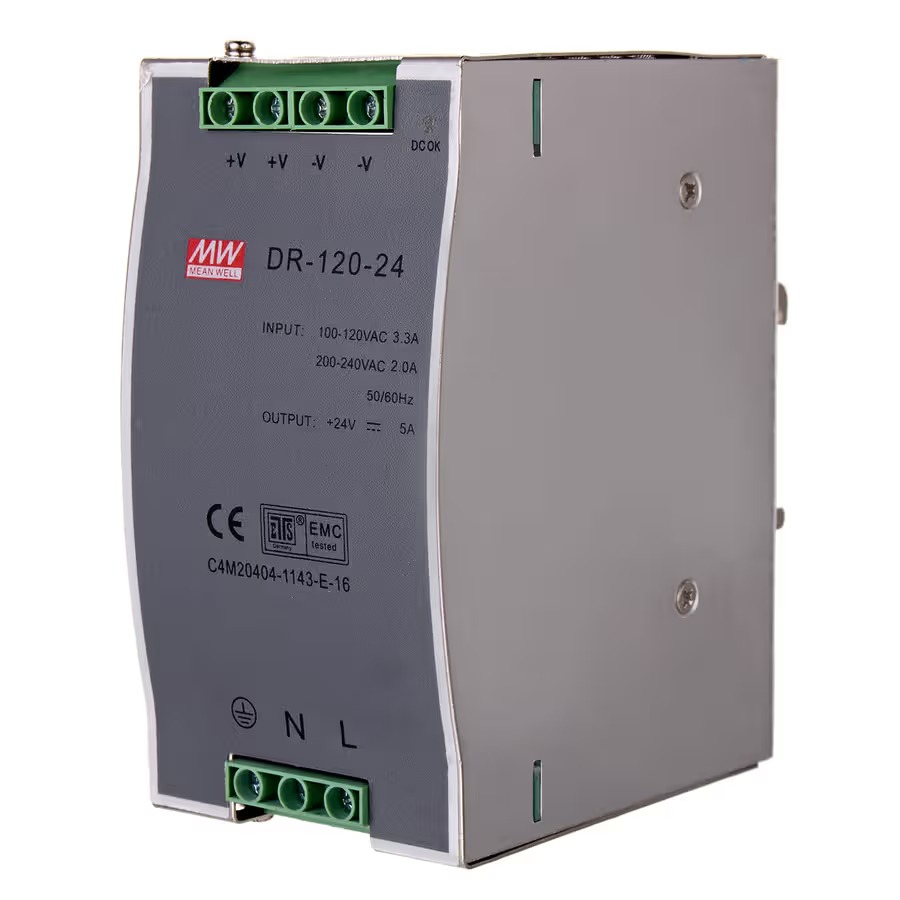

DR-120-24 AC/DC DIN Rail Power Supply 24V, 5A, 120W
DR-120-24 is a 120W industrial DIN rail power supply delivering 24VDC at 5A, featuring robust electrical protections and a fanless thermal design.
1,250.00 EGP
Buy NowDR-120-24 AC/DC DIN Rail Power Supply 24V, 5A, 120W

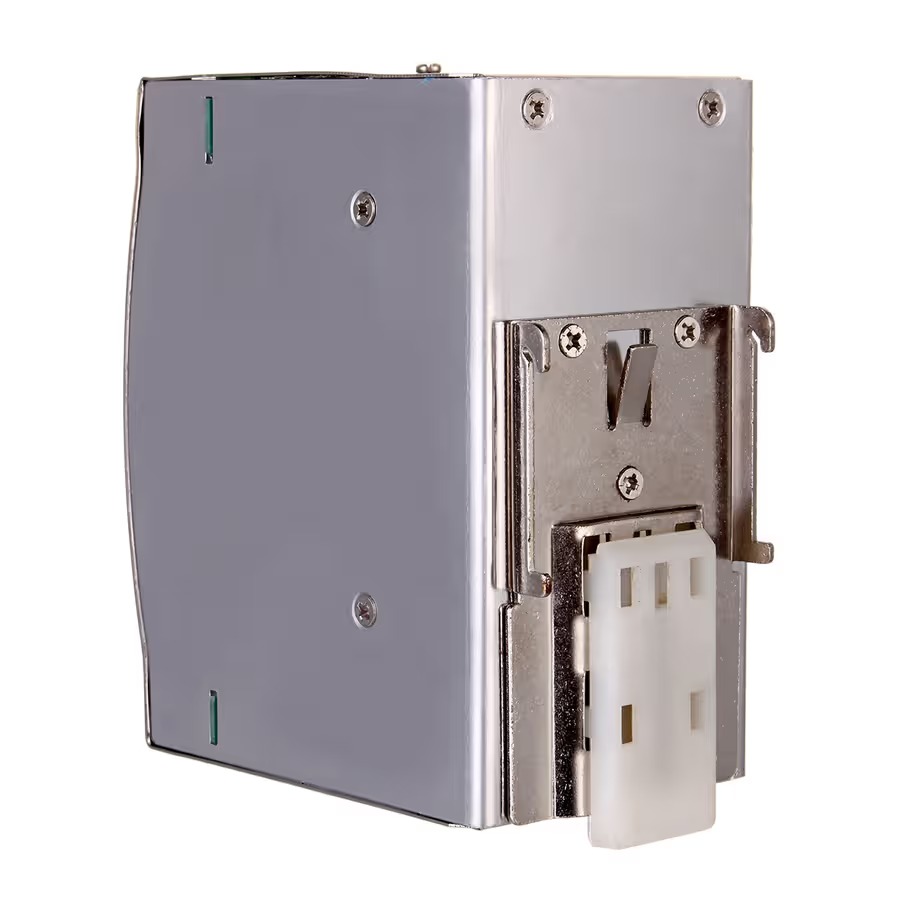

Industrial environments are notoriously hostile to delicate electronic components, making reliable power delivery a critical necessity for continuous operation. The DR-120-24 AC/DC DIN Rail Power Supply 24V, 5A, 120W (explicitly labeled on the housing as the DR-120-24 series) is a heavy-duty industrial power conversion module purposefully designed for demanding automation and control networks. Manufactured by MEAN WELL, a globally trusted name in power solutions, this 120W single output industrial power supply provides exceptionally stable direct current for precision electromechanical operations. Engineered to significantly streamline electrical panel integration, the unit features a secure mechanical mounting interface that can be installed on DIN rail TS-35/7.5 or 15 systems.
Features:
- Compact, lightweight, easy install.
- High efficiency and high performance.
- Low consumption, heat dissipation design.
- Overload Pprotection: Cut off the output, auto recovery.
- Apply to automation field, medical, instruments, electricity, network communication.
Specifications:
| Parameter | Value |
|---|---|
| Brand | MEAN WELL |
| Model | DR-120-24 |
| Input Rating | 100-120VAC (3.3A) / 200-240VAC (2.0A) |
| Input Frequency | 50/60Hz |
| Output Voltage | 24VDC |
| Output Voltage Range | 24VDC–28VDC |
| Rated Current | 5A |
| Rated Power | 120W |
| Efficiency | 84% |
| Operating Temperature | -10°C ~ +60°C |
| Dimensions | 65.5 x 125.2 x 100mm |
| Mounting Type | DIN Rail |
Applications:
- Powering programmable logic controllers and modular industrial automation nodes.
- Supplying regulated 24VDC to optical sensors, safety relays, and mechanical actuators.
- Supporting electromechanical apparatus installed inside standard DIN rail control cabinets.
- Integrating into continuous factory processing lines and heavy manufacturing machinery.
- Driving large-scale electrical instrumentation and remote facility monitoring systems.
Package Include:
1x DR-120-24 AC/DC DIN Rail Power Supply 24V, 5A, 120W
