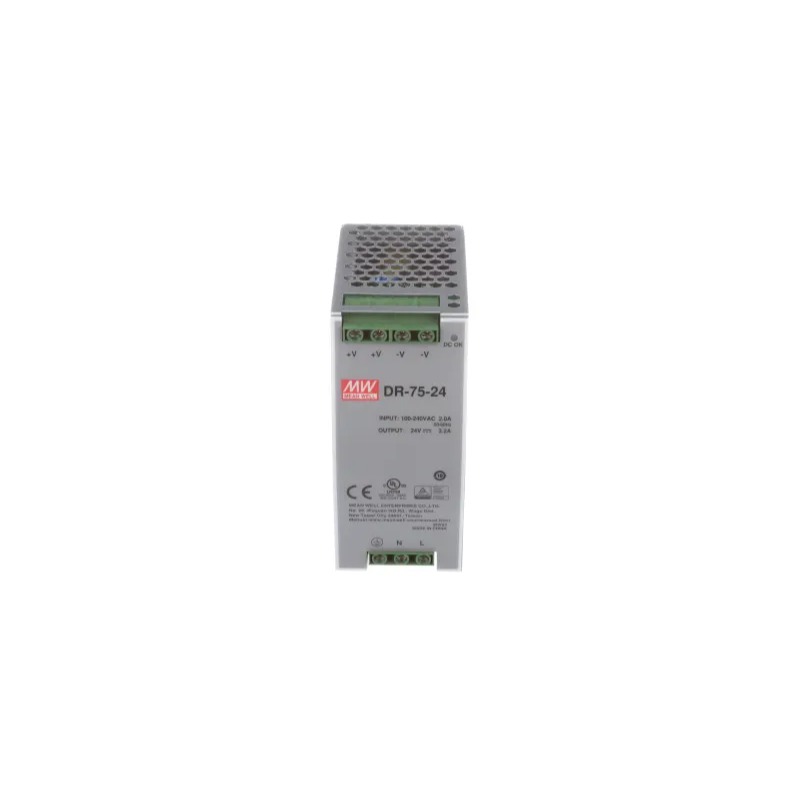

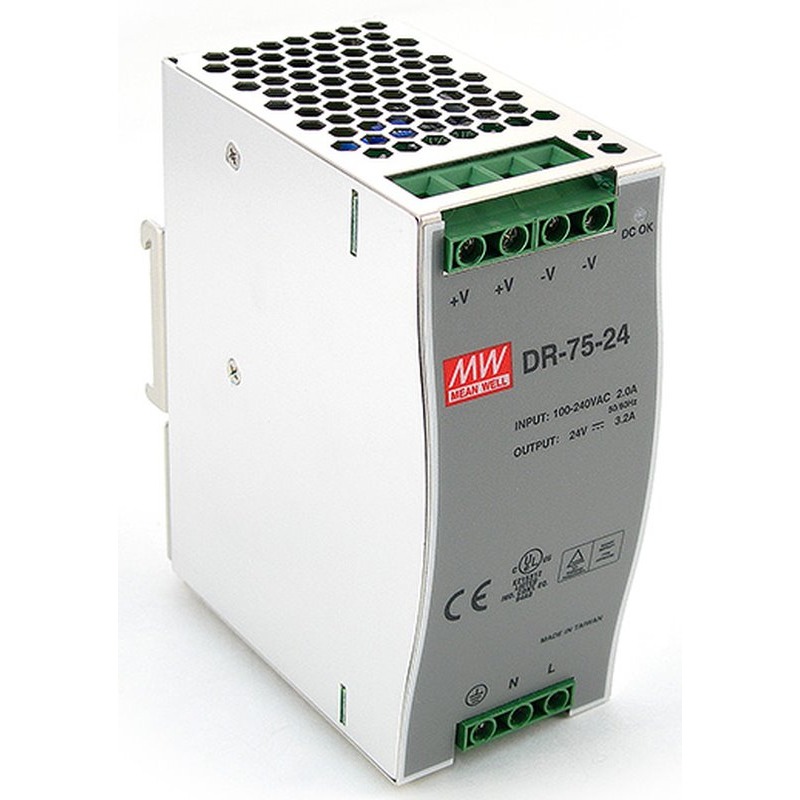

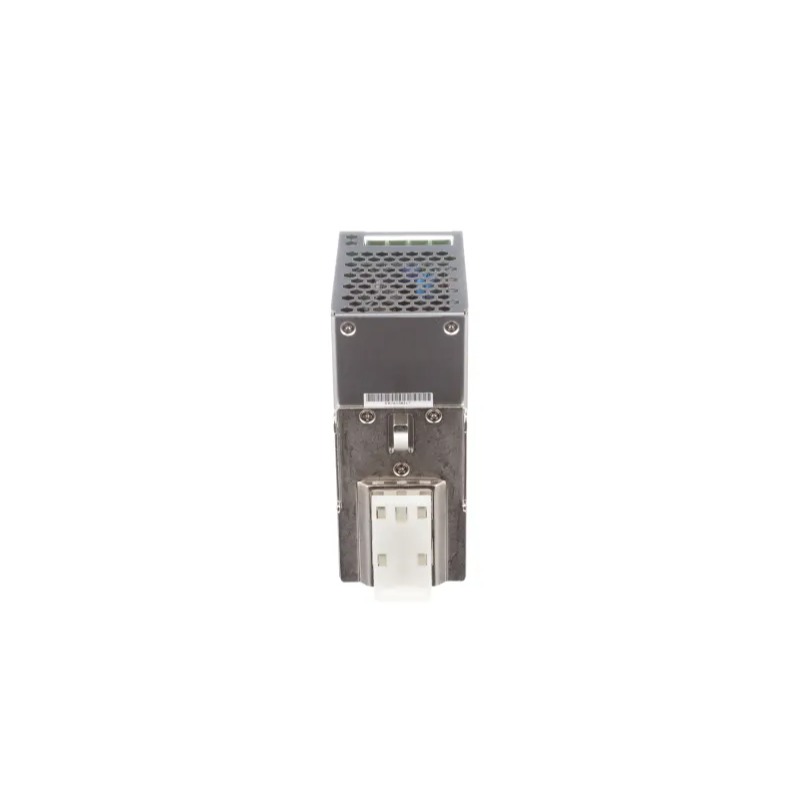

DR-75-24 AC/DC DIN Rail Power Supply 24V, 3.2A, 75W
The DR-75-24 AC/DC DIN Rail Power Supply 24V 3.2A 75W is a compact single-output switching power supply designed to provide a regulated 24VDC supply for industrial automation, control panels, machinery, instrumentation, and other electronic equipment. The unit is designed for DIN rail installation and provides a practical solution for integrating a DC power source into electrical control cabinets.
Features:
- Provides a regulated 24VDC output.
- Rated output current of 3.2A.
- Manufacturer-specified rated power of 76.8W.
- Universal 85–264VAC / 120–370VDC input range.
- 47–63Hz AC input frequency range.
- Adjustable output voltage from 24–28VDC.
- Typical efficiency of 80%.
- Free-air convection cooling.
- Short-circuit protection.
- Overload protection with automatic recovery.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | MEAN WELL |
| Series | DR-75 |
| Model Number | DR-75-24 |
| Product Type | AC/DC DIN Rail Power Supply |
| Output Type | Single Output |
| Rated Output Voltage | 24VDC |
| Rated Output Current | 3.2A |
| Rated Output Power | 76.8W |
| Output Current Range | 0–3.2A |
| Output Voltage Adjustment Range | 24–28VDC |
| Input Voltage Range | 85–264VAC / 120–370VDC |
| Input Frequency | 47–63Hz |
| Typical AC Input Current | 1.6A/115VAC, 0.96A/230VAC |
| Typical Efficiency | 80% |
| Ripple and Noise | 150mVp-p |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±1.0% |
| Overload Protection | 105–150% Rated Output Power |
| Over-Voltage Protection | 29–34V |
| Over-Temperature Protection | Yes |
| Cooling Method | Free-Air Convection |
| Operating Temperature | -10 to +60°C |
| Working Humidity | 20–90% RH, Non-Condensing |
| Storage Temperature | -20 to +85°C |
| Storage Humidity | 10–95% RH |
| DIN Rail Type | TS35/7.5 or TS35/15 |
| Dimensions | 55.5×125.2x100mm (W×H×D) |
| Mounting Type | DIN Rail |
Applications:
- Industrial automation control panels.
- PLC control systems.
- Factory automation equipment.
- Machinery control systems.
- Industrial instrumentation.
- Electrical control cabinets.
- Building automation systems.
- Sensors and control devices requiring 24VDC.
- Relay and contactor control systems.
- Electronic equipment requiring a regulated 24VDC supply.
Package Include:
1x DR-75-24 AC/DC DIN Rail Power Supply 24V, 3.2A, 75W.
