DRV8833 Dual Channel DC Motor Driver Module
The DRV8833 2 Channel DC Motor Driver Module is a compact and efficient dual H-bridge motor driver capable of controlling two DC motors or one bipolar stepper motor. Designed for low-voltage applications, it operates within a 2.7V to 10.8V range, making it ideal for battery-powered projects. With built-in protection features and compatibility with 3.3V and 5V logic levels, this module is perfect for robotics, automation, and DIY electronics projects.
Features:
- Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor.
- Operating voltage: 2.7 V to 10.8 V.
- Output current: 1.2 A continuous (2 A peak) per motor.
- Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor.
- Inputs are 3V- and 5V-compatible.
- Under-voltage lockout and protection against over-current and over-temperature.
- Reverse-voltage protection circuit.
Specifications:
- Supply Voltage: 2.7V – 10.8V
- Continuous Current per Channel: Up to 1.2A
- Peak Current per Channel: Up to 2A
- Logic Voltage Compatibility : 3.3V and 5V
- Board Dimensions: Approximately 18 x 15 mm
Pin Configuration:
Applications:
- Battery-Powered Toys
- Gaming Machines
- Robotics
- POS Printers
Package Includes:

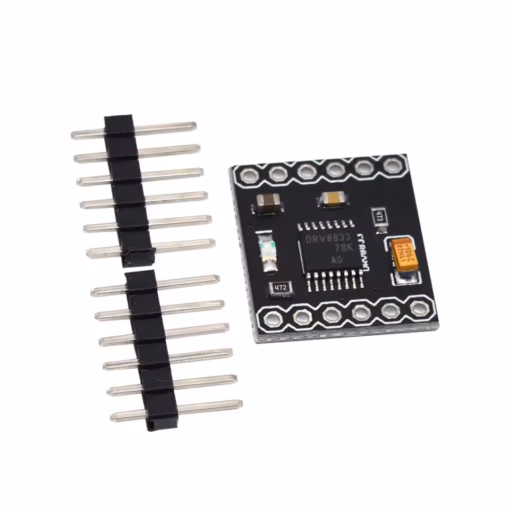

- 1x DRV8833 Dual Channel DC Motor Driver Module.
- 2x 6-Pin Male Header.
