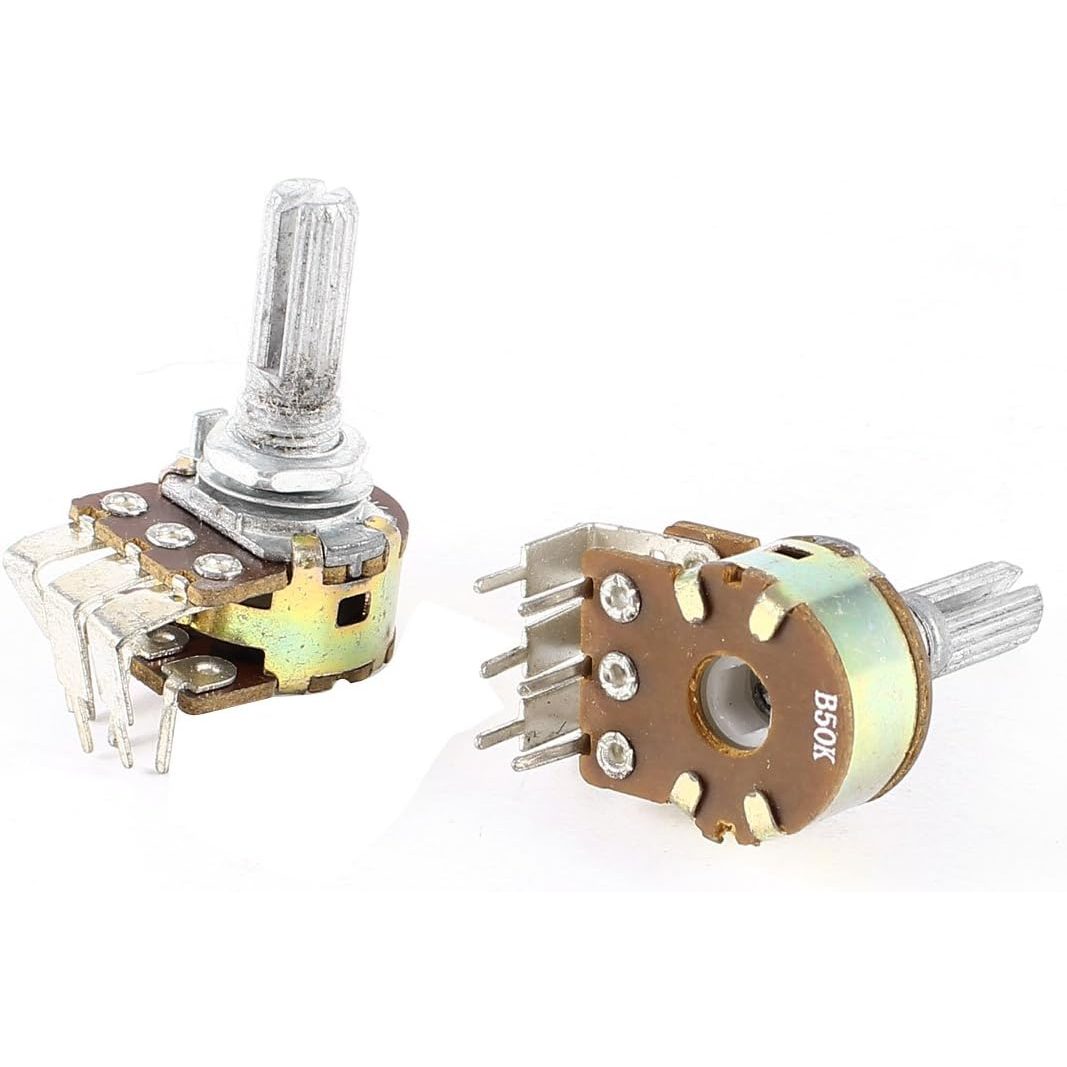

Dual Metal Potentiometer 50K Ohm 6-Pin (Right Angel)
50K Ohm Dual Metal Potentiometer right-angle with 6 pins, ideal for stereo audio control in PC mount applications.
10.00 EGP
Buy NowDual Metal Potentiometer 50K Ohm 6-Pin (Right Angel)
The Dual Metal Potentiometer 50K Ohm 6-Pin (Right Angle) is a high-quality, dual-gang component designed for applications requiring simultaneous adjustment of two independent circuits using a single control knob. This potentiometer is particularly suited for stereo audio systems, where it facilitates precise volume control for both left and right channels, ensuring balanced audio output. Its right-angle design allows for flexible mounting options, making it ideal for space-constrained or aesthetically driven designs, such as panel-mounted controls in audio equipment, amplifiers, or industrial control systems.
Features:
- Dual-gang design for simultaneous control of two independent circuits.
- Metal housing for enhanced durability and longevity.
- Right-angle mounting for flexible installation options.
- Audio/logarithmic taper for smooth and predictable adjustments, ideal for audio applications.
Specifications:
| Parameter | Specification |
|---|---|
| Product Name | Carbon Film Potentiometer |
| Material | Carbon film metal |
| Resistance Value | 50 kΩ |
| Tolerance | ±20% |
| Turn Number | 1 Turn |
| Pins Number | 6 |
| Shaft Type | Round shaft, knurled with split design for push-on knob |
| Screw Thread Diameter | 6.7 mm |
| Shaft Diameter | 6 mm |
| Pitch | 3.75 mm |
| Distance Between 2-Row of Pins | 5 mm |
| Adjustment Type | Top adjustment |
| Features | 50 kΩ, 6 terminals, dual linear, suits most standard knobs Knurled shaft for easy operation in daily use |
| Primary Application | Control electrical devices such as volume controls on audio equipment |
Applications:
- Stereo audio volume control in amplifiers and receivers.
- Signal balancing and mixing in audio equipment.
- Dual-channel calibration in laboratory instruments.
- Industrial controls requiring simultaneous parameter adjustments.
- Automotive audio systems for balanced sound output.
- Home theater systems for precise audio tuning.
Package Include:
- 1x Dual Metal Potentiometer 50K Ohm 6-Pin (Right Angle).
