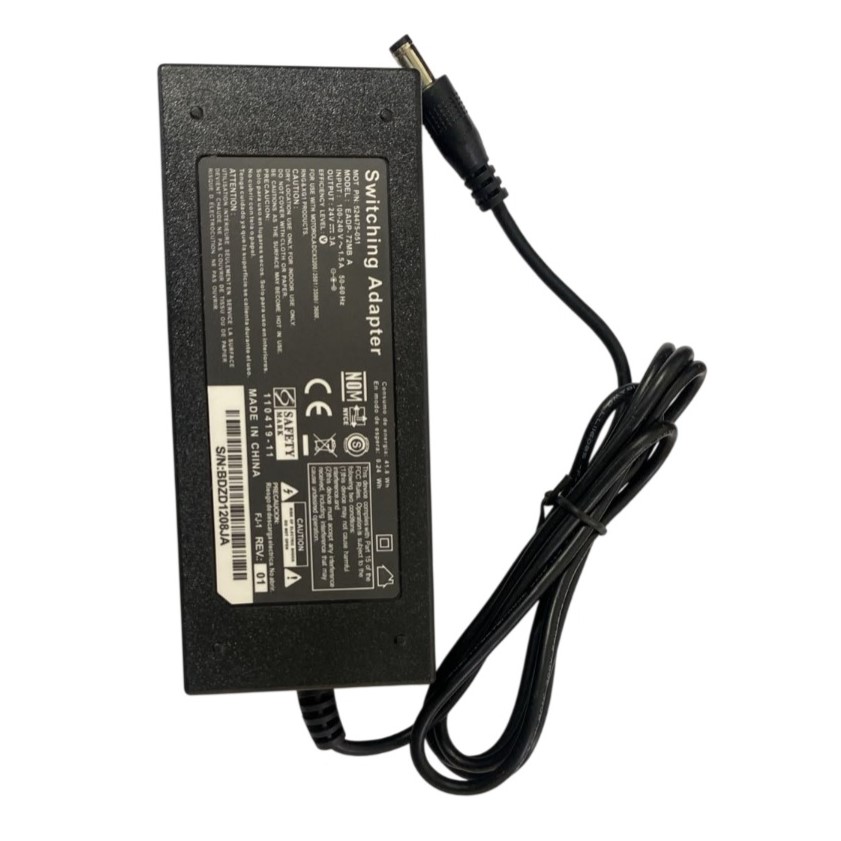

EADP-72MB A Adapter 24V 3A with Single Jack (5.5×2.5mm)
The EADP-72MB A Adapter 24V 3A is a reliable AC-to-DC switching power supply designed to deliver a stable 24V DC output with up to 3A of current. Equipped with a standard 5.5×2.5mm DC barrel connector, it is suitable for powering a wide variety of electronic devices including industrial controllers, LED lighting systems, CCTV cameras, networking equipment, and development projects. Its regulated output ensures consistent performance while helping protect sensitive electronics from voltage fluctuations.
Built with high-efficiency switching technology, this adapter features universal AC input compatibility, making it suitable for worldwide use. Integrated protection circuits help safeguard connected equipment against overload, overvoltage, and short-circuit conditions. The compact and lightweight design makes it an excellent replacement power supply for equipment requiring a regulated 24V DC source with a 5.5×2.5mm center-positive connector.
Features
- High Power Output
- Universal Input
- Standard Connector
- Durable Design
Specifications
| Specification | Detail |
| Input Voltage | 100V – 240V AC, 50/60Hz |
| Output Voltage | 24V DC |
| Output Current | 3A (3000mA) Max |
| Power Rating | 72 Watts |
| Connector Size | 5.5mm (Outer Diameter) x 2.5mm (Inner Diameter) |
| Dimensions | 32 x 54 x 128 mm |
| Cable Length | 120 cm |
Applications
- Lighting
- 3D Printing
- Audio/Video
- Security
- Automation
Package Content
- 1 x EADP-72MB A Adapter 24V 3A with Single Jack (5.5×2.5mm)
