ELECROW CrowPanel Advance 7“ HMI| ESP32-S3 AI-Powered IPS Touch Screen (800×480) With Acrylic Cas
The ELECROW CrowPanel Advance 7″ HMI is a versatile and high-performance touch screen designed for smart electronics applications.
From: 4,150.00 EGP
ELECROW CrowPanel Advance 7“ HMI| ESP32-S3 AI-Powered IPS Touch Screen (800×480) With Acrylic Case

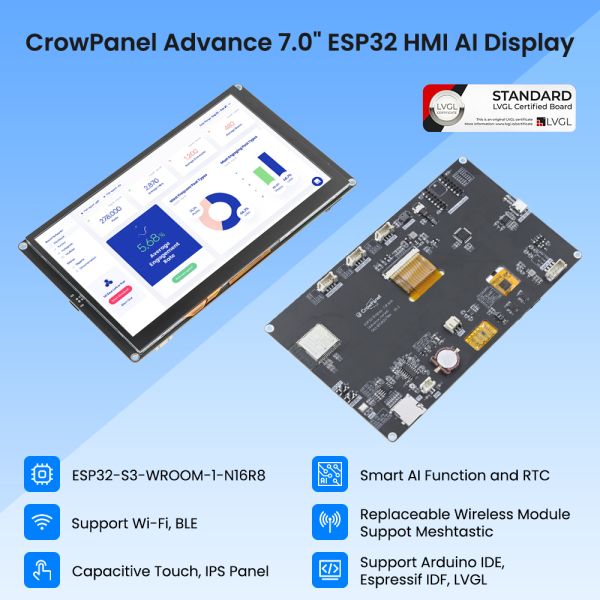

The ELECROW CrowPanel Advance 7″ HMI is a cutting-edge Human-Machine Interface display that seamlessly integrates advanced technology with ease of use. Powered by the ESP32-S3-WROOM-1-N16R8 module, it features a dual-core 32-bit LX7 microprocessor clocked at up to 240MHz, providing the computational power needed for demanding applications. This makes it an excellent choice for projects ranging from industrial automation to interactive smart home devices. The robust processing capabilities ensure smooth operation, even when handling complex tasks such as real-time data processing or graphical user interface rendering.
Features:
- Supports multiple development environments: Arduino IDE, Espressif IDF, PlatformIO, Micro Python.
- Compatible with LVGL graphics library for creating advanced user interfaces.
- Built-in LVGL demo and Arduino example for quick start.
- Rich peripheral interfaces: UART, I2C, SD card slot, battery socket, audio interfaces.
- Wireless connectivity: 2.4 GHz Wi-Fi and Bluetooth 5.0.
- Supports replaceable wireless modules for Zigbee, LoRa, NF2401, Matter, Thread, Wi-Fi 6.
- AI capabilities: voice command interaction, voice recognition, voice synthesis.
- 7-inch IPS LCD with 800×480 resolution and capacitive touch.
- Wide viewing angle of 178 degrees.

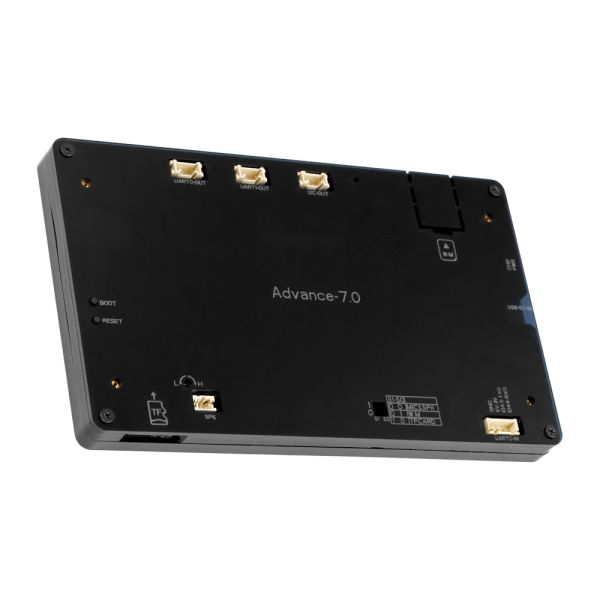

- Comes with an acrylic case for protection and easy mounting.
Specifications:
|
Main Chip-ESP32-S3-WROOM-1-N16R8 |
|
|
CPU/SoC |
high-performance Xtensa 32-bit LX7 dual-core processor, with up to 240MHz |
|
System Memory |
512KB SRAM、8M PSRAM |
|
Memory |
16M Flash，384KB ROM |
|
Development Language |
C/C++ |
|
Development Environment |
ESP-IDF、Arduino IDE、PlatformIO、LVGL |
|
Screen |
|
|
Size |
7.0 inch |
|
Diver IC |
SC7277 |
|
Resolution |
800×480 |
|
Display Panel |
IPS Panel |
|
Touch Panel |
Capacitive Single Touch |
|
Viewing Angle |
178° |
|
Brightness |
400 cd/m²(Typ.) |
|
Color Depth |
16-bit |
|
Wireless Communication – Onboard Antenna |
|
|
WiFi |
Support 2.4GHz, 802.11a/b/g/n |
|
Bluetooth |
Support Bluetooth 5.0 and BLE |
|
Other |
Zigbee、LoRa、nRF2401、Matter、Thread and Wi-Fi 6 (Optional) |
|

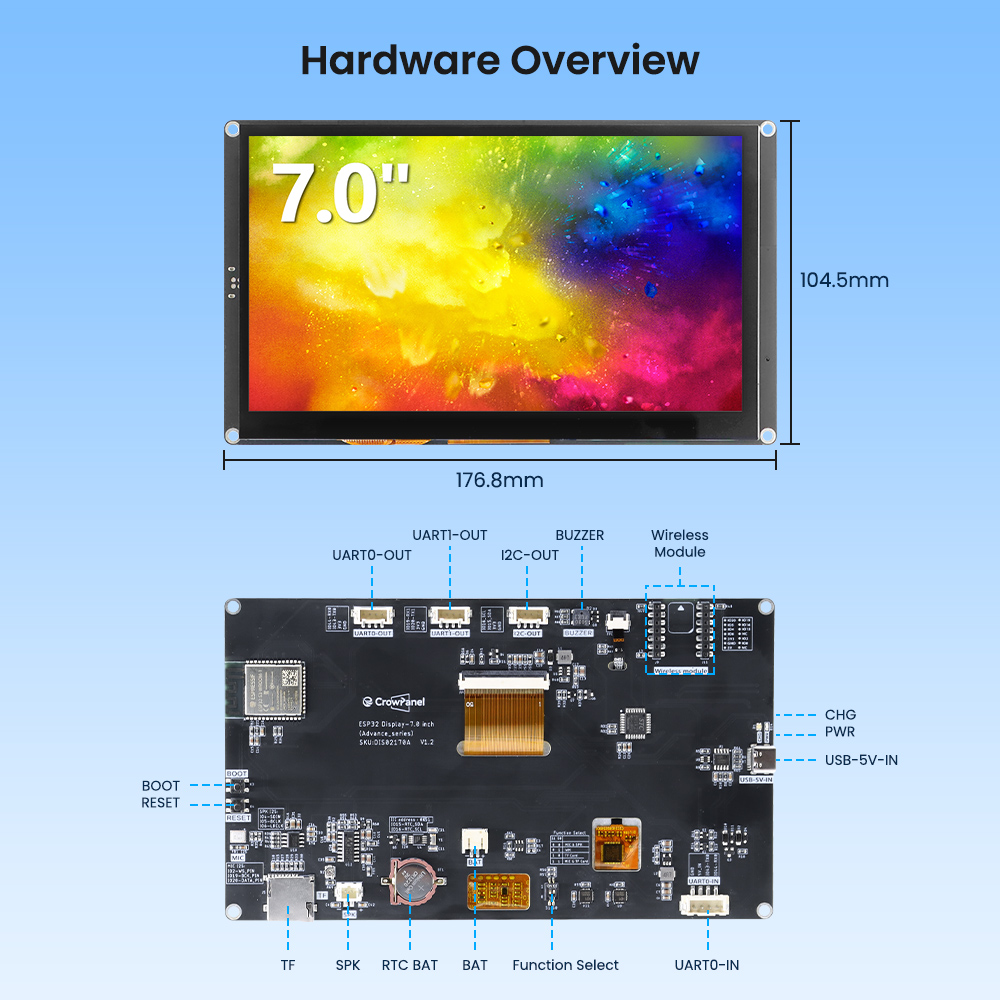

Interface/Function |
|
|
Interface |

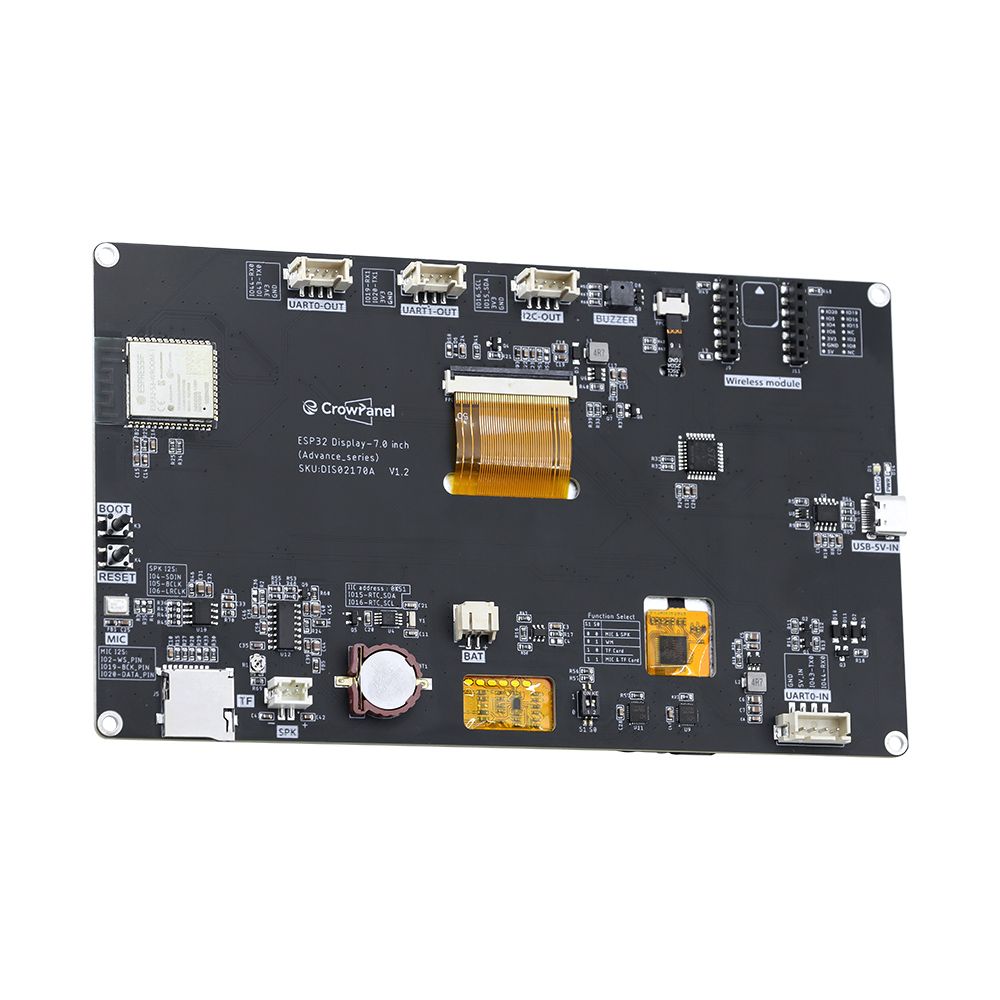

USB port, UART, I2C, SD card slot, battery socket, speaker port, microphone, etc. |
|
Function |
RTC clock, audio amplifier, volume control, battery charge management, USB to UART, etc. |
|
Button/LED Indicator |
|
|
Reset Button |
Yes, press to reset the device |
|
Boot Button |
Yes, press and hold the power button to burn the program |
|
PWR |
Power indicator |
|
CHG |
Lithium battery charging status, completion indication |
|
Other |
|
|
Installation method |
Back hanging, fixed hole |
|
Operating temperature |
-20~70 °C |
|
Storage temperature |
-30~80 °C |
|
Power Input |
5V/2A, USB or UART terminal |
|
Active Area |
156mm x 87mm |
|
Dimensions |
181.26 x 108.36 x 16mm |
Configuration:
Applications:
- Industrial automation.
- Smart city.
- Smart home.
- Medical equipment.
- Agricultural technology.
- Environmental monitoring.
- Energy management.
- Logistics and warehousing.
- Retail and catering.
- Education and research.

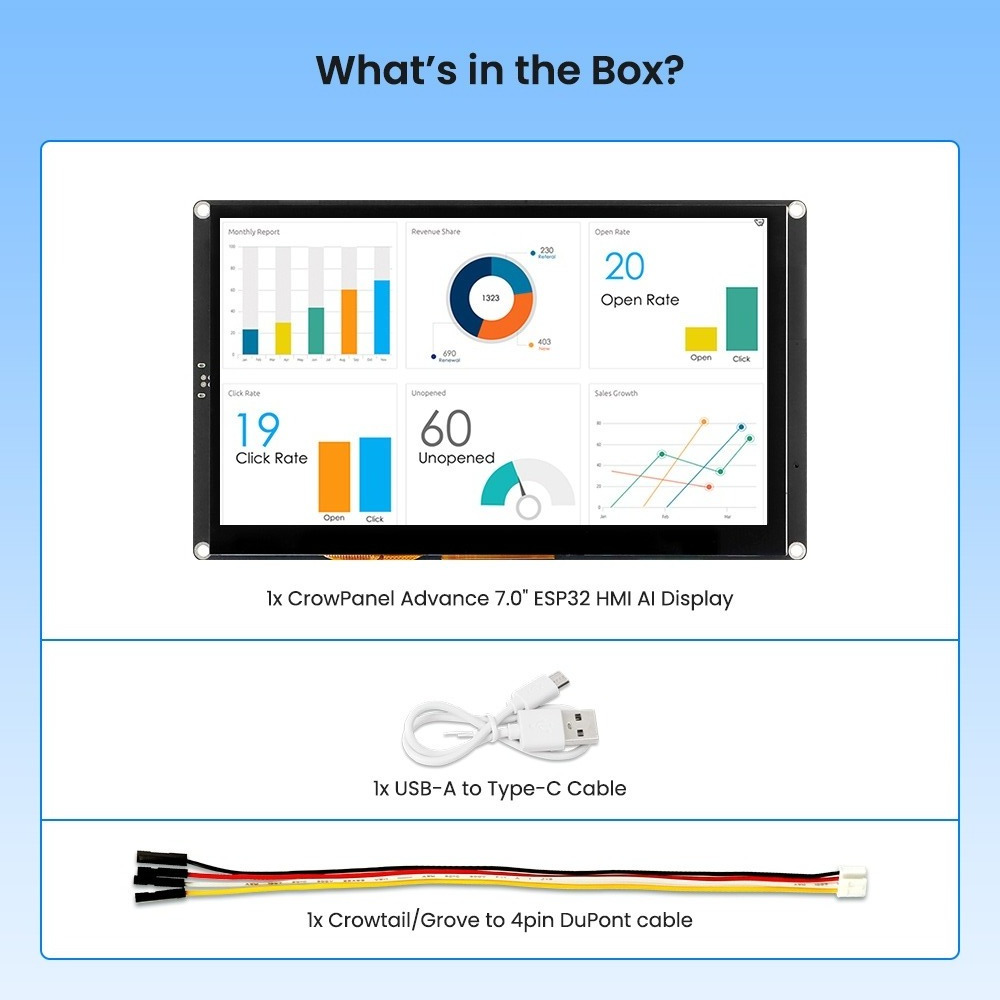

Package Include:
Documents:
- Wiki
- Tutorial from makerguides
- ESP32-S3 Datasheet
- Elecrow CrowPanel Advance 7.0 GitHub Repository
- ESP Boards Review of CrowPanel Advance 7.0
