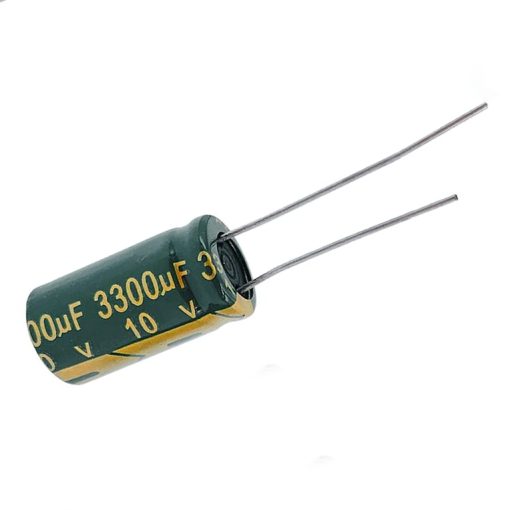

Electrolytic Capacitor 3300µF 10V
The Electrolytic Capacitor 3300µF 10V is an electrolytic capacitor designed for energy storage, filtering, and voltage smoothing in low-voltage DC circuits. With a high capacitance value of 3300 microfarads and a voltage rating of 10 volts, it is suitable for power supply circuits, audio equipment, and various electronic applications requiring stable voltage and reduced ripple. This capacitor typically comes in a radial leaded cylindrical package, making it easy to mount on printed circuit boards (PCBs). Its large capacitance helps in maintaining consistent performance during voltage fluctuations or transient conditions.
Features
- High capacitance of 3300µF for effective energy storage and filtering.
- Rated voltage of 10V, suitable for low-voltage DC applications.
- Electrolytic type for high capacitance in compact size.
- Radial lead design for easy PCB mounting.
- Helps reduce voltage ripple and smooth power supply output.
- Long operational life and stable performance.
- Ideal for audio circuits, power supplies, and general electronic use.
Specifications
- Capacitor Type: Electrolytic Capacitor
- Datasheet: Capacitor 3300µF 10V
- Polarity: Polarized (positive and negative leads)
- Mounting Type: Through Hole
- Capacitance: 3300 µF
- Rated Voltage (VDC): 10V
- Tolerance: ±20%
- Operating Temperature Range: –40°C to +105°C
- Ripple Current: ~1200–1500 mA RMS @ 120Hz
- ESR (Equivalent Series Resistance): ~0.05 – 0.1 Ω @ 100 kHz
- Leakage Current: ≤ 0.01CV or 3µA (whichever is greater) after 2 minutes (C = capacitance in µF, V = rated voltage in V)
- Dimensions:
- Diameter: 13mm
- Height: 21mm
- Lead Spacing: 5mm
- Lifespan: ~2000–5000 hours at 105°C
Applications
- Power supply filtering to reduce voltage ripple.
- Energy storage in low-voltage DC circuits.
- Smoothing output in rectifier circuits.
- Decoupling and noise suppression in audio amplifiers.
- Timing and delay circuits in electronic devices.
- Used in LED drivers, adapters, and small motor controls.
- Suitable for general-purpose electronic and DIY projects.
Package Contents
- 1 X Electrolytic Capacitor 3300µF 10V
