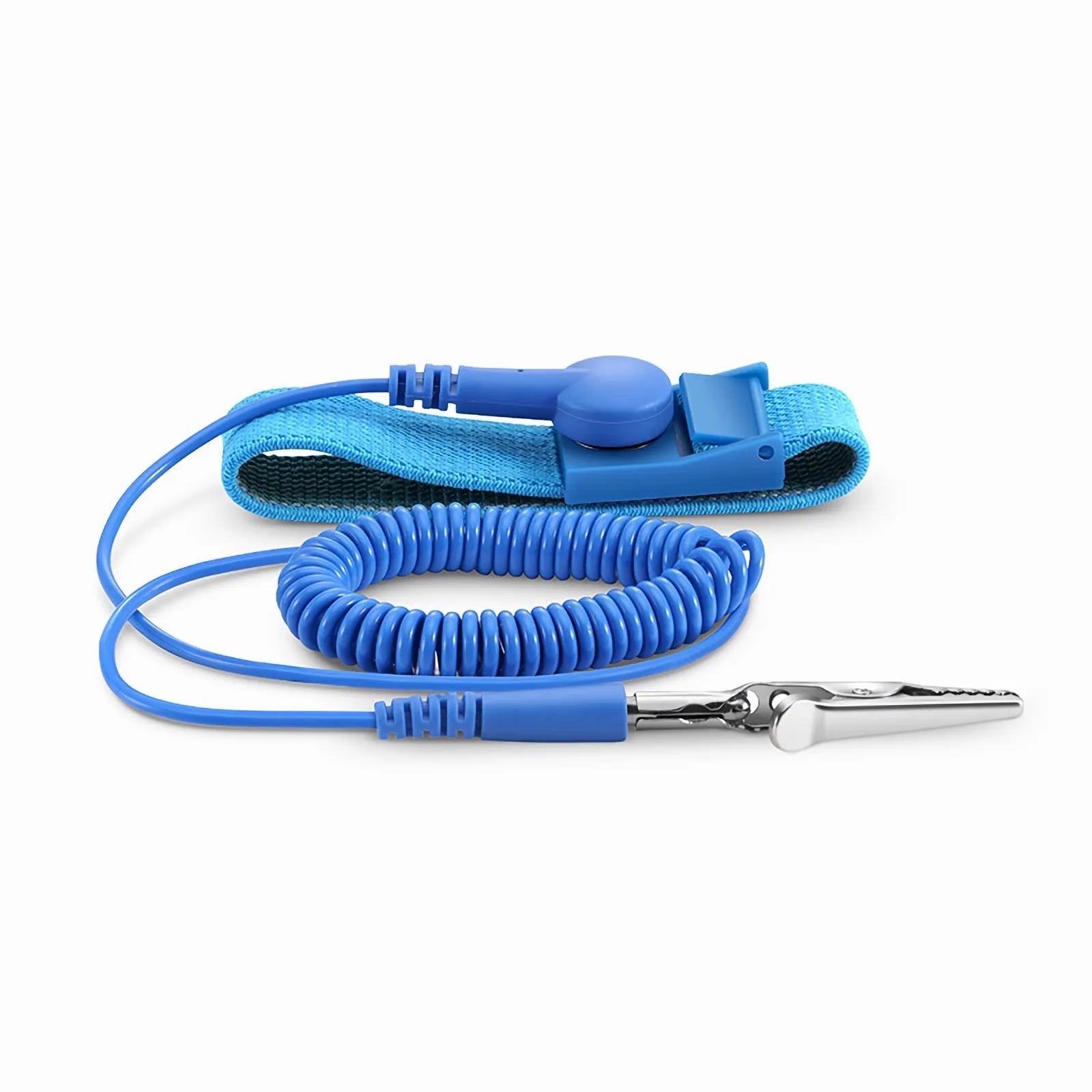

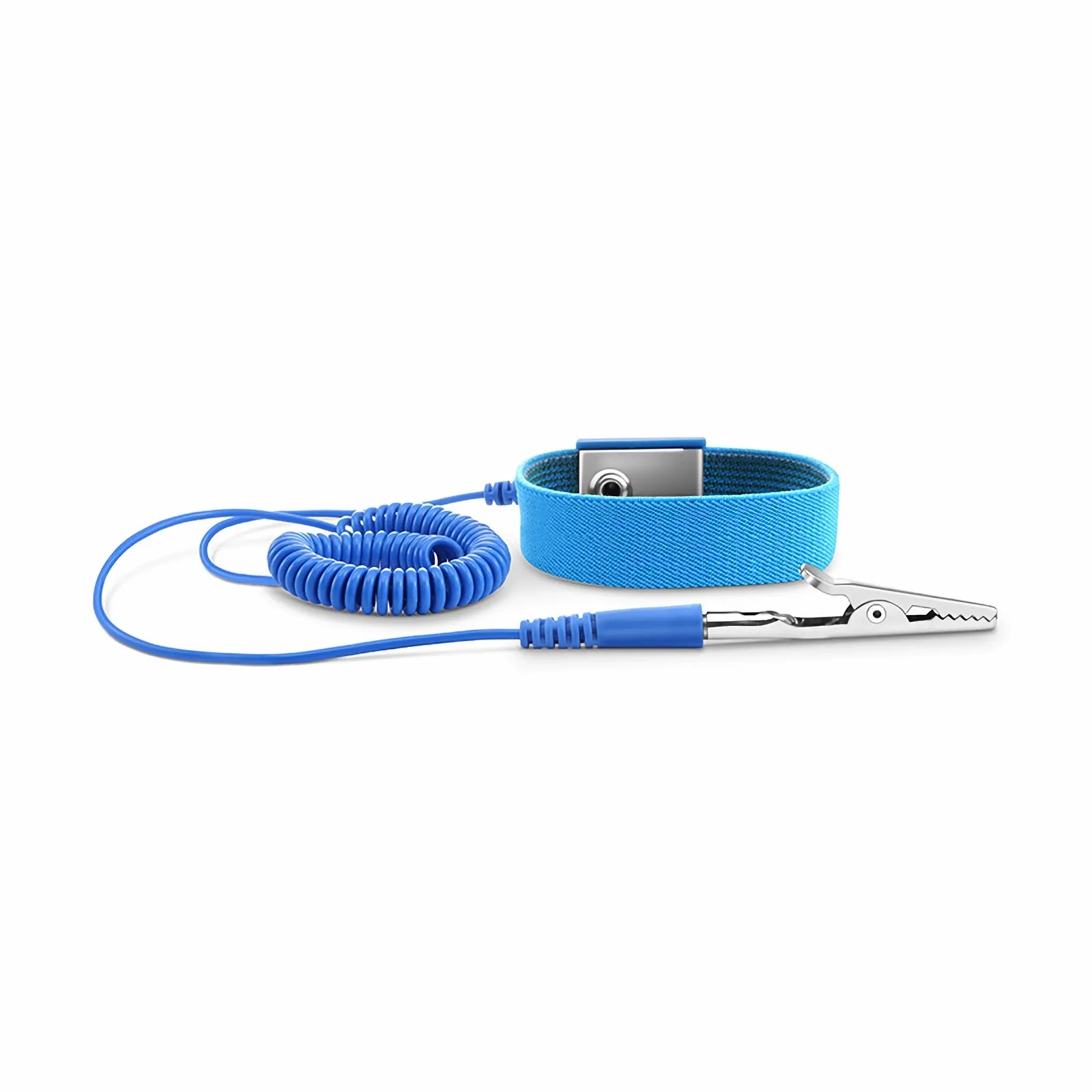

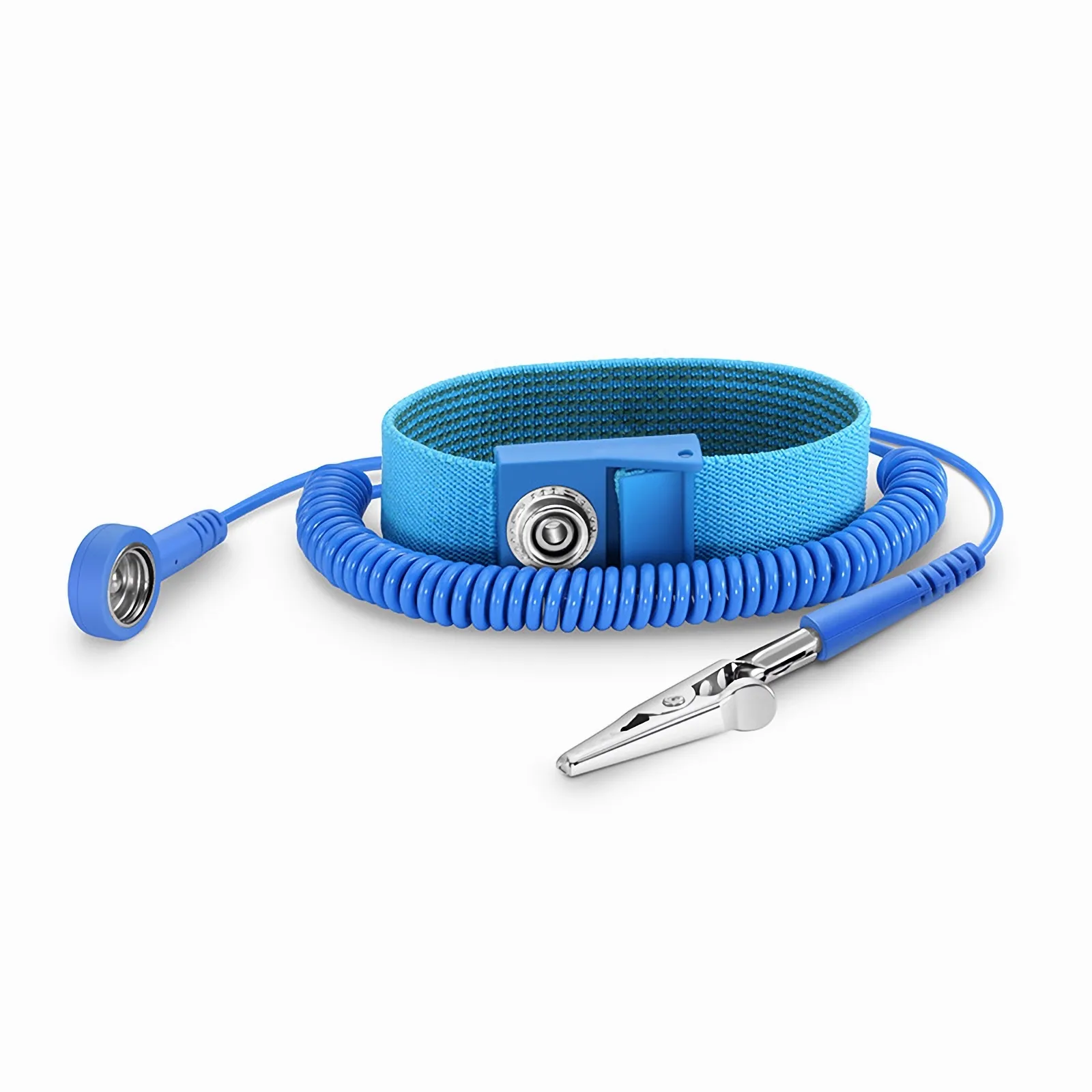

ESD Anti-Static Wrist Strap with Grounding Wire & Aligator Clip
The ESD Anti-Static Wrist Strap is designed to provide a controlled path for dissipating electrostatic charge from the user’s body while handling sensitive electronic components. Static electricity generated through normal movement can accumulate on the human body and potentially discharge into electronic circuits, causing immediate or latent damage.

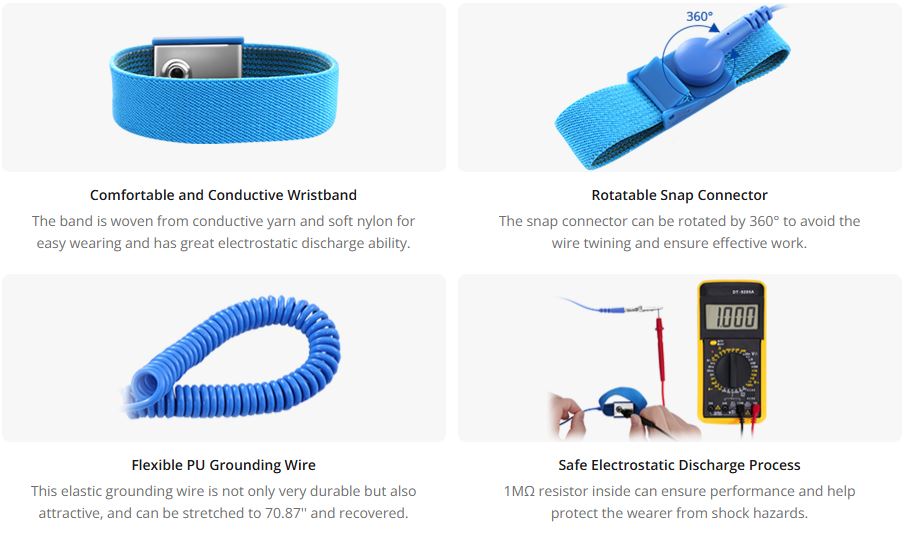

Features:
- ESD anti-static wrist strap.

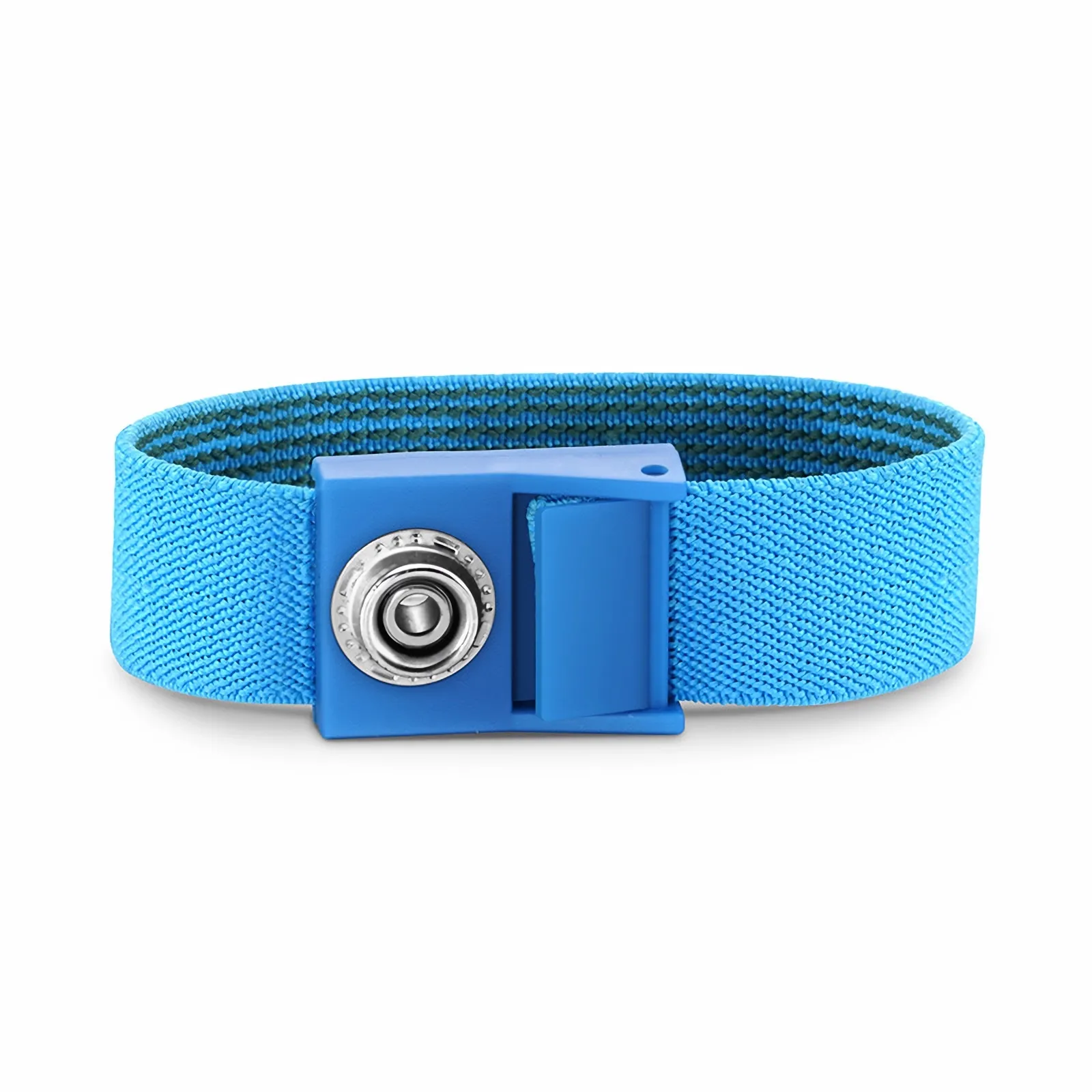

- Adjustable elastic wristband.
- Conductive wristband construction.
- Coiled grounding cable.
- Built-in 1 MΩ safety resistor.
- Detachable snap connector.

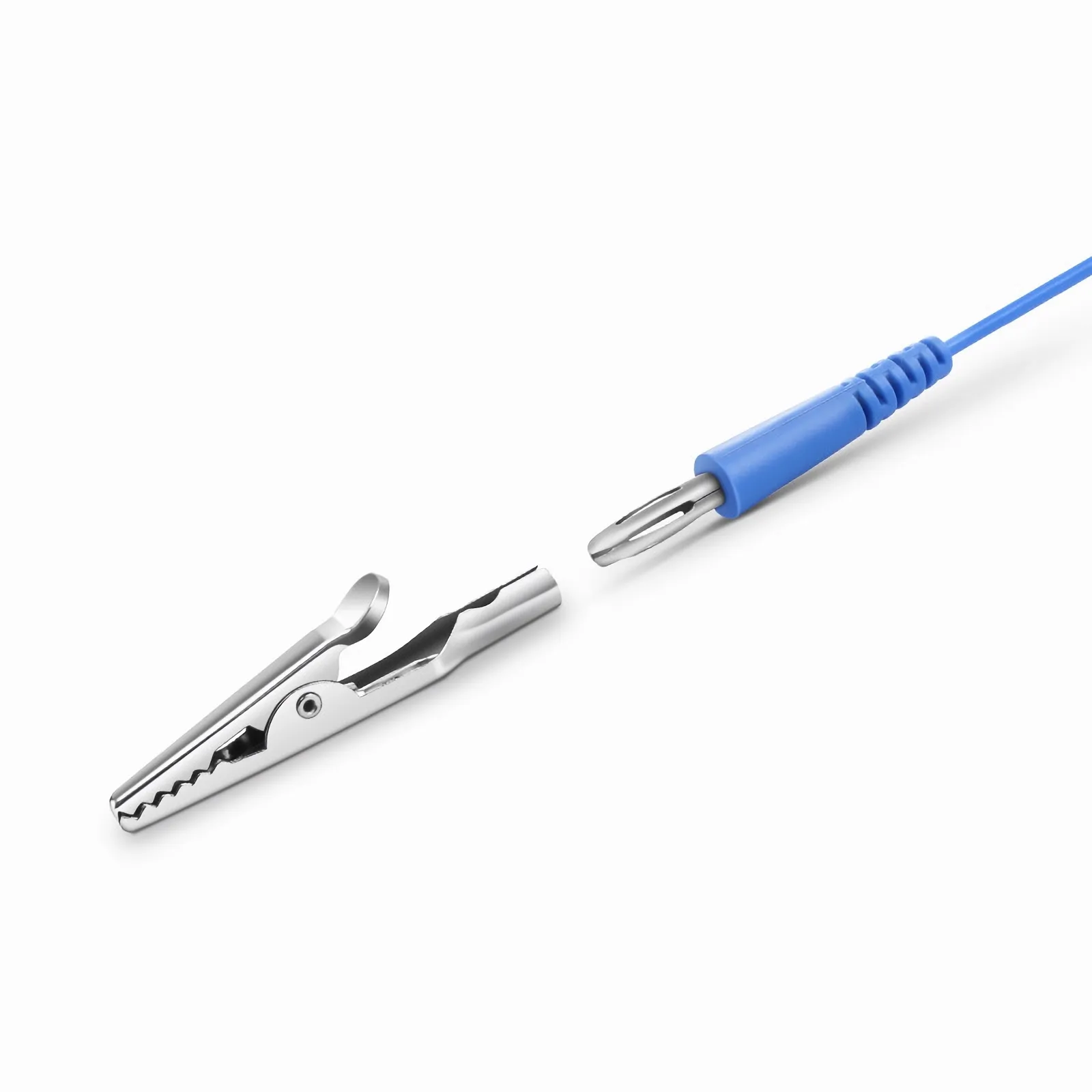

- Metal alligator grounding clip.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | ESD Anti-Static Wrist Strap |
| Wristband Type | Adjustable Elastic Band |
| Wristband Color | Blue |
| Wristband Material | Elastic Nylon Woven with Conductive Fibers |
| Grounding Cable Type | Coiled Cable |
| Cable Material | Polyurethane |
| Safety Resistance | 1 MΩ |
| Grounding Connector | Metal Alligator Clip |
| Alligator Clip Length | 51 mm |
| Secondary Connector | Standard Banana Plug |
| Wristband Connection | Snap Connector |
| Discharge Time | Less than 0.1 seconds |
| Power Requirement | None |
| Application | Electrostatic Discharge Protection |

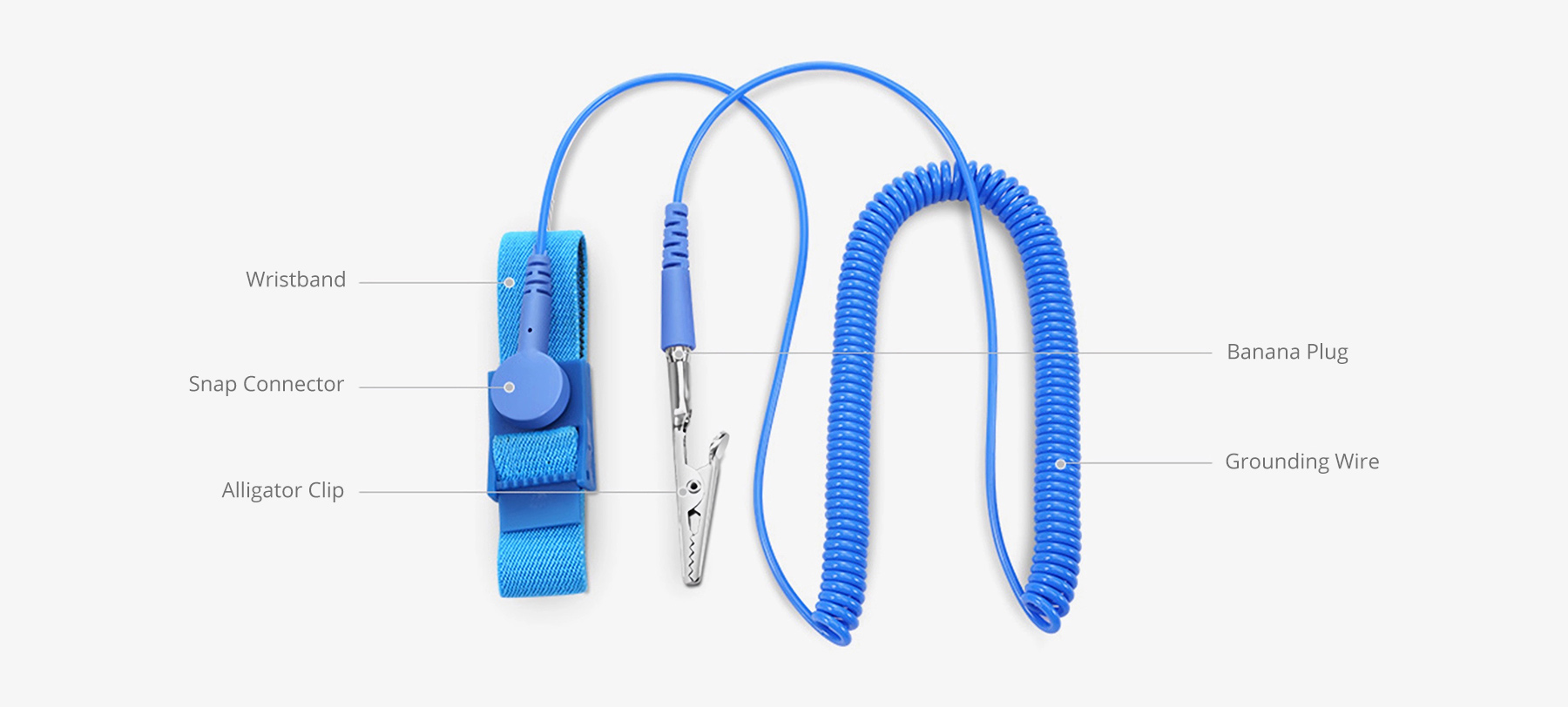

Configuration:
Applications:
- PCB assembly and repair.
- Electronics laboratory work.
- Computer assembly and maintenance.
- PC component installation.
- Micro-soldering.
- SMD component handling.
- Semiconductor handling.
- Server maintenance.
- Motherboard repair.
- RAM and processor installation.
- Electronics testing and servicing.
- ESD-controlled workstations.
- Industrial electronics assembly.
- Handling electrostatic-sensitive devices.
Package Include:
- 1x Adjustable ESD Anti-Static Wrist-Strap.
- 1x Coiled Grounding Wire with Snap Connector.
- 1x Detachable Metal Alligator Clip.
