| Model Parameters | |
|---|---|

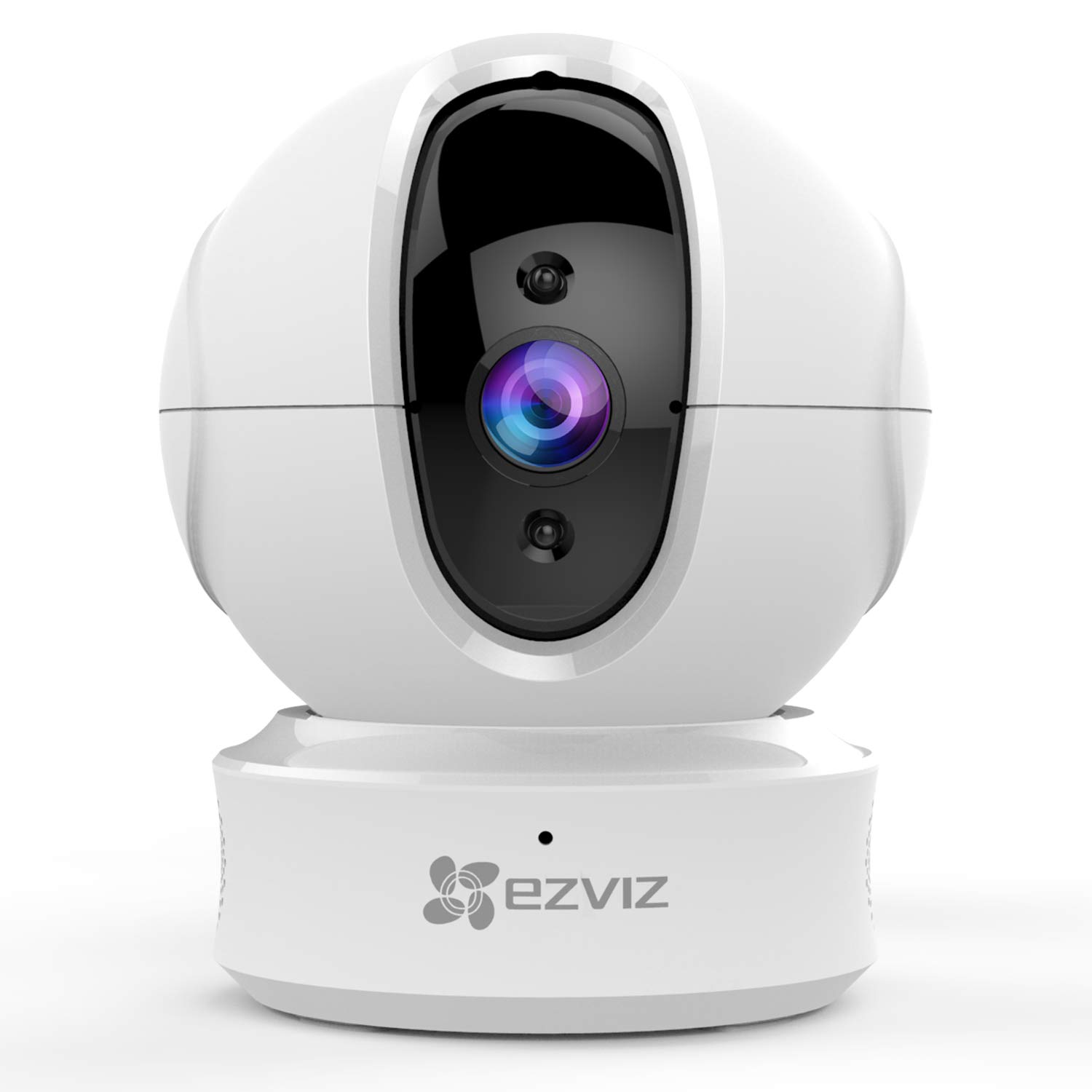

| Name | C6CN |
| Model | CS-CV246-A0-1C2WFR |
| Camera | |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F2.2, view angle:82° (Horizontal), 94°(Diagonal) |
| PT Angle | Pan: 340°, Tilt: 120° |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.264 |
| H.264 Type | Main profile |
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate |
| Auto Bit Rate | Self-adaptive |
| Image | |
| Max. Resolution | 1920 x 1080 |
| Frame Rate | Max. 15fps; Self-Adaptive during network transmission |
| Network | |
| Smart Alarm | Motion detection |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| General Features | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Max. Bitrate | 2Mbps |
| Interface | |
| Storage | Micro SD card (Max. 256G) |
| Power | Micro USB |
| Network | RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| Wi-Fi | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| General | |
| Power Supply | DC 5V/1A |
| Power Consumption | Max. 5.0W |
| IR Range | Max. 10 meters (32.8ft) |
| Product Dimensions | 87.7mm x 87.7mm x 112.7mm (3.45〃 x 3.45〃 x 4.43〃) |
| Packaging Dimensions | 103mm x 103mm x 188mm (4.06〃 x 4.06〃 x 7.40〃) |
| Weight | 260g(0.57lbs) |
