F30U60DN Diode Array 1 Pair Common Cathode 600V 30A Through Hole TO-3P
The F30U60DN is a high-performance ultra-fast recovery rectifier diode array designed with a common cathode configuration in a TO-3P through-hole package. It features low forward voltage drop, soft recovery characteristics, and high surge current capability, making it suitable for demanding power electronics applications. This diode is optimized for high-frequency switching circuits where efficiency and thermal stability are important.
Built using advanced planar passivation FRED technology, the F30U60DN delivers reliable operation in industrial and commercial power systems. It is widely used in freewheeling, snubber, clamp circuits, power factor correction systems, ultrasonic equipment, inverters, choppers, and UPS applications. Its excellent thermal performance and fast reverse recovery time help reduce switching losses and improve overall system efficiency.
Features:
- Ultra-fast recovery performance.
- Soft recovery characteristics.
- Low forward voltage drop.
- High surge current capability.
- Low leakage current.
- Suitable for high-frequency switching.
- Common cathode dual diode configuration.
- Excellent thermal stability.
- Through-hole TO-3P package.
- Reliable operation in power applications.
Specifications:
| Parameter | Value |
|---|---|
| Part Number | F30U60DN |
| Device Type | Ultra Fast Recovery Diode Array |
| Configuration | Dual Diode Common Cathode |
| Package Type | TO-3P / TO-3PB |
| Mounting Type | Through Hole |
| Repetitive Peak Reverse Voltage (VRRM) | 600V |
| Average Forward Current (IF(AV)) | 30A |
| Peak Surge Forward Current (IFSM) | 240A |
| Maximum Repetitive Forward Current (IFRM) | 60A |
| Forward Voltage Drop (VF) | 1.6V Max |
| Reverse Leakage Current (IR) | 20µA Max |
| Reverse Recovery Time (trr) | 35ns Max |
| Junction Temperature | 175°C Max |
| Storage Temperature | -55°C to +175°C |
| Thermal Resistance Junction-to-Case | 0.8°C/W |

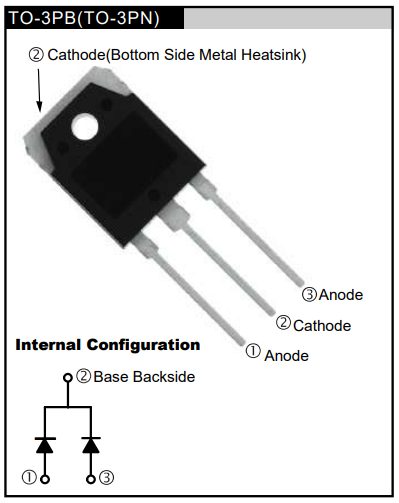

Pinout:
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | Anode 1 | First diode anode |
| 2 | Cathode | Common cathode connection |
| 3 | Anode 2 | Second diode anode |
Applications:
- Switching power supplies (SMPS).
- UPS systems.
- Inverter circuits.
- Ultrasonic cleaners and welders.
- PFC circuits.
- Converter and chopper circuits.
- Welding equipment.
- Industrial power supplies.
- Freewheeling and snubber circuits.
- High-frequency rectification systems.
