F60UP30DN Diode Array 1 Pair Common Cathode 300V 60A Through Hole TO-3P
The F60UP30DN is a high-performance dual ultrafast recovery rectifier diode designed with a common cathode configuration. Built using advanced FRED (Fast Recovery Epitaxial Diode) technology, it provides excellent switching performance, low forward voltage drop, and minimal recovery losses, making it highly efficient in demanding power applications.
This device is optimized for high-frequency switching environments such as power converters, welding machines, and UPS systems. Its soft recovery characteristics help reduce electromagnetic interference (EMI), while its high current handling capability and strong thermal performance ensure reliability in heavy-duty industrial and power electronics applications.
Features:
- Ultrafast recovery performance.
- Soft recovery characteristics.
- Low forward voltage drop.
- High surge current capability.
- Low leakage current.
- High efficiency in switching applications.
- Dual diode with common cathode configuration.
- Robust thermal performance.
Specifications:
| Specification | Value |
|---|---|
| Device Type | Diode Array, Common Cathode |
| Reverse Voltage (V_RRM) | 300V |
| Forward Current (I_F) | 60A |
| Package Type | TO-3P (Through Hole) |
| Peak Forward Voltage Drop | 1.1V |
| Operating Temperature Range | -40°C to +150°C |
| Mounting Type | Through Hole |
| Peak Reverse Recovery Time | 250ns (max) |
| Thermal Resistance Junction to Case | 2°C/W |

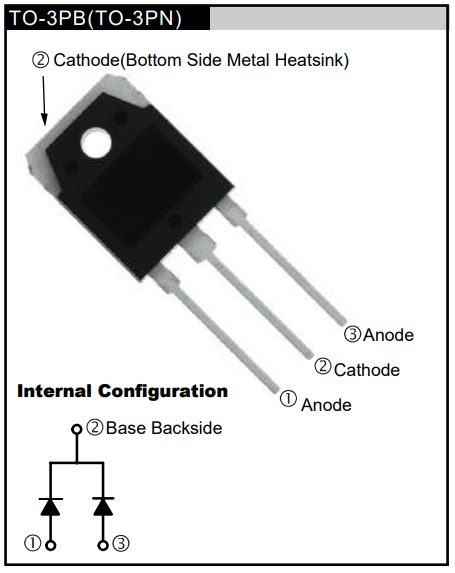

Pinout:
Applications:
- Switch Mode Power Supplies (SMPS).
- Power inverters.
- Uninterruptible Power Supplies (UPS).
- Welding equipment.
- Power factor correction (PFC) circuits.
- DC-DC converters.
- Snubber and clamp circuits.
- Industrial power systems.
Package Included:
- 1x F60UP30DN Diode Array 1 Pair Common Cathode 300V 60A Through Hole TO-3P.
