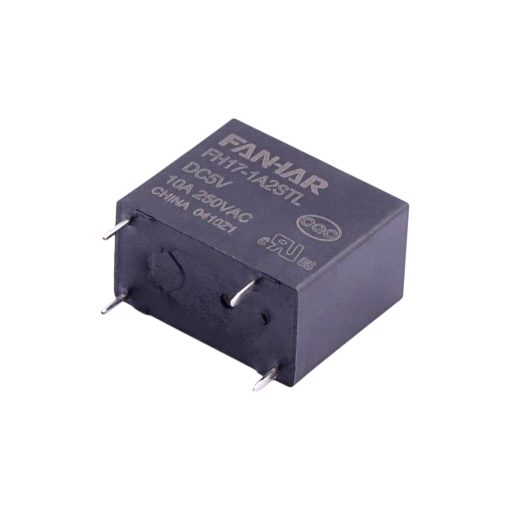

FANHAR Power Relay FH17-1A2STL-DC5V 10A 4 Pin
FH17 Power Relay: 10A switching, 200mW sensitivity, 4kV breakdown voltage, 105°C tolerance, RoHS compliant. Ideal for smart switches, sockets, home appliances.
35.00 EGP
In stockSKU 3496300094547
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
FANHAR Power Relay FH17-1A2STL-DC5V 10A 4 Pin
The FANHAR FH17-1A2STL-DC5V is a compact, high-performance power relay designed for reliable applications in electronic circuits. This electromechanical power relay uses a small control current (5V DC coil) to control larger loads up to 10A at 250VAC, making it ideal for automation, power control, and protection circuits in various electronic devices.
Features
- 10A switching capability for reliable performance
- Highly efficient magnetic circuit for high sensitivity with a 200mW coil
- Breakdown voltage of 4kV between coil and contacts
- Creepage distance and air distance greater than 6.5mm for enhanced safety
- Operates effectively in ambient temperatures up to 105°C
- UL insulation system: Class F
- Environment-friendly product (RoHS compliant)

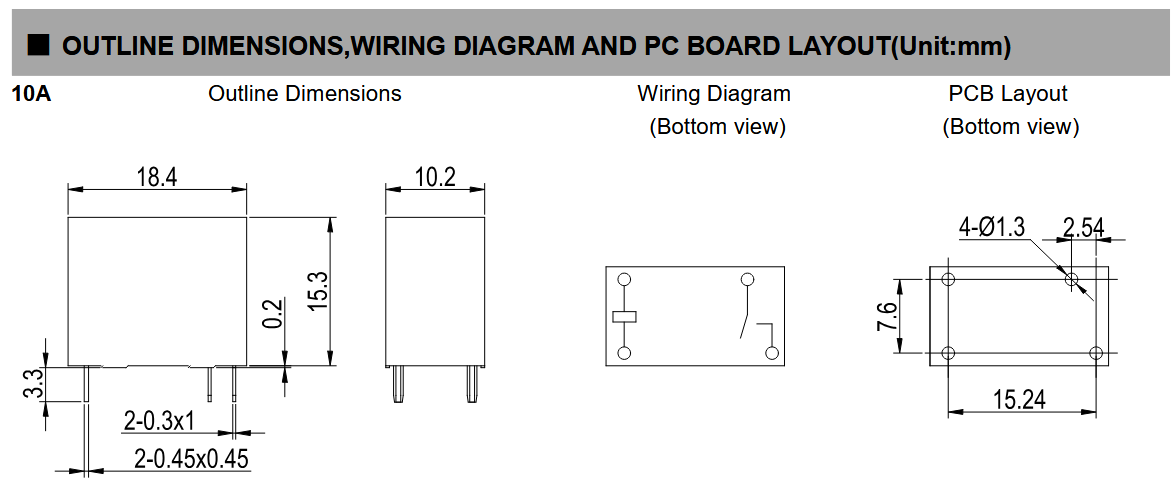

- Compact outline dimensions: (18.4×10.2×15.3)mm
Applications
- Smart Home Systems
- Home Appliances
- Power Control
- Industrial Automation
Documents
| Weight | 7 g |
|---|
