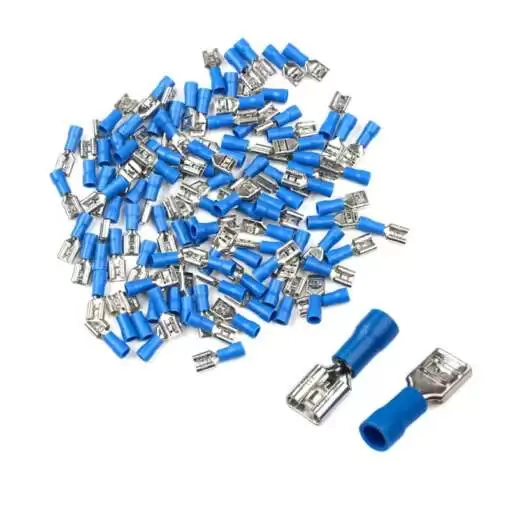

The FDD2-250 insulated female blade crimp terminal is designed to provide secure and efficient connections for 16-14 AWG (1.5-2.5 mm²) wires. Its insulated sleeve offers protection against short circuits and accidental contact, ensuring safety and reliability in electrical systems. The terminal is compatible with standard 6.35 mm (0.250 inch) male blade connectors, making it ideal for various electrical applications such as automotive, industrial, and household wiring.
Features:
- Made from high-quality materials such as tin-plated copper, ensuring low resistance and high efficiency.
- Quick and simple crimping process allows for fast installation without the need for soldering.
- Designed to fit 6.35 mm (0.250 inch) male blade terminals for universal compatibility.
- Facilitates easy identification of wire gauge and terminal type during installation.
- Suitable for automotive, industrial, marine, and household electrical applications.
- Wire Compatibility 16-14 AWG (1.5-2.5 mm²).
- PVC or Nylon insulation for mechanical protection and electrical insulation.
- Comes in packs of 10 pieces for bulk or project use.
Specifications:
- Terminal Type: Female Blade Crimp Terminal
- Model NO: FDD2-250
- Color: Yellow
- Wire Gauge: 16-14AWG (1.5-2.5 mm²)
- Blade Width: 6.35 mm (0.250 inch)
- Insulation Material: PVC/Nylon
- Conductor Material: Tin-plated copper
- Voltage (Max.): 600V
- Current(Max.): 15A
- Temperature Rating: 75°C to 105°C
- Quantity: 10 pieces per package
Applications:
- Automotive Wiring.
- Industrial Equipment.
- Marine Applications.
- Household Wiring.
- Renewable Energy Systems.
- HVAC Systems.
- Audio & Lighting Installations.
Package Contents:
1X FDD2-250 Insulated Female Blade Crimp Terminal (10 pieces).
