Female Mini-B USB Connector Right-Angle 5Pins Dip Solder
This durable Mini USB Type‑B receptacle offers a reliable interface for USB 2.0 data (480 Mbps) and power (up to 1 A) in compact electronic devices. Featuring a through‑hole DIP design with 5 pins and robust metal housing, it resists over 5000 insertions and ensures secure PCB mounting for board-level USB implementations.
Features
- USB 2.0 compliant with data rates up to 480 Mbps.
- Rated for up to 1.5 A current and 30 V DC voltage.
- Five-position receptacle (V_BUS, D−, D+, ID, GND) per USB mini‑B standard.
- Rated for at least 5000 mating cycles for long-term reliability.
- Through-hole DIP package for easy solder and strong board retention.
- Metal shell provides mechanical robustness and EMI protection.

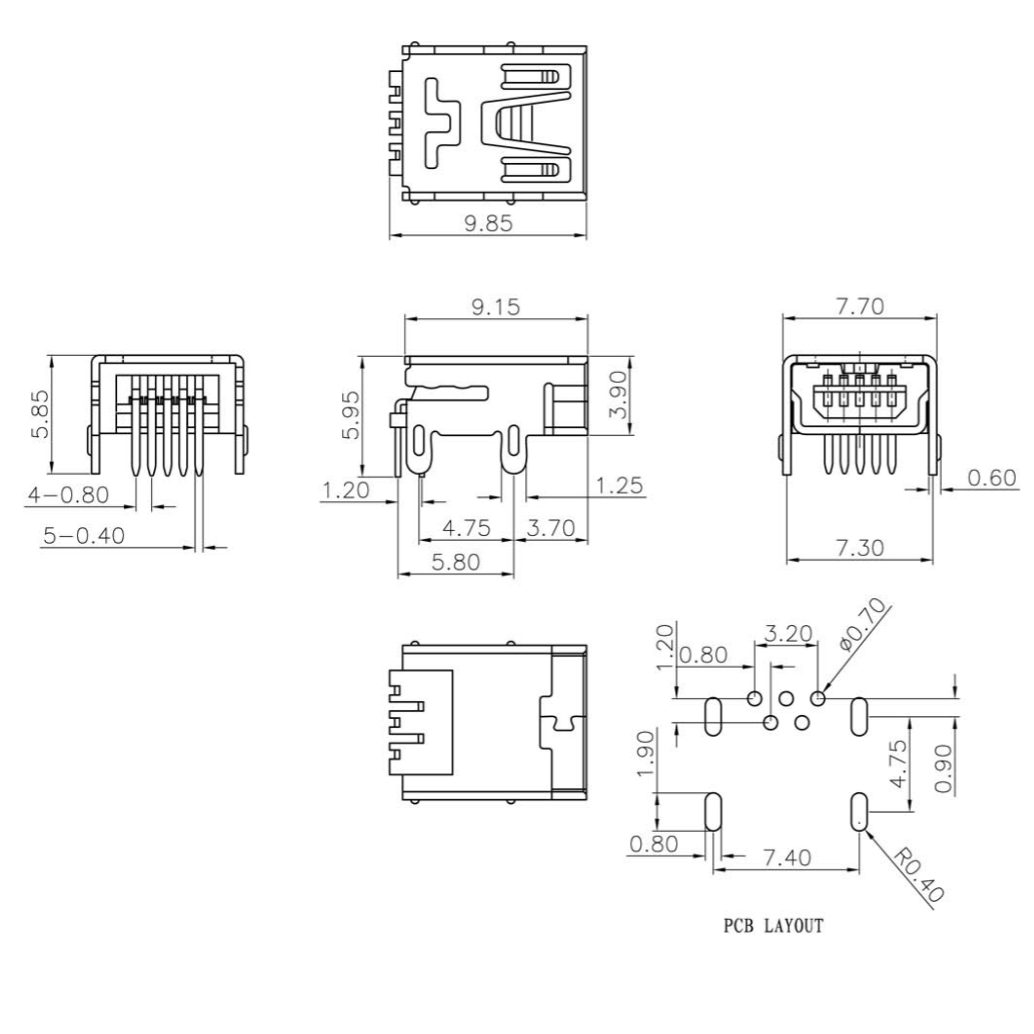

Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Shenzhen kinghelm Electronics Co., LTD |
| Model | KH-MINI-DIP90-5P-Cu |
| Connector Type | Mini USB Type-B Female |
| Standard | USB 2.0 |
| Pins | 5 (V_BUS, D–, D+, ID, GND) |
| Mounting Style | 5P Through-hole DIP, 90°, Right Angle |
| Data Rate | 480 Mbps (USB 2.0) |
| Rated Current | 1.5 A |
| Rated Voltage | 30 V DC |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
| Durability | ≥ 5,000 mating cycles |
| Operating Temperature | –25 °C to +85 °C |
Applications
- PCB-mounted USB ports on cameras, MP3 players, PDAs.
- USB interface for embedded systems, dev‑boards, or modules.
- Data‑logging, firmware‑update, or charging ports.
- Field‑replaceable USB sockets in repairable electronics.
- OEM projects requiring standard USB connectivity.
Package Contents
- 1x Female Mini-B USB Connector Right-Angle 5Pins Dip Solder.
