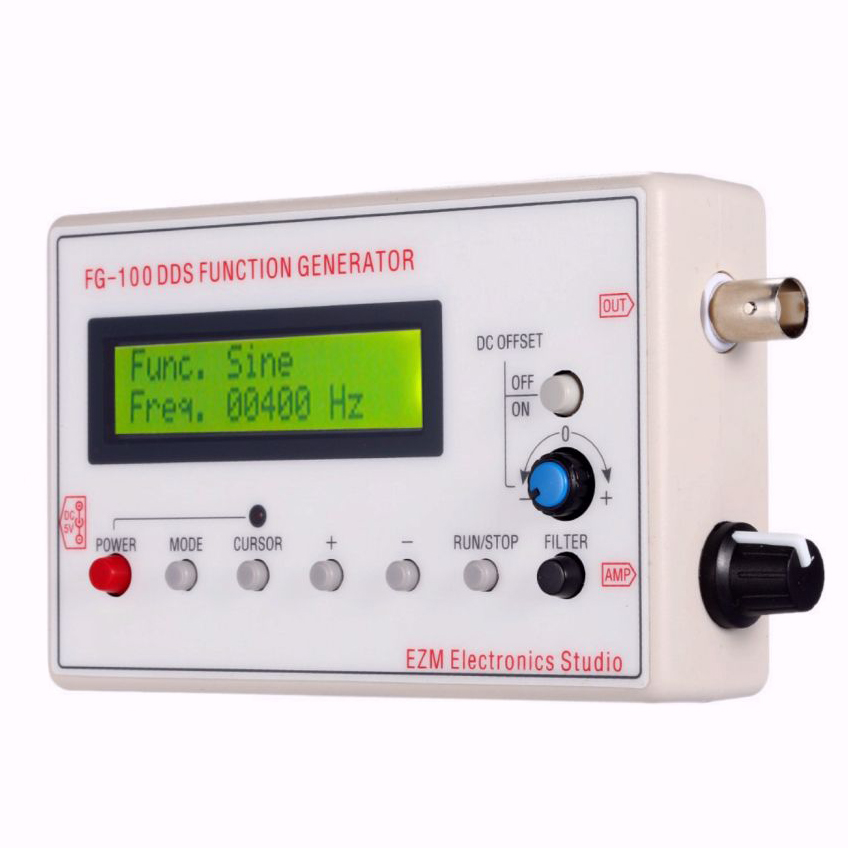

The FG-100 DDS Function Signal Generator is a versatile and affordable tool for learners and engineering students. It generates various waveforms, including sine, square, triangular, and sawtooth, with a frequency range of 1Hz to 500kHz. With its compact size and simple operation, it’s perfect for testing and debugging electronic circuits. The FG-100 DDS offers precise and stable signals, making it suitable for oscilloscope calibration. It also features a filter for customized output.

Main Features:

• Compact size, simple operation, and easy portability.
• Powered by USB adapter or lithium battery pack.
• Ideal for testing and debugging electronic circuits.
• Measures audio amplifier frequency and impulse response.
• Accurate DDS with stable frequency for oscilloscope calibration.
• Square wave output for oscilloscope attenuator and probe adjustments.

Main Technical Specification:

• Frequency Range: 1Hz-500kHz (sine wave), 1Hz-20kHz (other waveforms). Amplitude decreases above 200kHz.
• Resolution: 1Hz.
• Output Waveforms: Sine, square, triangle, forward/reverse sawtooth waves.
• Sine Wave Distortion: <1% below 1kHz, <0.5% above 1kHz.
• Output Range: Max ±10V (p-p).
• Output Impedance: 50Ω.
• DC Offset: Max ±10V, with off function.
• Filter: On/Off for better waveform adaptation.
• Power Supply: DC 3.5-10V, recommended DC5V adapter or 3.7V lithium battery for portable use.

Dimensions

Explainer Video

Shipping List

• 1 x Basic Function Generator – 1Hz ~ 500KHz
• 1 x DC Jack to USB-A Power Cable
