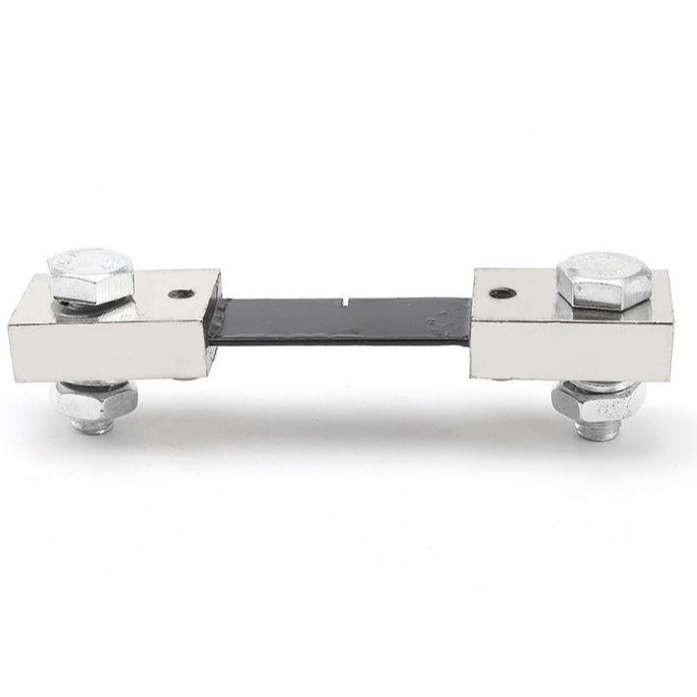

FL-2 100A SHUNT RESISTANCE
The FL_2 100A Shunt Resistance is a precision current measurement device designed to accurately convert high DC current into a measurable low-voltage signal. It operates on the principle of generating a standardized 75mV voltage drop at full-scale current (100A), enabling accurate monitoring when used with analog or digital ammeters.
Features:
- 100A current rating with 75mV output drop
- Accuracy class 0.5 for reliable current sensing
- Durable copper + manganin construction

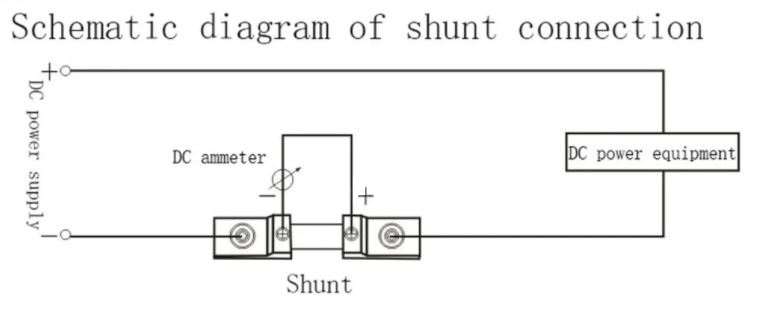

- Supports external analog/digital measurement
- Overload capacity: 120% rated current for 2 hours
- Ideal for DC power systems, solar chargers, battery monitoring
Specifications:
| Parameter | Value |
|---|---|
| Model | FL-2 |
| Type | DC Current Shunt Resistor |
| Rated Current | 100A |
| Voltage Drop | 75mV |
| Accuracy Class | 0.5 |
| Resistance Material | Manganin Alloy |
| Terminal Material | Copper |
| Operating Temperature | -40°C~+60°C |
| Humidity Range | ≤95% RH (35°C non-condensing) |
| Overload Capacity | 120% rated current for 2 hours |
| Mounting Type | Bolt Terminal Connection |
Applications:
- DC ammeters and monitoring instruments.
- Battery charging and management systems.
- Solar energy systems.
- Electric vehicle charging stations.
- Industrial automation and control panels.
- Power supply current measurement systems.
Package Include:
1x FL-2 100A SHUNT RESISTANCE
