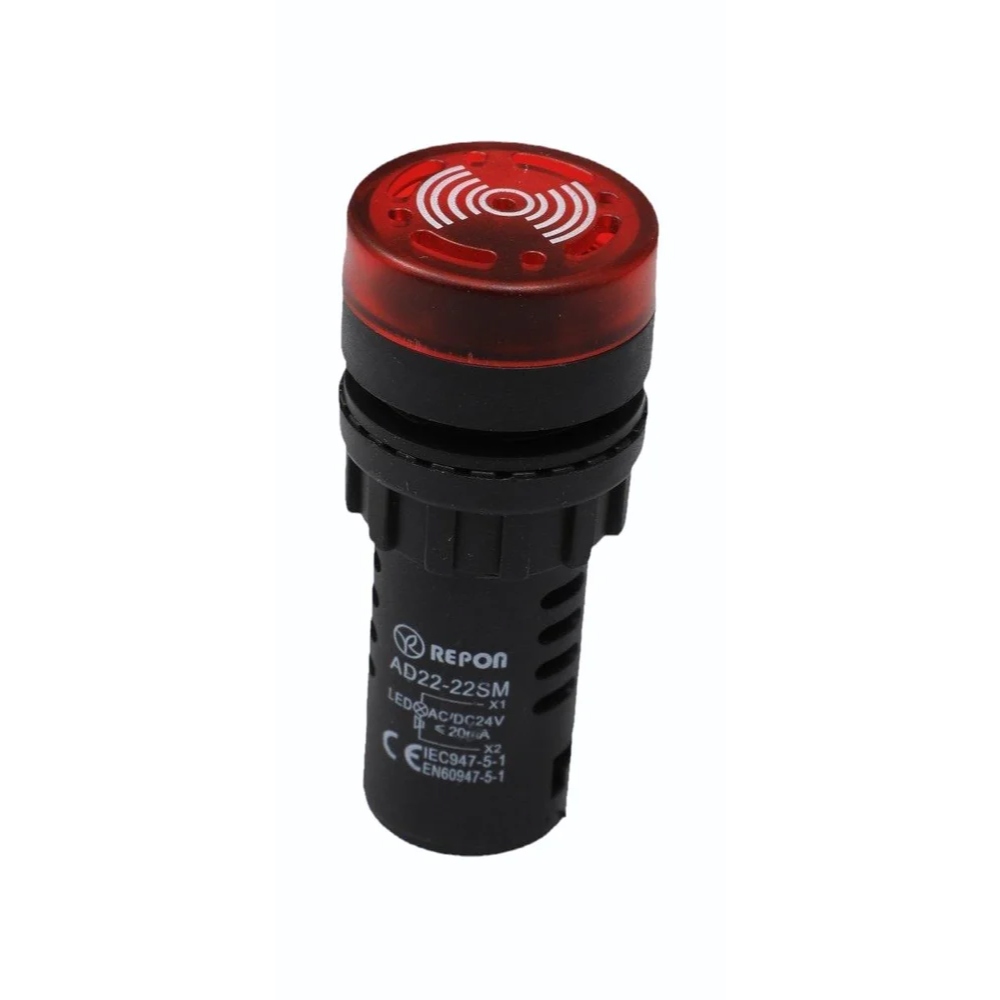

Flash Buzzer AD22-22SM 24VAC/DC Red
The AD16-22SM Red Flash Buzzer with LED and audible alert provides reliable signaling with a long service life and low energy consumption, ideal for industrial use.
85.00 EGP
In stockSKU 3496300109869
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Flash Buzzer AD16-22SM 24VAC/DC Red – LED Pilot Light with Buzzer
Panel-mounted flashing LED indicator with integrated buzzer designed for 24VAC/DC systems. Provides both visual and audible alarms for industrial control panels, machinery, automation systems, and electrical equipment requiring reliable status indication and warning notifications. effective equipment status monitoring and alarm notification. operational lifespan.
Feature:
- 22mm LED pilot light with flashing red color
- Built-in buzzer for audible alerts
- Low energy consumption and long service life
- Durable and easy to mount
Specification:
| Parameter | Value |
|---|---|
| Model | AD22-22SM |
| Product Type | Flash Buzzer Indicator |
| Operating Voltage | 24VAC/DC |
| LED Color | Red |
| Light Type | Flashing LED |
| Sound Type | Intermittent Buzzer |
| Sound Level | 80~85dB |
| Current Consumption | ≤20mA |

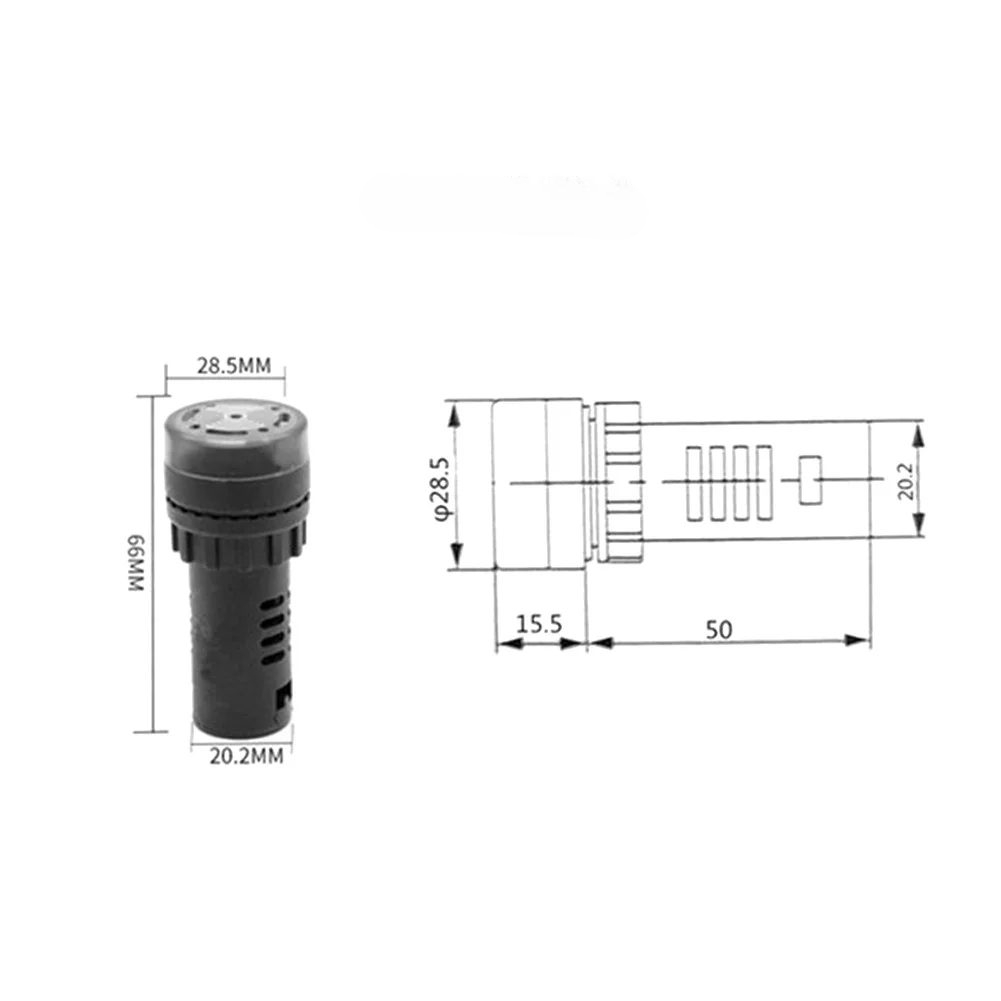

| Mounting Hole Diameter | 20mm |
| Head Diameter | 29mm |
| Overall Length | 66mm |
| Body Material | Plastic |
| Protection Rating | IP30 |
| Operating Temperature | -25°C~+55°C |
| Service Life | ≥30000h |
Application:
- Industrial control panels.
- Electrical distribution cabinets.
- Automation systems.
- CNC machinery.
- Manufacturing equipment.
- Alarm and warning systems.
- Process monitoring equipment.
- Machine fault indication.
- Building management systems.
- Power system signaling.
Package Contents:
- 1x Flash Buzzer AD22-22SM 24VAC/DC Red.
