FNIRSI® DPOX180H 2-IN-1 Dual Channel 180MHz 500MS/S Digital Phosphor Oscilloscope Signal Generator
The FNIRSI DPOX180H is a professional-grade portable dual-channel digital phosphor oscilloscope combined with an integrated DDS signal generator, designed for advanced waveform analysis, electronic maintenance, embedded development, and laboratory testing applications. Featuring a real-time sampling rate of 500MSa/s and a 180MHz analog bandwidth, the DPOX180H delivers precise signal acquisition and stable waveform visualization suitable for both field and desktop engineering environments.
Features:
- 2 Channels Digital Phosphor Oscilloscope
- 2 in 1 Handheld Oscilloscope+ DDS Signal Generator
- 180Mhz Bandwidth 500MSa/s Sampling Rate
- Storage Depth 120Kpts
- Maximum measurement voltage ±400V
- 200mv/div-10v/div vertical sensitivity
- Support waveform image storage and export
- Trigger function: auto/normal/single
- Effortless Usage: one-key-auto
- Seamless Operations: Enhanced Data Saving
Specifications:
| Parameter | Value |
|---|---|
| Brand | FNIRSI |
| Model | DPOX180H |
| Number of Channels | 2 |
| Analog Bandwidth | 180MHz |
| Max Waveform Capture Rate | 50000wfm/s |
| Real Time Sampling Rate | 500MSa/s |
| Maximum Sampling Rate | 500MSPS |
| Input Coupling | DC/AC |
| Rise Time | 2.5nS |
| Storage Depth | 120Kpts |
| Water Resistance Level | IPX6 |
| Input Impedance | 1MΩ-18PF |
| Vertical Sensitivity | 5mV ~ 10V(1X) |
| Time Base Range | 5nS ~ 50S |
| DC Accuracy | ±2% |
| Time Accuracy | ±0.01% |
| Measurement Range | 40mV ~ 80V(1X) |
| Digital Phosphor Technology | Support |
| Color Temperature Display | Support |
| Zoom Scaling Time Base | Support |
| 20M Hardware Bandwidth Limitation | Support |
| Adjustable Automatic Bandwidth Limitation | Support |
| X-Y Mode | Support |
| FFT | Support |
| Cursor Measurement | Frequency / Period / Amplitude |
| Trigger Detection | Digital Trigger |
| Trigger Mode | Auto / Single / Normal |
| Trigger Edge | Rising / Falling |
| Roll Mode | Support |
| Screenshot Storage | 90 |
| Waveform Storage | 250 Groups |
| Capture Signal | 500 |
| Parameter Measurement | 12 Kinds |
| Signal Generator | 14 Standard Function Signals |
| Auto-adjustment | Support |
| Waveform Manager | Support |
| Waveform Output | Support |
| High-voltage Burnout Protection | Support |
| Screen Size | 2.8 Inches |
| Screen Resolution | 320×240 Pixels |
| Display Technology | IPS Full View |
| Expansion Interface | USB Transmission Interface |
| Auto Power-off | 5 minutes ~ 2 hours |
| Firmware Upgrade | Support |
| Charging Requirements | 5V 2A |

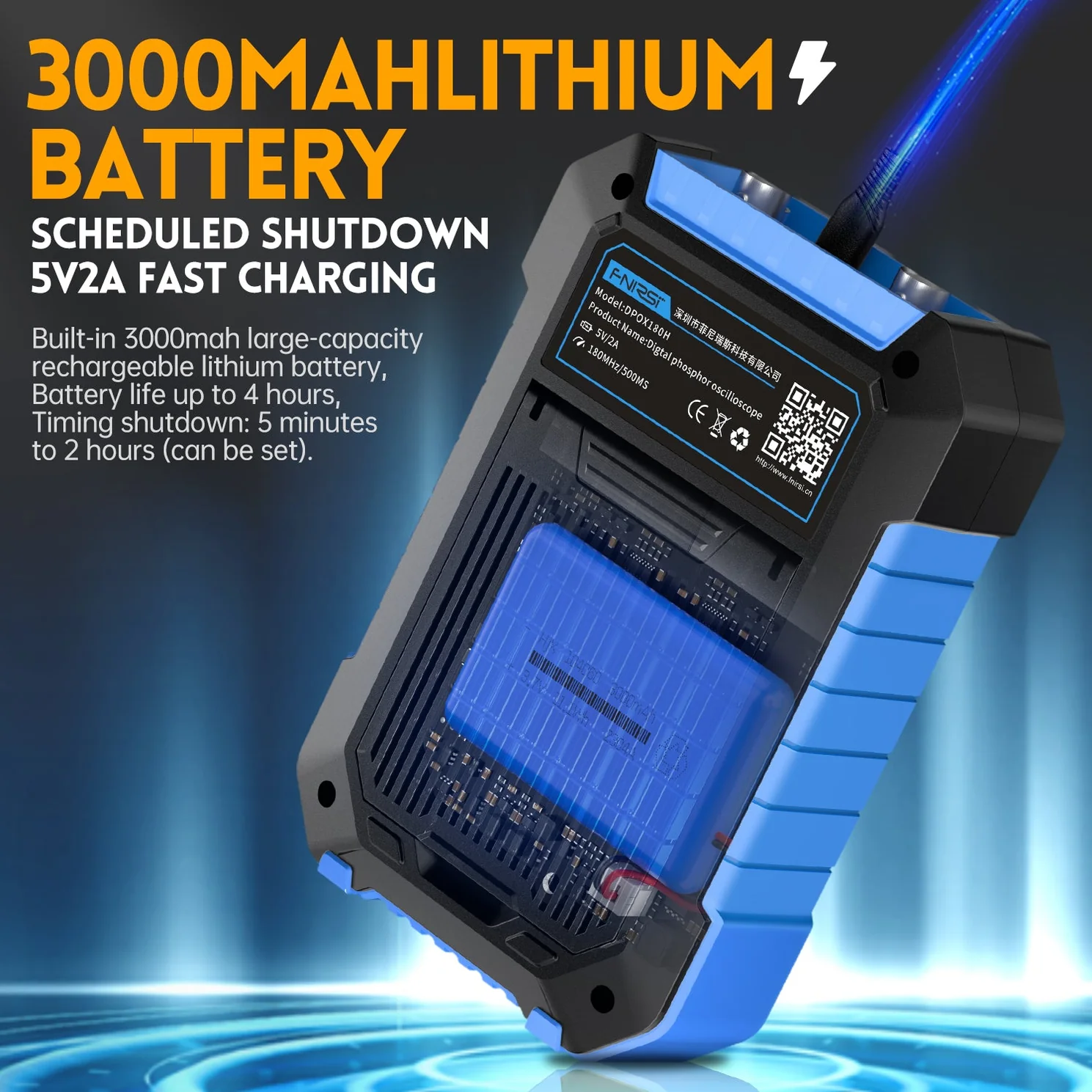

| Battery Capacity | 3000mAh |
| Standby Time | 3.5 Hours at Full Charge |
| Dimensions | 135x90x40mm |
Configuration:
Applications:
- Electronic circuit waveform analysis.
- Embedded systems debugging.
- Analog and digital signal testing.
- Portable field maintenance and repair.
- Educational laboratory experiments.
- Communication signal diagnostics.
- Sensor and power supply testing.
- Industrial equipment maintenance.
- Signal generation and waveform simulation.
- Electronics engineering training applications.

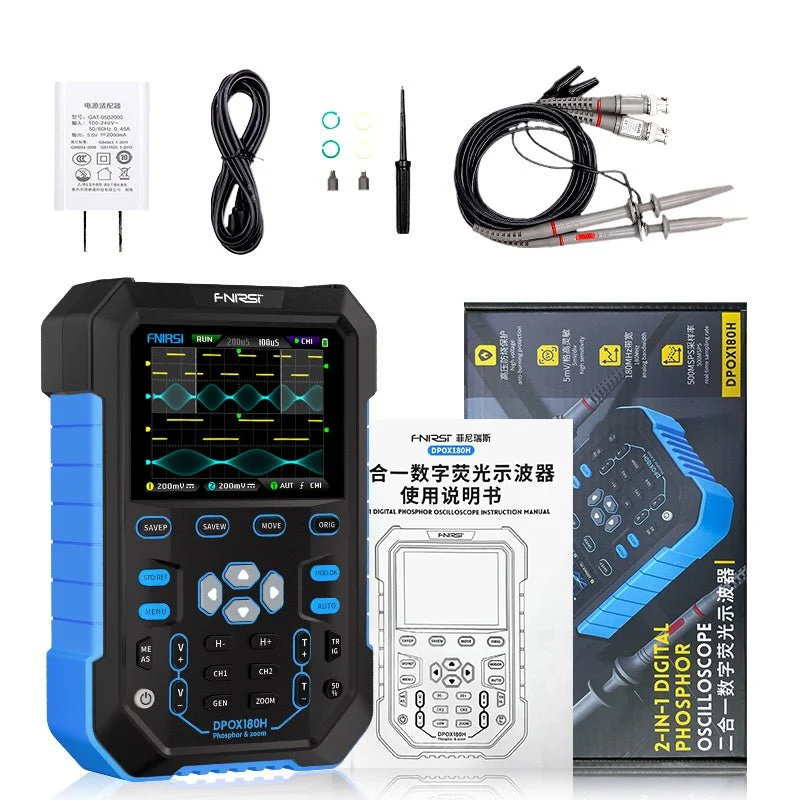

Package Contents
- 1x FNIRSI DPOX180H Digital Phosphor Oscilloscope.
- 2x 200MHz Probe (1X & 10X).
- 1x 5V/2A Power Adapter.
- 1x USB Data Cable.
- 1x User Manual.
