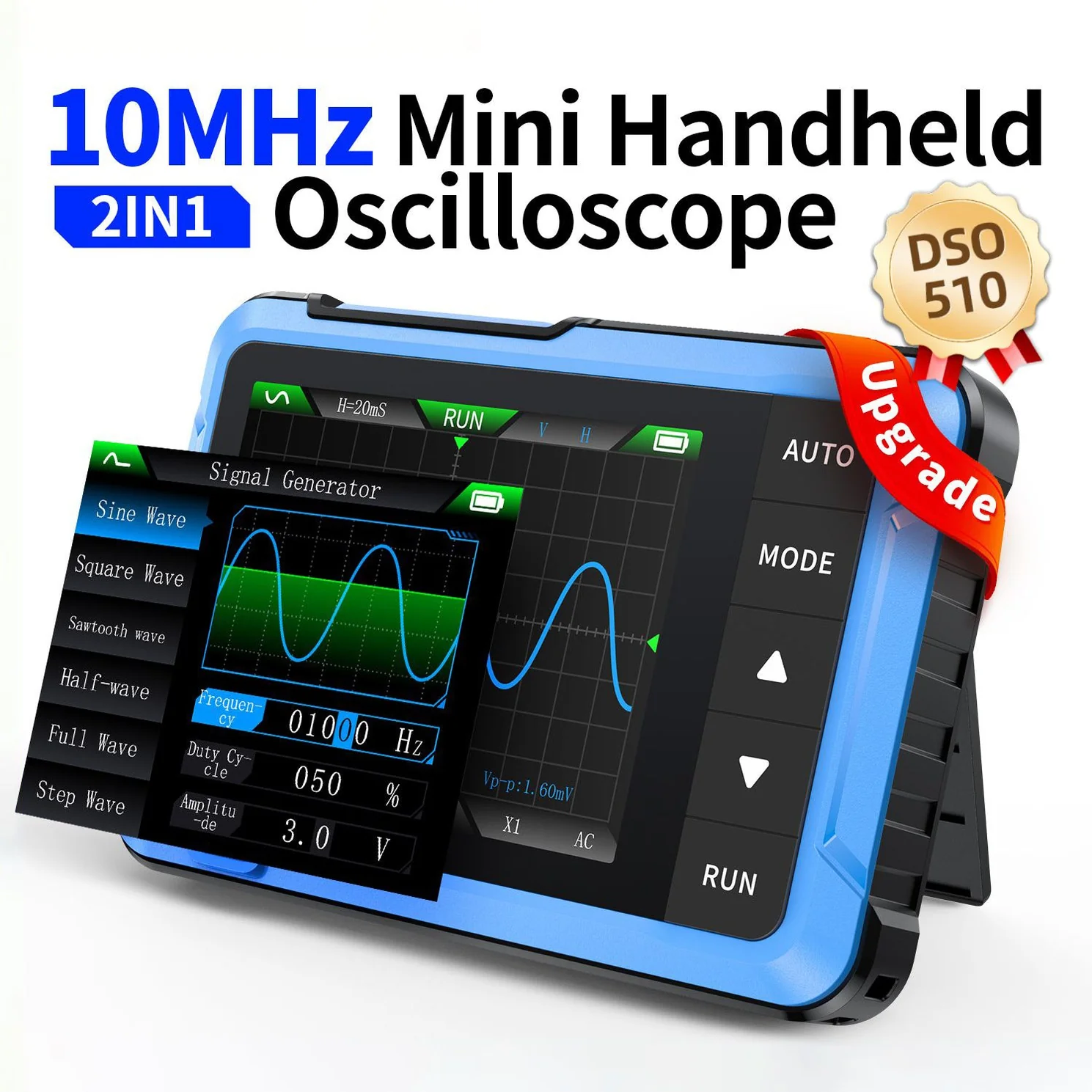

FNIRSI® DSO-510 10MHz 48MS/S Mini Handheld Digital Oscilloscope Signal Generator
FNIRSI® DSO-510 is a portable handheld digital oscilloscope designed to provide reliable waveform analysis and signal generation capabilities in a compact lightweight form factor. Combining a digital oscilloscope and DDS signal generator into a single device, the DSO-510 is suitable for electronics engineers, students, repair technicians, makers, and embedded system developers.
Features:
- Portable 2.8″ TFT Handheld Oscilloscope for beginners, hobbyist
- DSO oscilloscope: 48MS/s, 10MHz bandwidth, ±400V voltage range.
- Signal Generator: 50KHz

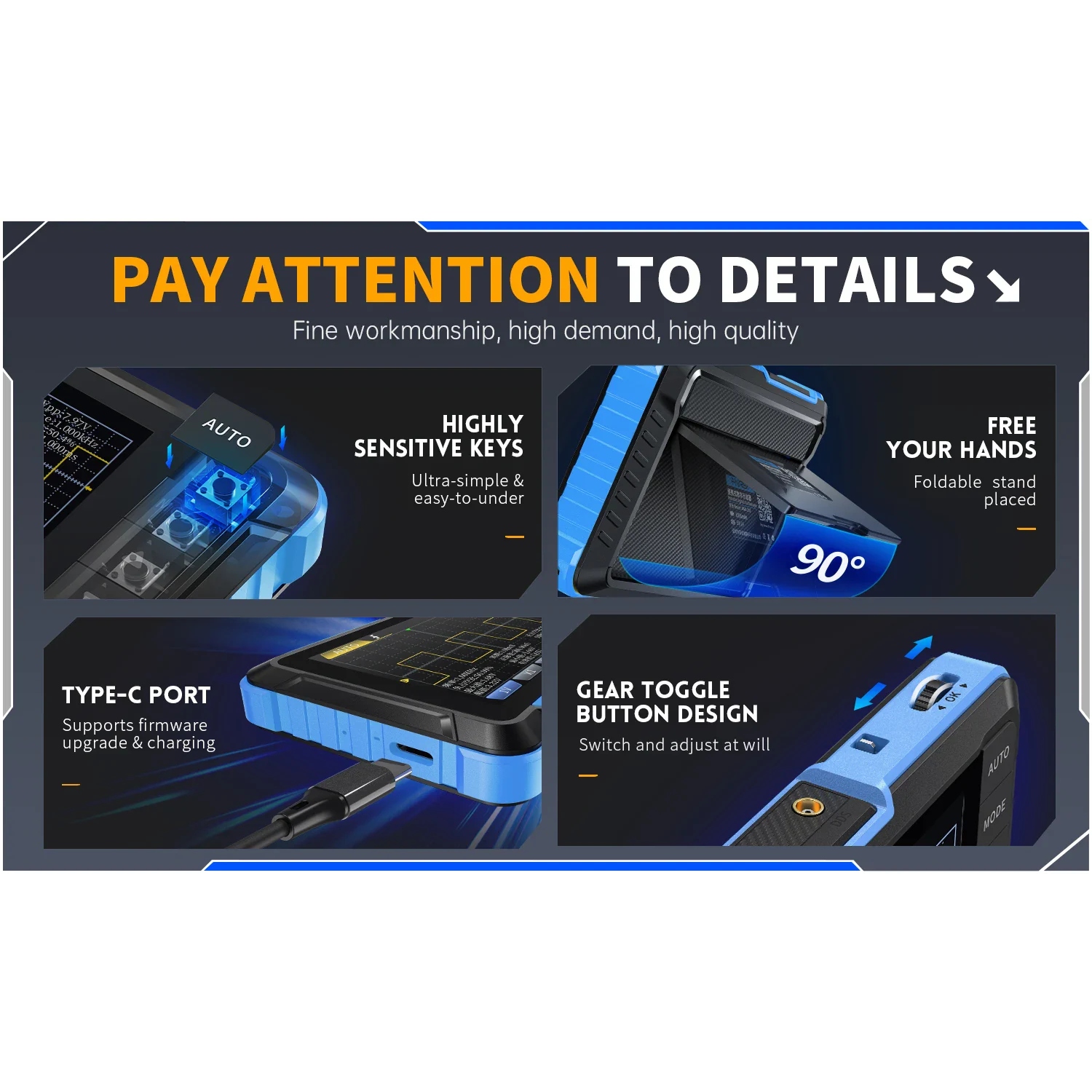

- High-definition 320*240 LCD, Type-C interface.
- Finished assembly, lightweight, perfect for maintenance.
- Versatile trigger functions: single, normal, automatic.
- Signal Type Support: Periodic analog signals and non-periodic digital signals.
- 2 languages: Chinese, English

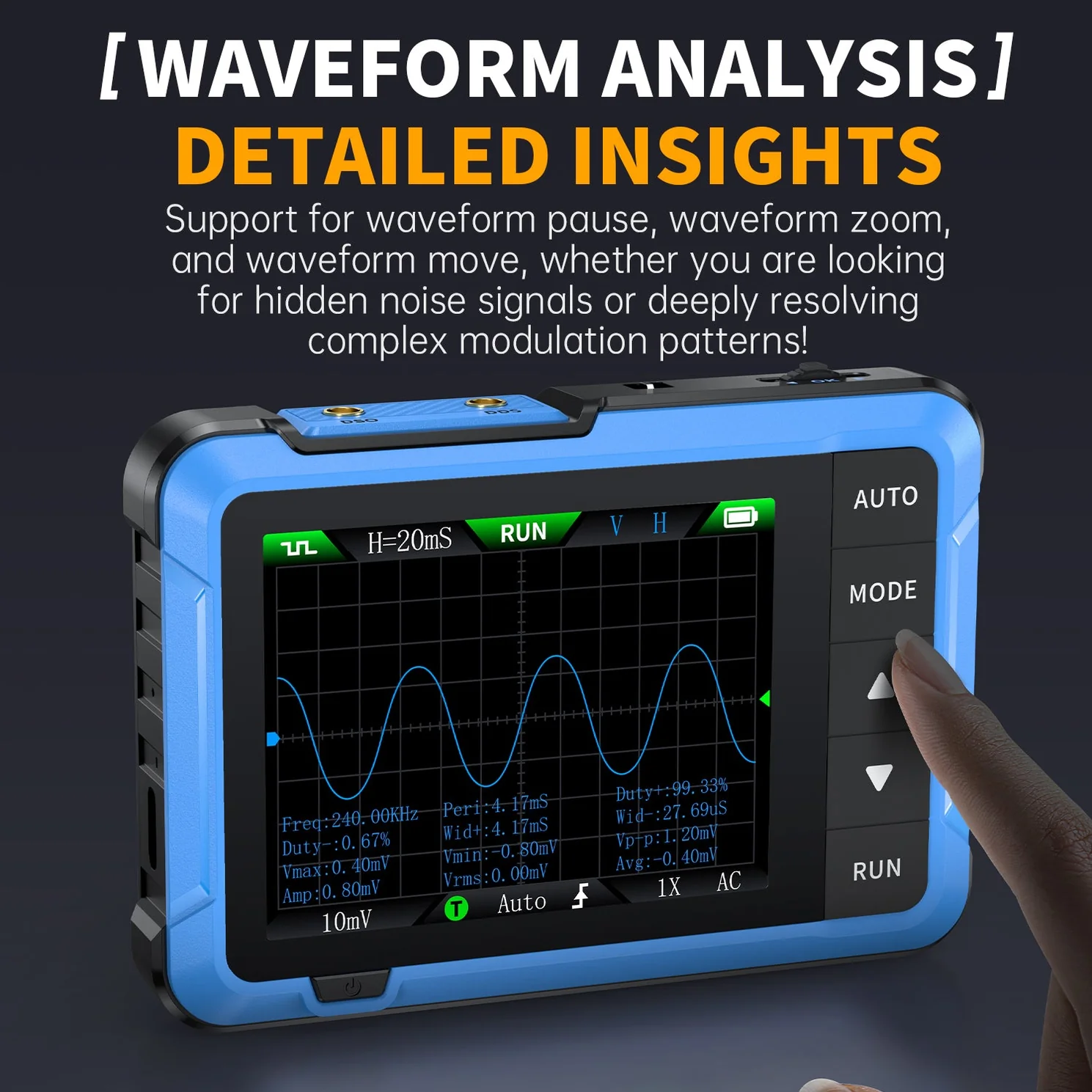

- One-Click AUTO Mode: Displays waveforms instantly without complex adjustments.

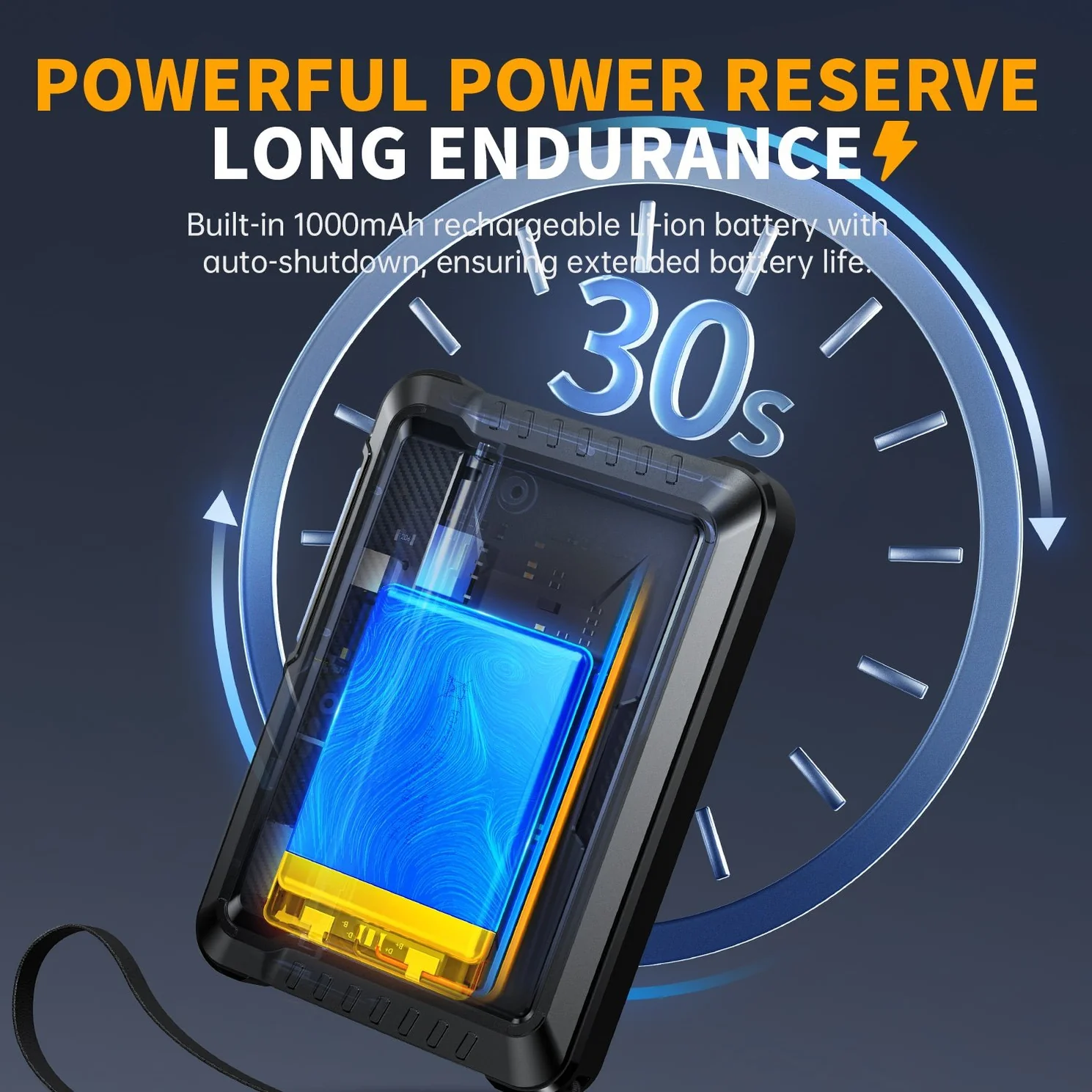

- Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
- Recommended Use: Ideal for advanced repairs, development, and education projects.
Specifications:

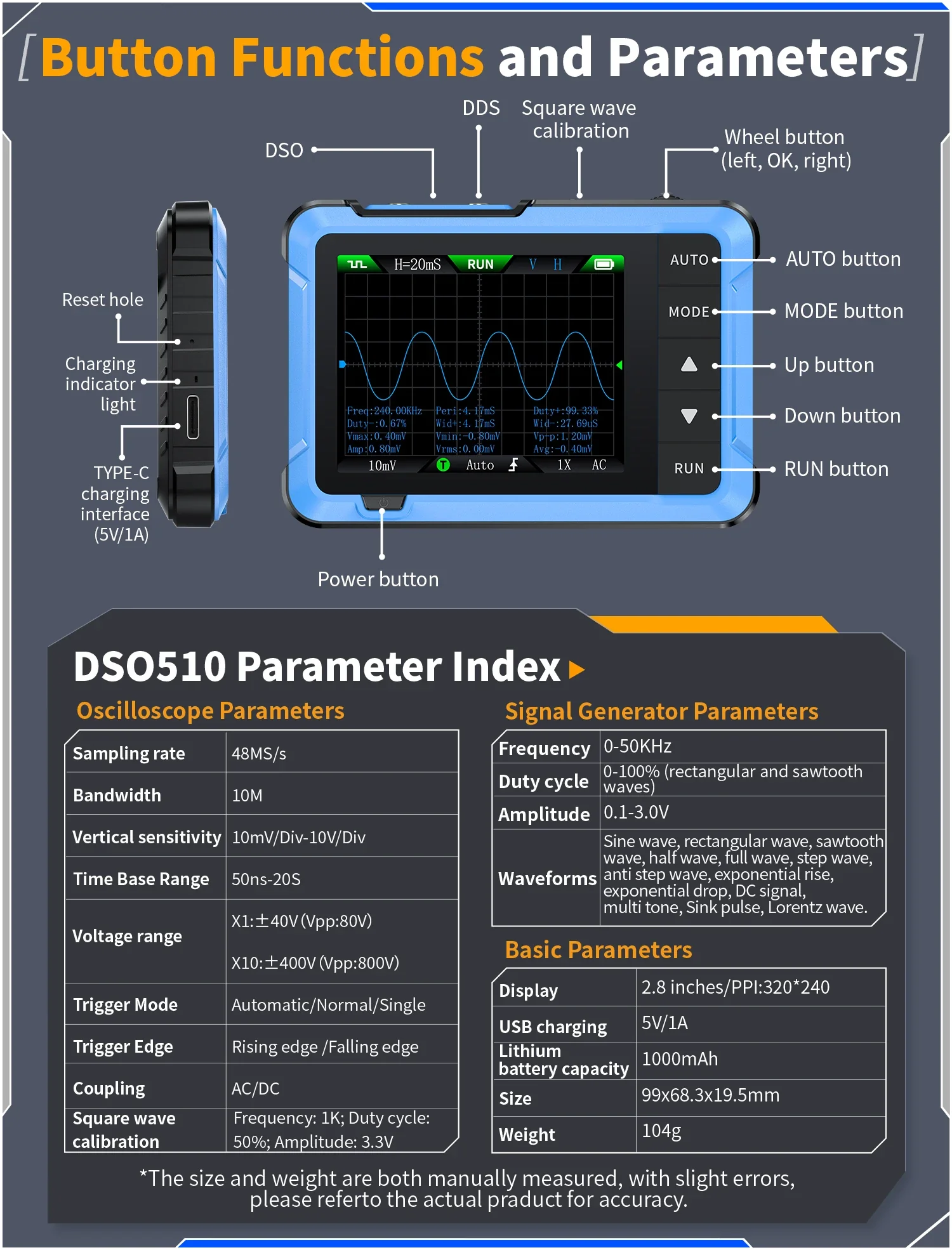

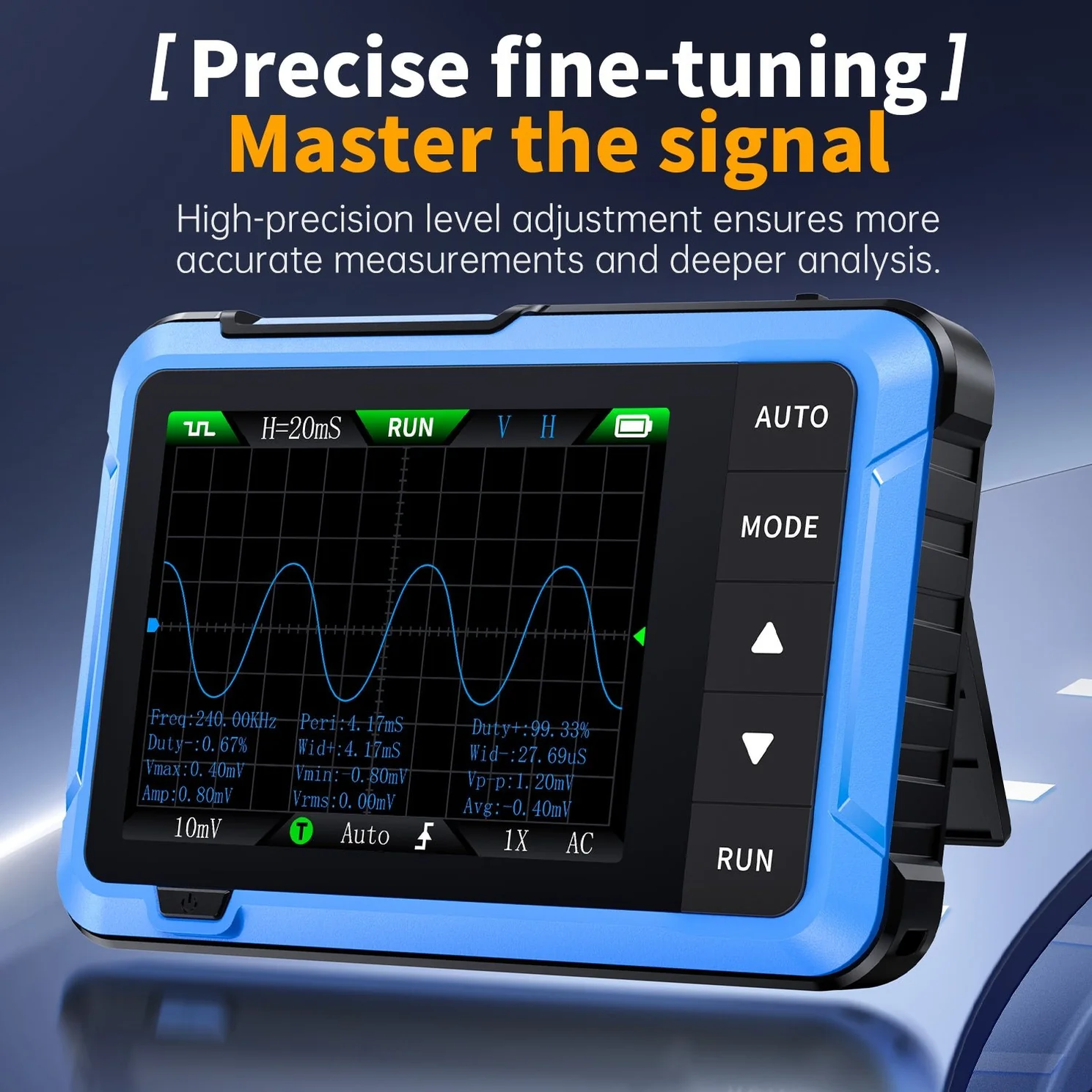

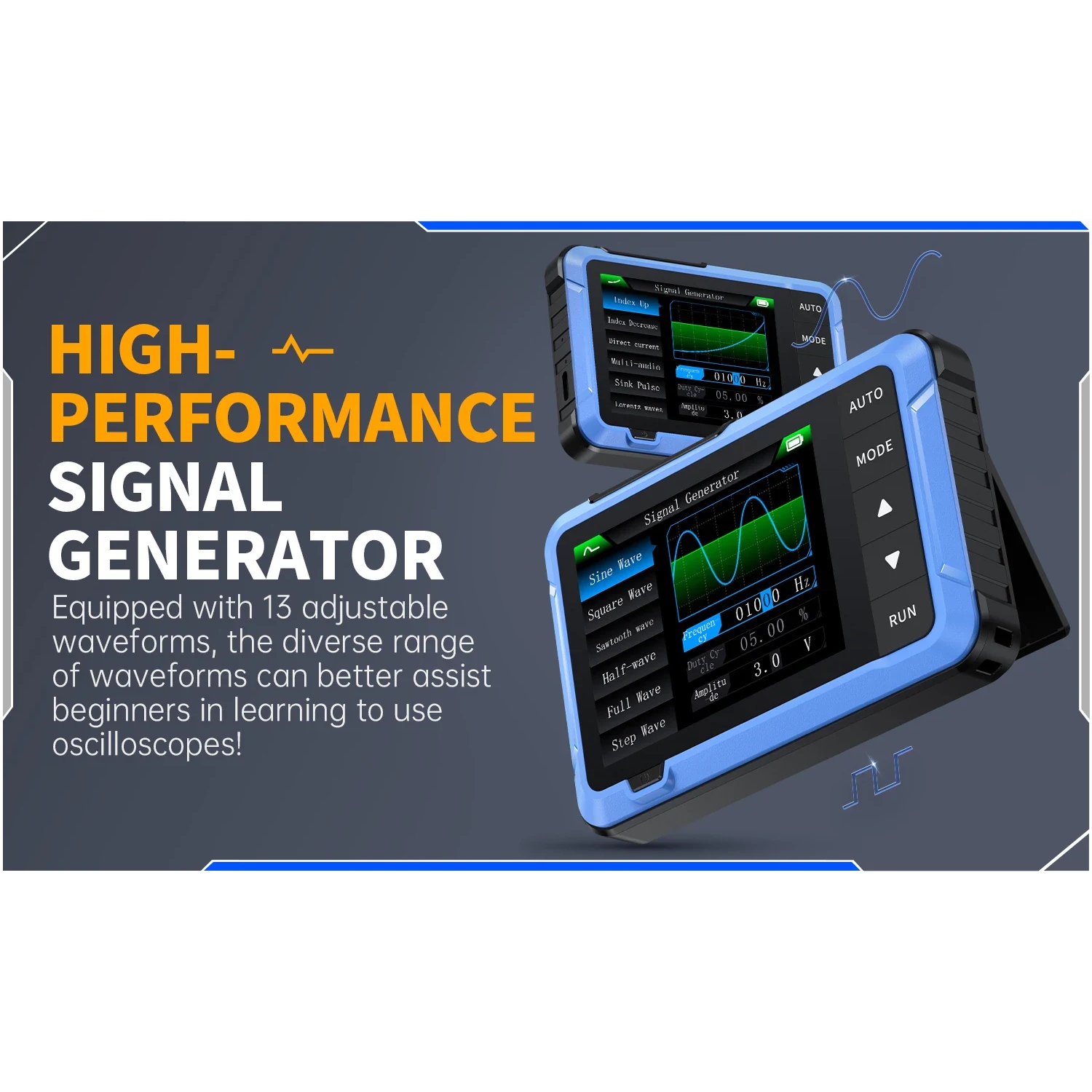

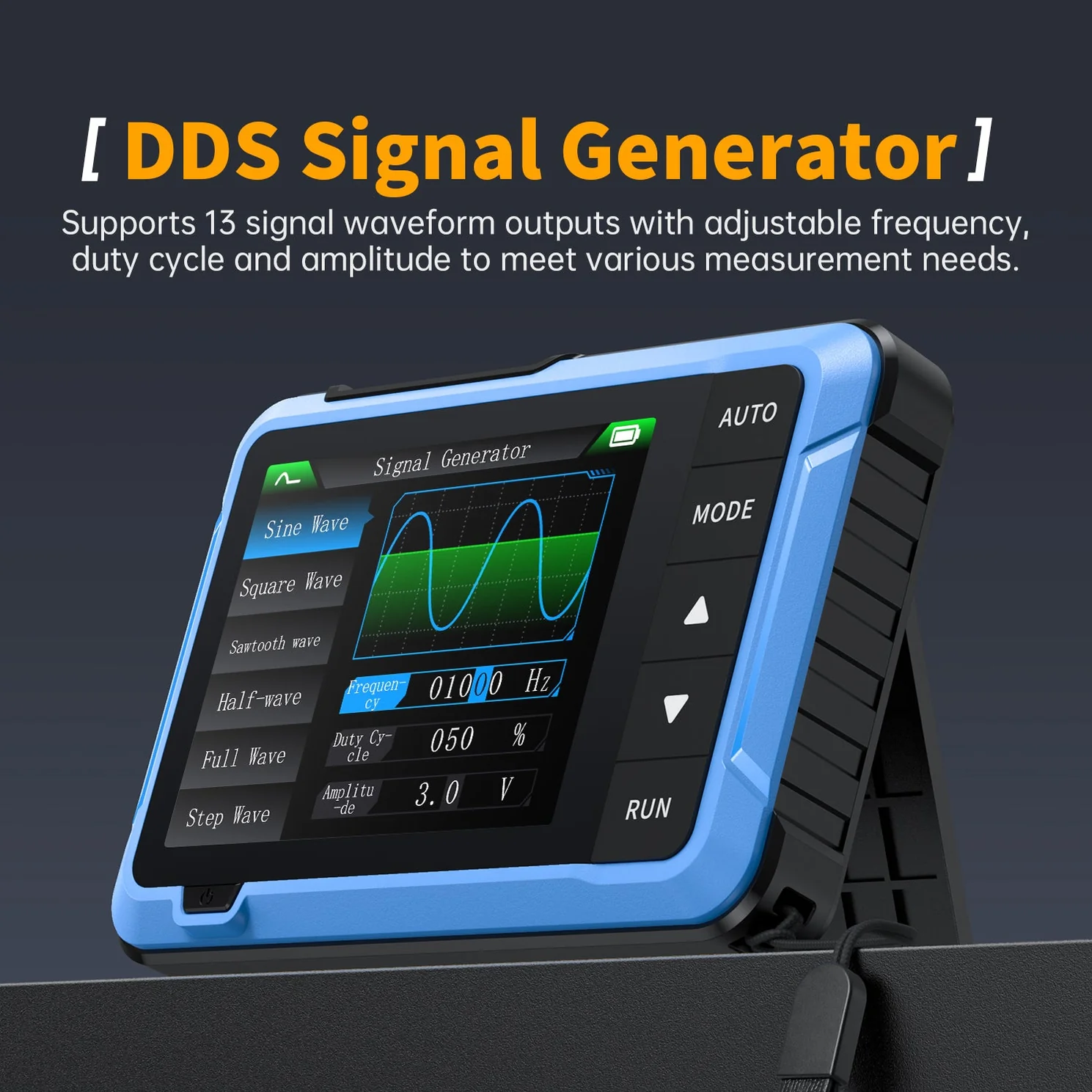

| Parameter | Value |
|---|---|
| Brand: | FNIRSI. |
| Model: | DSO-510. |
| Display: | 2.8 Inches / PPI: 320×240. |
| USB Charging: | 5VDC/1A. |
| Lithium Battery Capacity: | 1000mAh. |
| Size: | 99×68.3×19.5mm. |
| Weight: | 104g. |
| Channel: | 1. |
| Sampling Rate: | 48MSa/s. |
| Bandwidth: | 10MHz. |
| Vertical Sensitivity: | 10mV/Div to 20V/Div (Progress according to the 1-2-5 way). |
| Time Base Range: | 50ns/Div to 20s/Div (Progress according to the 1-2-5 way). |
| Voltage Range (X1): | ±40V (Vpp: 80V). |
| Voltage Range (X10): | ±400V (Vpp: 800V). |
| Trigger Mode: | Auto / Normal / Single. |
| Trigger Edge: | Rising edge / Falling edge. |
| Coupling: | AC/DC. |
| Signal Generator Frequency: | 0 to 50kHz. |
| Signal Generator Duty Cycle: | 0% to 100% (rectangular and sawtooth waves). |
| Signal Generator Amplitude: | 0.1V to 3.0V. |
| Signal Generator Waveforms: | Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave. |

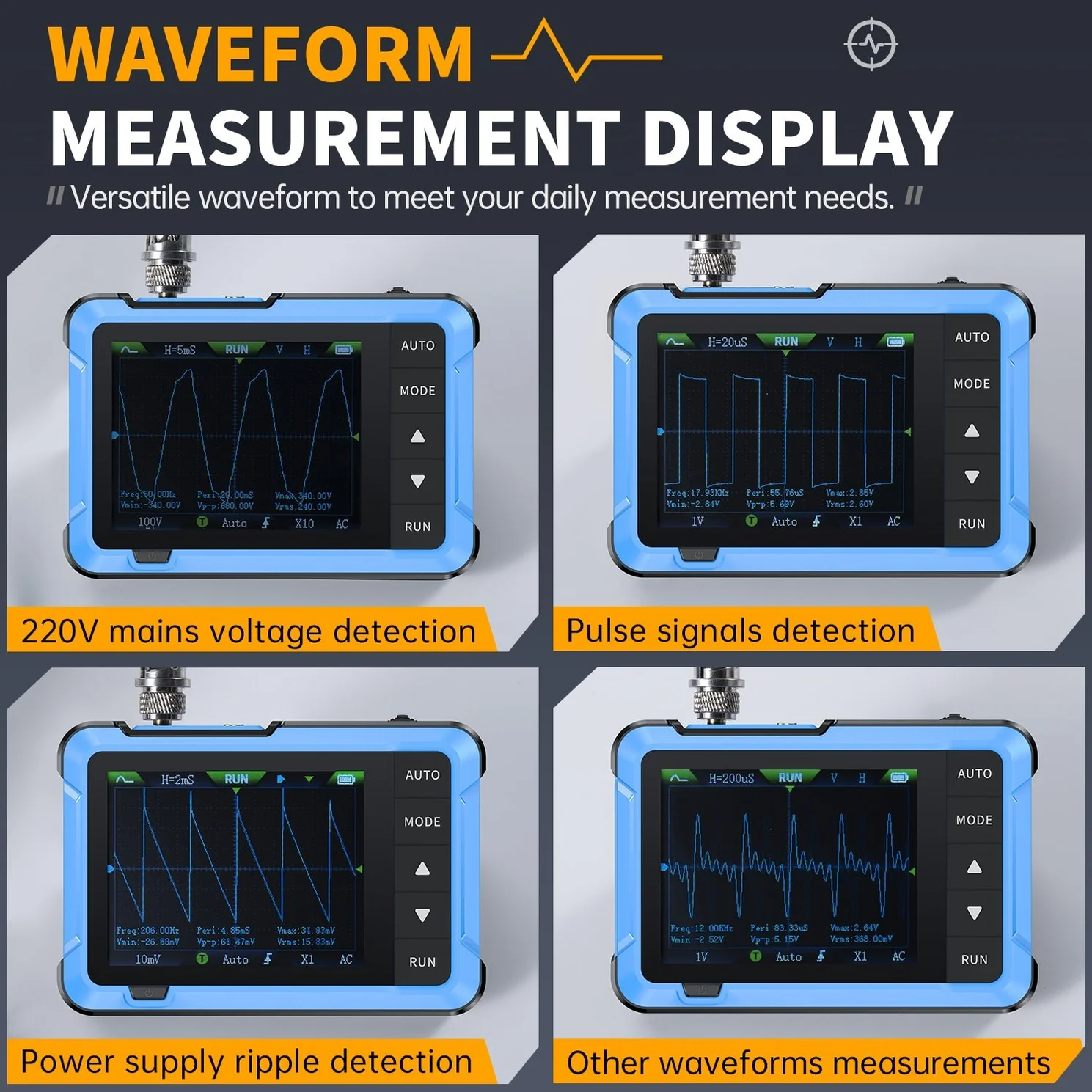

Applications:
- Electronic circuit debugging.
- Embedded systems development.
- Arduino and microcontroller testing.

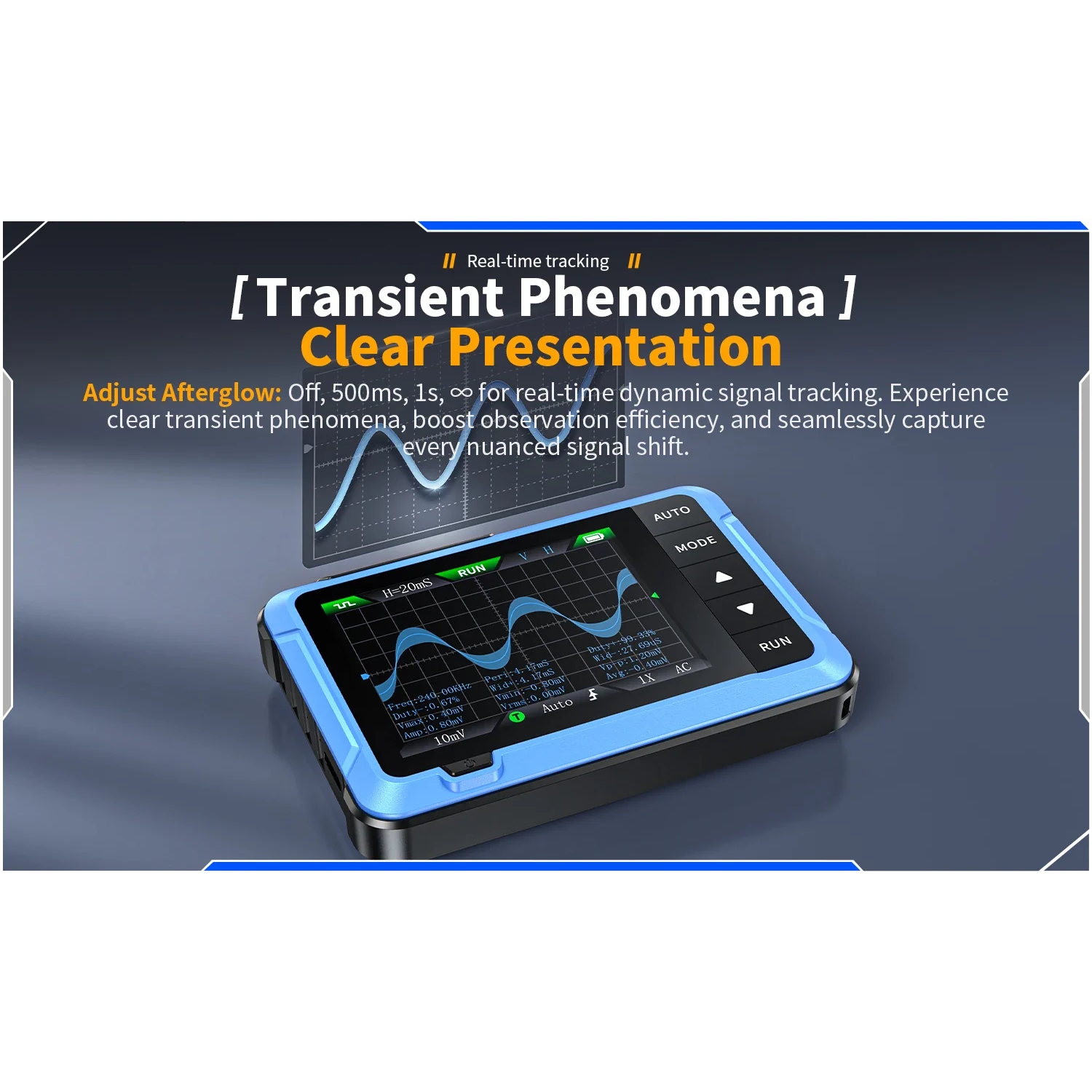

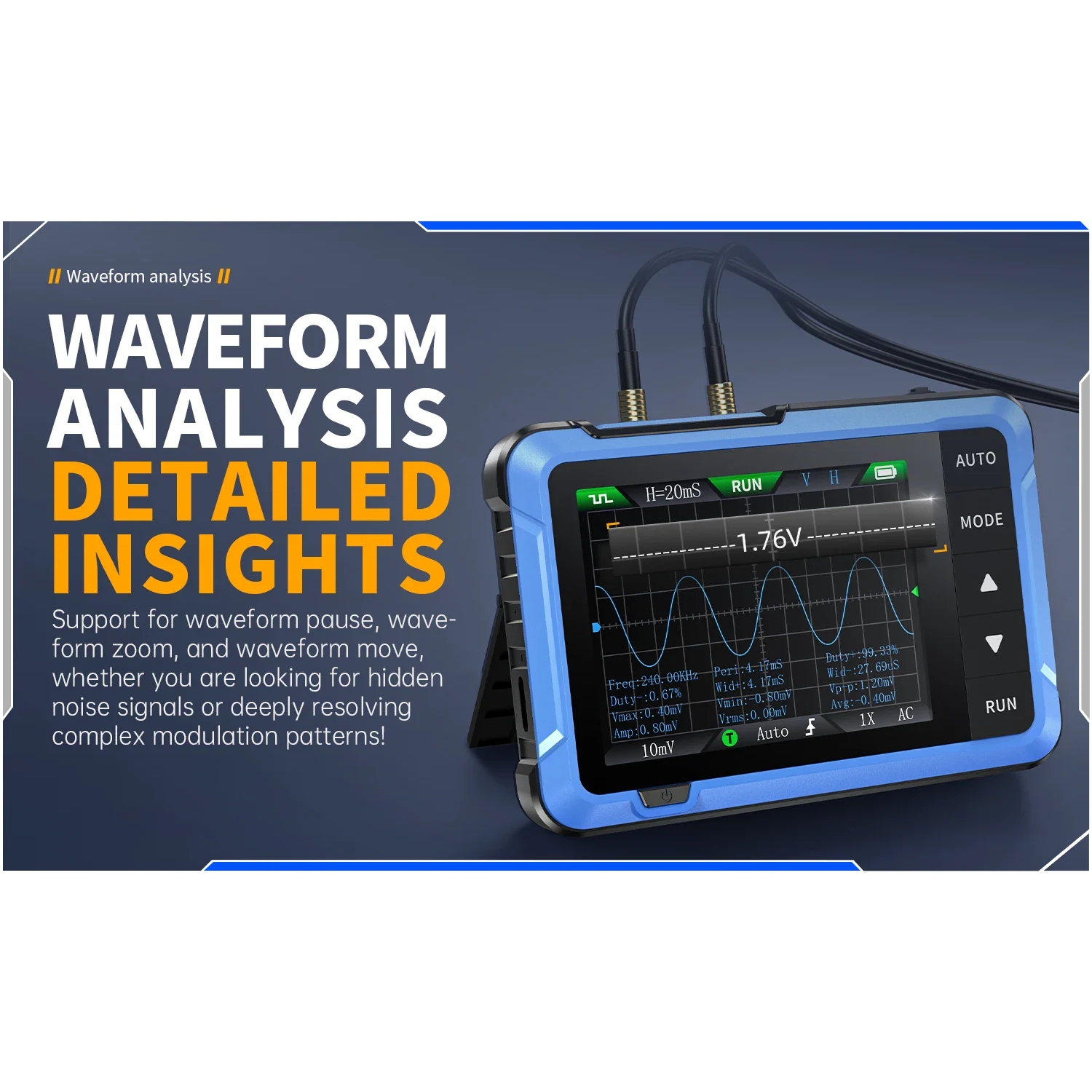

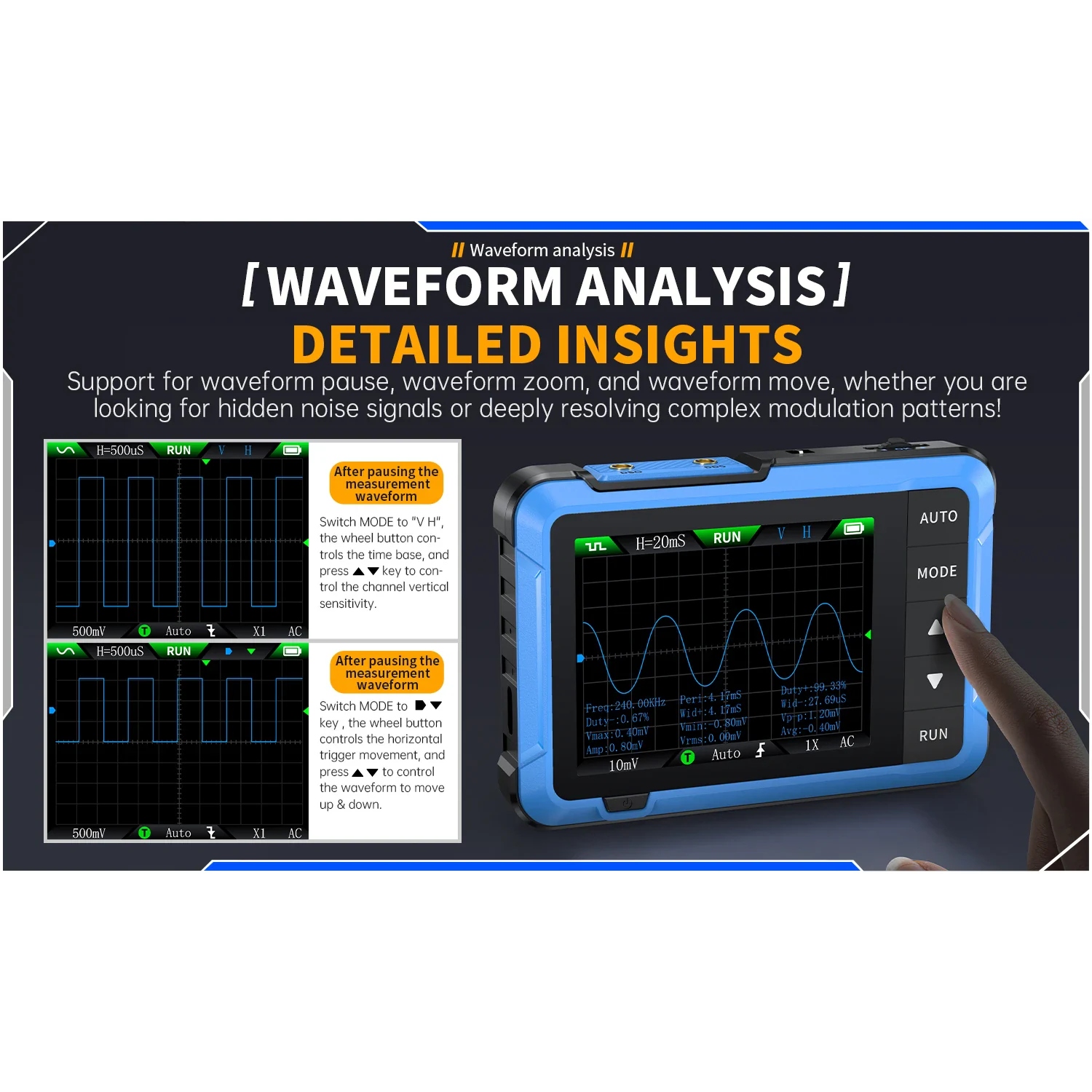

- Signal waveform analysis.
- Audio signal troubleshooting.
- Educational electronics laboratories.
- DIY electronics projects.
- Portable field maintenance.
- Low-frequency digital signal analysis.
- Power supply ripple testing.
- Signal simulation and waveform generation.
- Electronics repair workshops.
- Sensor signal monitoring.
- Analog circuit diagnostics.

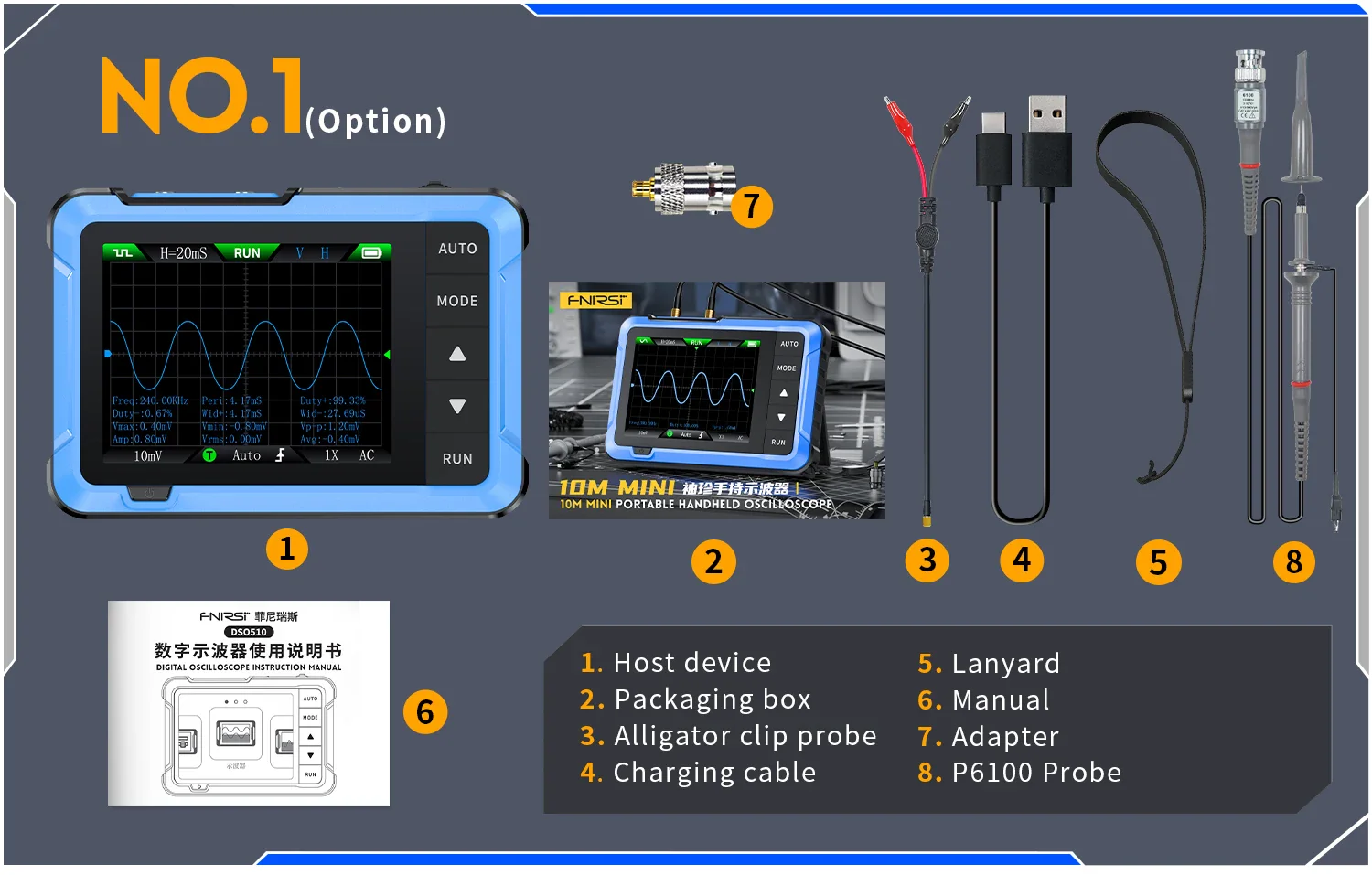

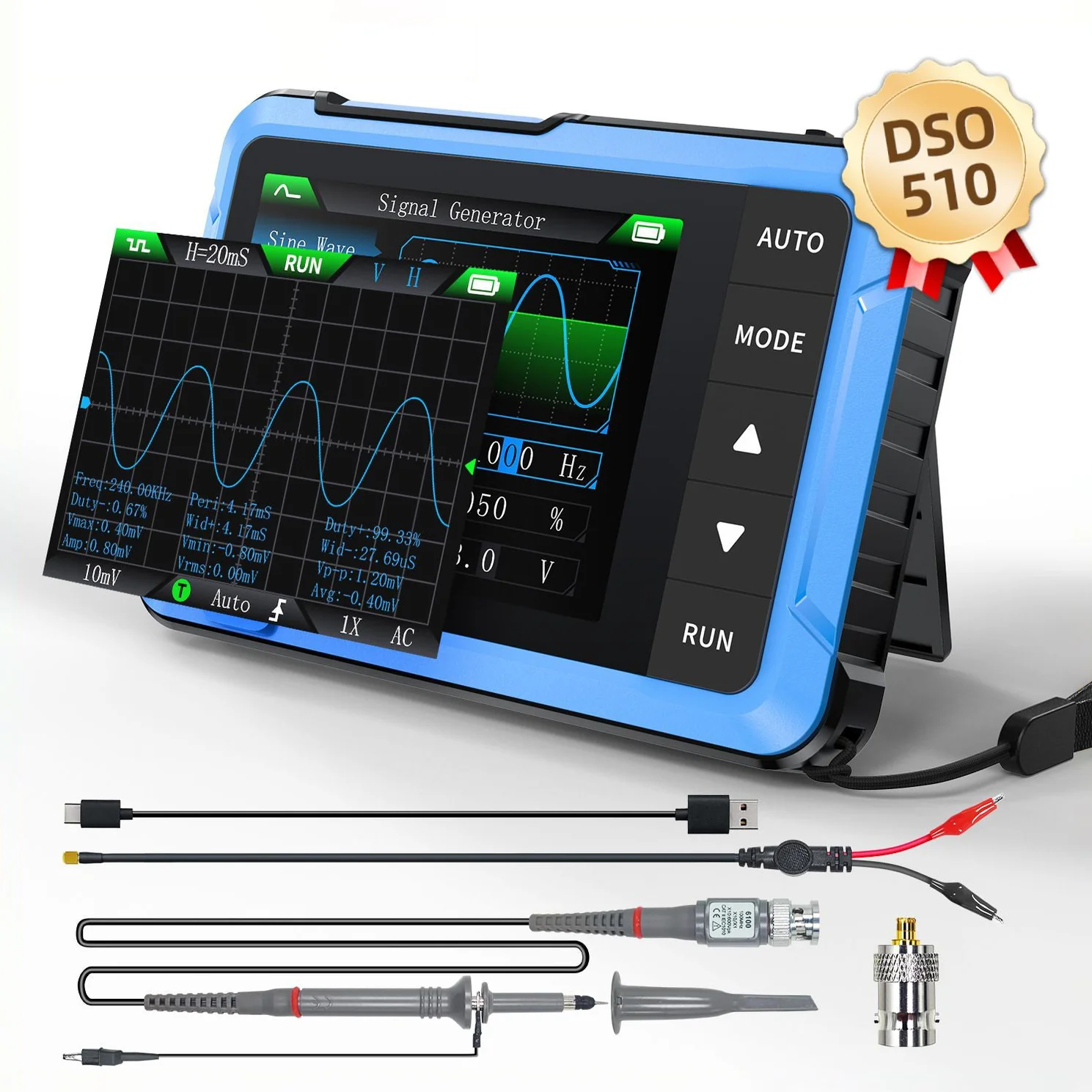

Package Include:
- 1x FNIRSI® DSO-510 Mini Handheld Digital Oscilloscope Signal Generator unit.
- 1x P6100 10:1 High-Voltage Oscilloscope Probe.
- 1x Alligator Clip Test Lead.
- 1x USB-C Charging Cable.
- 1x AC Power Adapter (5V/1A).
- 1x Lanyard.
- 1x Protective Case.
- 1x User Manual (English).
