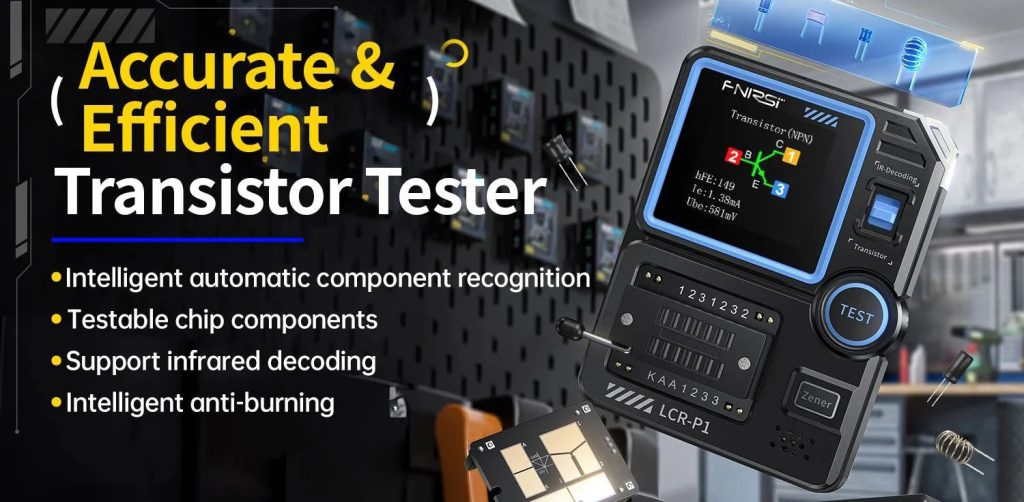

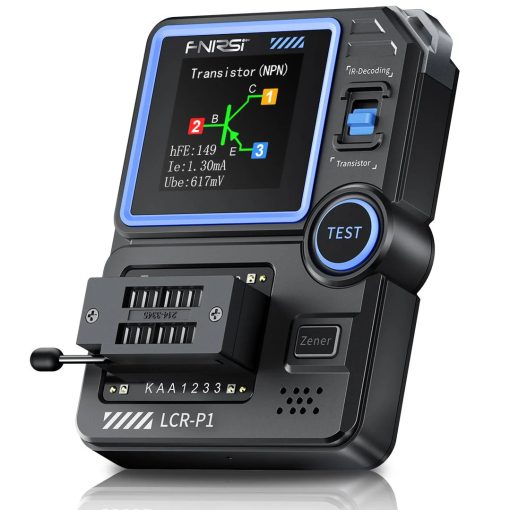

FNIRSI® LCR-P1 Multifunction LCR Transistor Capacitor Tester

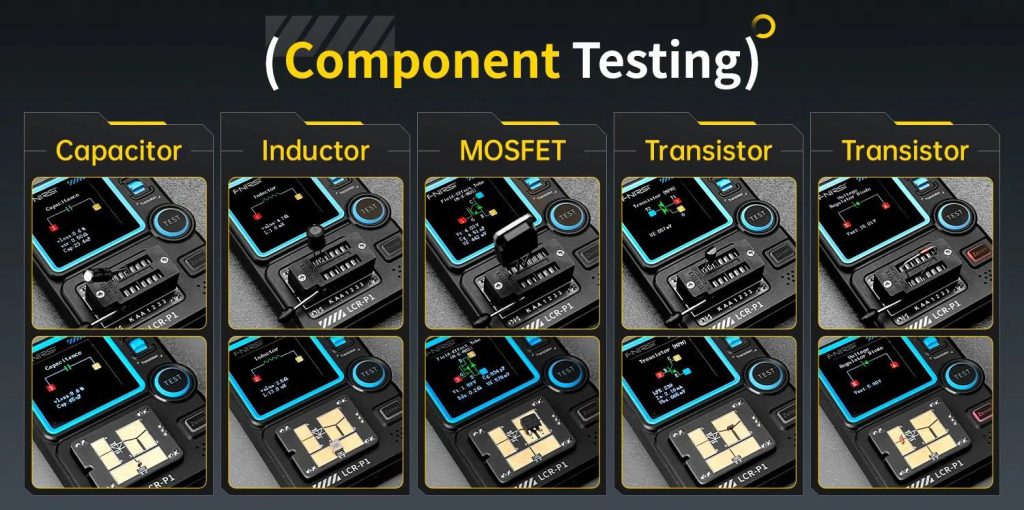

The FNIRSI® LCR-P1 Multifunction LCR Transistor Capacitor Tester is a compact electronic component analyzer created for technicians, engineers, repair specialists, and electronics enthusiasts. It provides a convenient way to examine many commonly used components without manually identifying every terminal or calculating values from separate measurements. Components are inserted into the locking test socket, and the instrument automatically analyzes the connected device before presenting the result on its color display.
The tester can identify two-terminal and three-terminal parts, determine their pin arrangement, and display relevant electrical information in an easy-to-read visual format. It is designed to work with transistors, diodes, Zener diodes, field-effect transistors, thyristors, capacitors, resistors, inductors, and low-voltage batteries. A dedicated high-voltage testing area allows supported Zener diodes to be examined beyond the standard socket’s lower-voltage range.
In addition to component analysis, the LCR-P1 includes an infrared decoding mode for checking compatible remote-control signals and displaying their decoded information and waveform. Its rechargeable handheld design makes it suitable for use at a workbench, in a repair area, or during portable troubleshooting. Automatic recognition reduces connection uncertainty, simplifies repeated testing, and helps users quickly evaluate unidentified, removed, or replacement electronic components before installation efficiently.
Features:
- Automatically identifies connected electronic components.
- Automatically determines component pin arrangements.
- Supports testing of two-terminal and three-terminal components.
- Displays component symbols and measured information on a color screen.

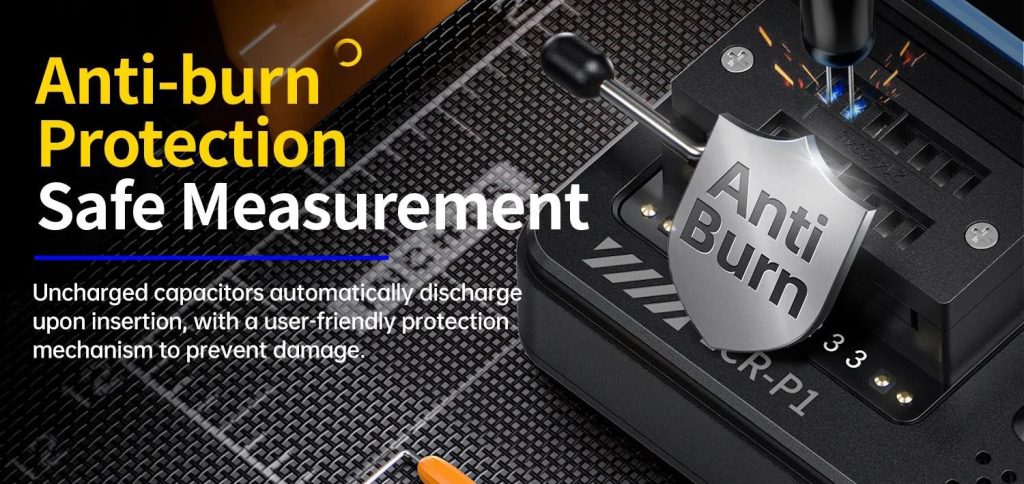

- Dedicated locking socket for secure component connection.

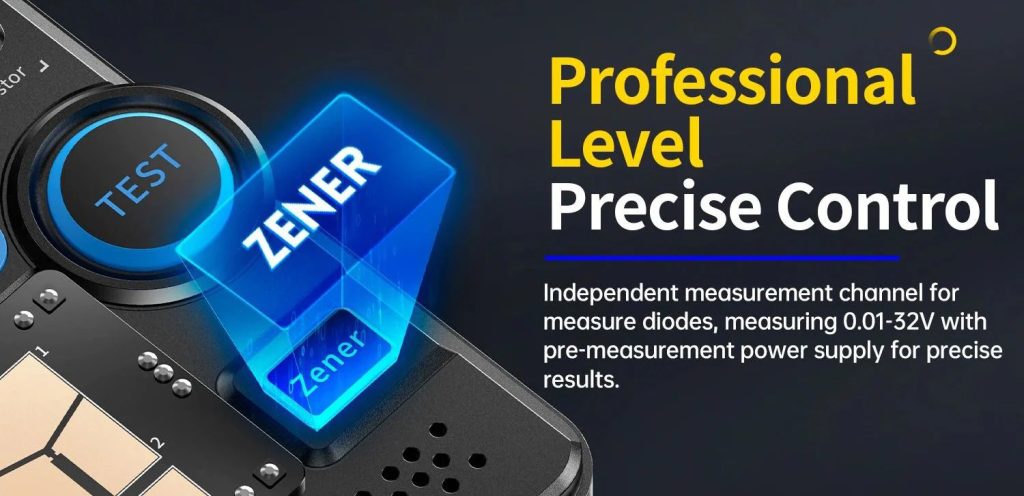

- Separate testing area for higher-voltage Zener diodes.
- Detects incorrect Zener diode connection polarity.
- Supports transistor and field-effect transistor identification.
- Measures multiple parameters from compatible components.
- Displays capacitor ESR and loss information.
- Detects battery polarity automatically.
- Identifies unknown, missing, unsupported, or damaged components.
- Includes NEC infrared remote-control signal decoding.
- Displays infrared address codes, command codes, and waveforms.
- Simple one-button automatic testing operation.

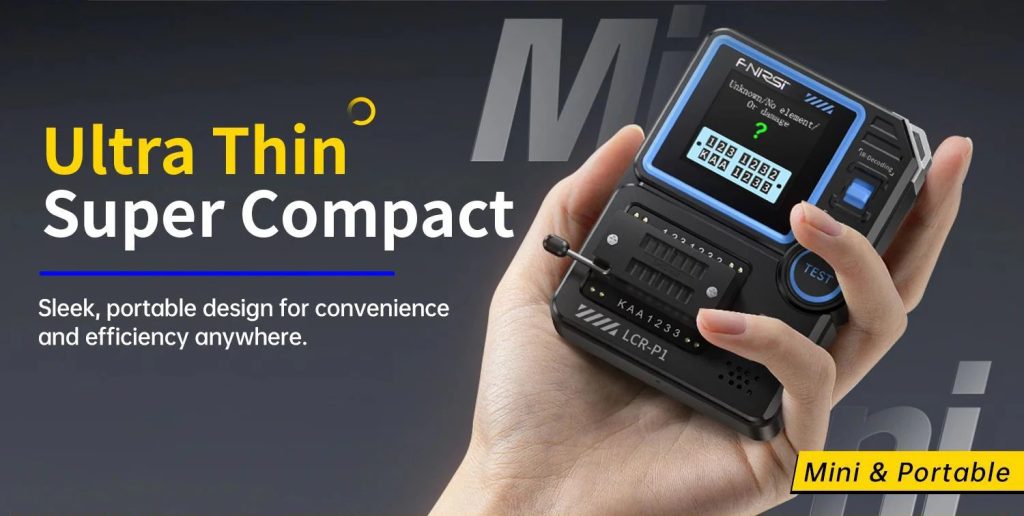

- Rechargeable and portable handheld design.
- USB Type-C charging and data-transfer connection.
- Supports firmware upgrades through a computer.
Specifications:
| Specification | Details |
|---|---|
| Product Type: | Multifunction Electronic Component Tester |
| Brand: | FNIRSI® |
| Model: | LCR-P1 |
| Display: | 1.44-Inch Color Screen |
| Battery Type: | Built-In Rechargeable Lithium Battery |
| Battery Capacity: | 300mAh |
| Charging Input: | USB Type-C, 5V/1A |
| Product Dimensions: | 71 × 87 × 28mm |
| Standard Test Socket: | Numbered 1-2-3 Locking Test Area |
| Zener Test Socket: | K-A-A High-Voltage Test Area |
| Transistor Gain Range: | 10 < β < 600 |
| Transistor Parameters: | hFE, Ube, Ic/Ie, Iceo, Ices and Protection Diode Uf |
| Diode Forward Voltage Range: | Less Than 4.5V |
| Diode Parameters: | Forward Voltage, Junction Capacitance and Reverse Leakage Current |
| Zener Diode Range – 1-2-3 Area: | 0.01–4.5V |
| Zener Diode Range – K-A-A Area: | 0.01–32V |
| Supported Field-Effect Devices: | JFET, IGBT and MOSFET |
| MOSFET Parameters: | Threshold Voltage Vt, Gate Capacitance Cg, Drain-Source Resistance Rds and Protection Diode Uf |
| JFET Parameters: | Gate Capacitance Cg, Drain Current Id at Vgs and Protection Diode Uf |
| IGBT Parameters: | Drain/Collector Current at Vgs and Protection Diode Uf |
| SCR Types: | Unidirectional and Bidirectional SCR |
| SCR Turn-On Voltage: | Less Than 5V |
| SCR Gate Trigger Current: | Less Than 6mA |
| SCR Measured Parameter: | Gate Voltage |
| Capacitance Range: | 25pF–100mF |
| Capacitor Parameters: | Capacitance, Vloss and ESR |
| Resistance Range: | 0.01Ω–50MΩ |
| Inductance Range: | 10µH–1000µH |
| Inductor Parameters: | Inductance and DC Resistance |
| Battery Test Range: | 0.1–4.5V |
| Battery Test Information: | Voltage and Polarity |
| Infrared Decoding Protocol: | NEC Protocol |
| Infrared Information: | Address Code, User/Data Code and Waveform |
| Firmware Upgrade Interface: | USB Type-C |
| Component Connection: | Locking Test Socket |
Applications:
- Electronic Component Identification.
- Transistor Testing.
- MOSFET Testing.
- IGBT Testing.
- JFET Testing.
- Diode Testing.
- Zener Diode Testing.
- Thyristor Testing.
- Capacitor Testing.
- ESR Measurement.
- Resistor Testing.
- Inductor Testing.
- Low-Voltage Battery Testing.
- Infrared Remote-Control Testing.
- Electronics Repair.
- PCB Troubleshooting.
- Component Sorting.
- Educational Electronics Laboratories.
- Electronics Hobby Projects.
- Replacement Component Verification.

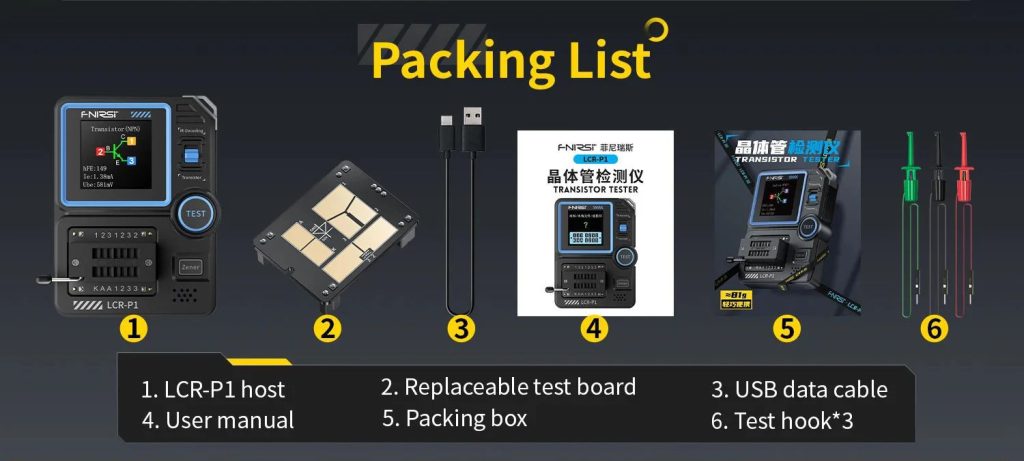

Package Contents:
- 1x FNIRSI LCR-P1 Host
- 1x Replaceable Test Board
- 1x USB Type-C Cable
- 3x Test Hook
- 1x User Manual
- 1x Packing Box
