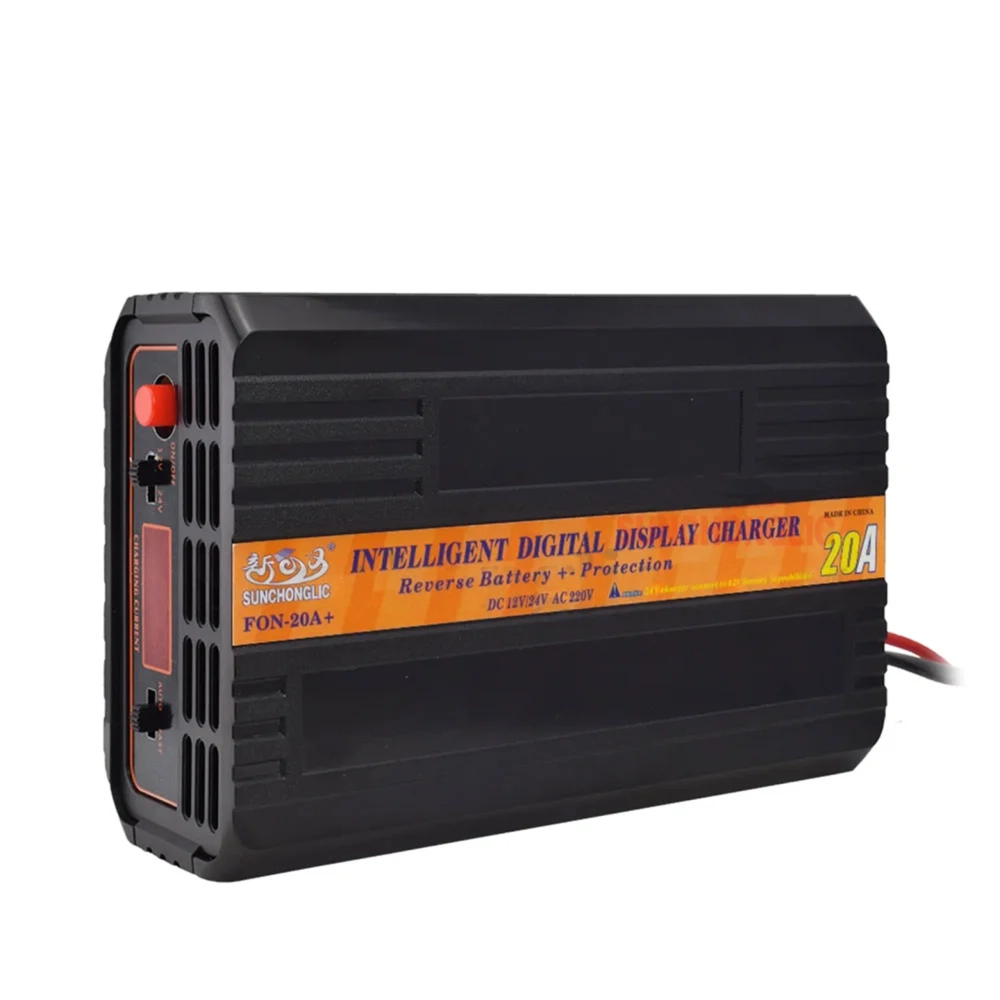

FON-20A Lead Acid Battery Charger With Digital Display 12V/24VDC 20A
The FON-20A+ is a high-efficiency, intelligent battery charger designed for 12V and 24V lead-acid batteries. Equipped with an advanced Three-Phase Charging Mode (Constant Current, Constant Voltage, and Floating Charge), it ensures a full charge while protecting the battery from overcharging. The built-in digital display provides real-time monitoring of the charging current, and the manual “Auto/Fast” toggle allows users to choose between a gentle smart charge or a rapid power boost.
Features
- Dual Voltage Compatibility
- Intelligent Three-Step Charging
- Real-Time Digital Display
- Reverse Polarity Protection
- Auto & Fast Mode Switch
- Built-in Cooling Fan
- Compact & Durable Design
Specifications
| Feature | Details |
| Model | FON-20A+ |
| Input Voltage | AC 220V (50Hz/60Hz) |
| Output Voltage | DC 12V / 24V |
| Max Charging Current | 20 Amperes |
| Charging Technology | Pulse Width Modulation (PWM) |
| Dimensions | 185 x 120 x 68 mm |
| Weight | 750 g |
| Plug Type | standard 2-pin (EU/Standard) |
| Cooling | Internal Fan |
Applications
- Automotive
- Power Backup
Package Content
- 1x FON-20A Lead Acid Battery Charger With Digital Display 12V/24VDC 20A
- 1x Integrated DC Charging Cables (Red/Black Alligator Clips)
- 1x Integrated AC Power Cord
- 1x User Manual
