Foxconn PJ306E 3.5mm Audio Jack PCB Mount 3 Ports

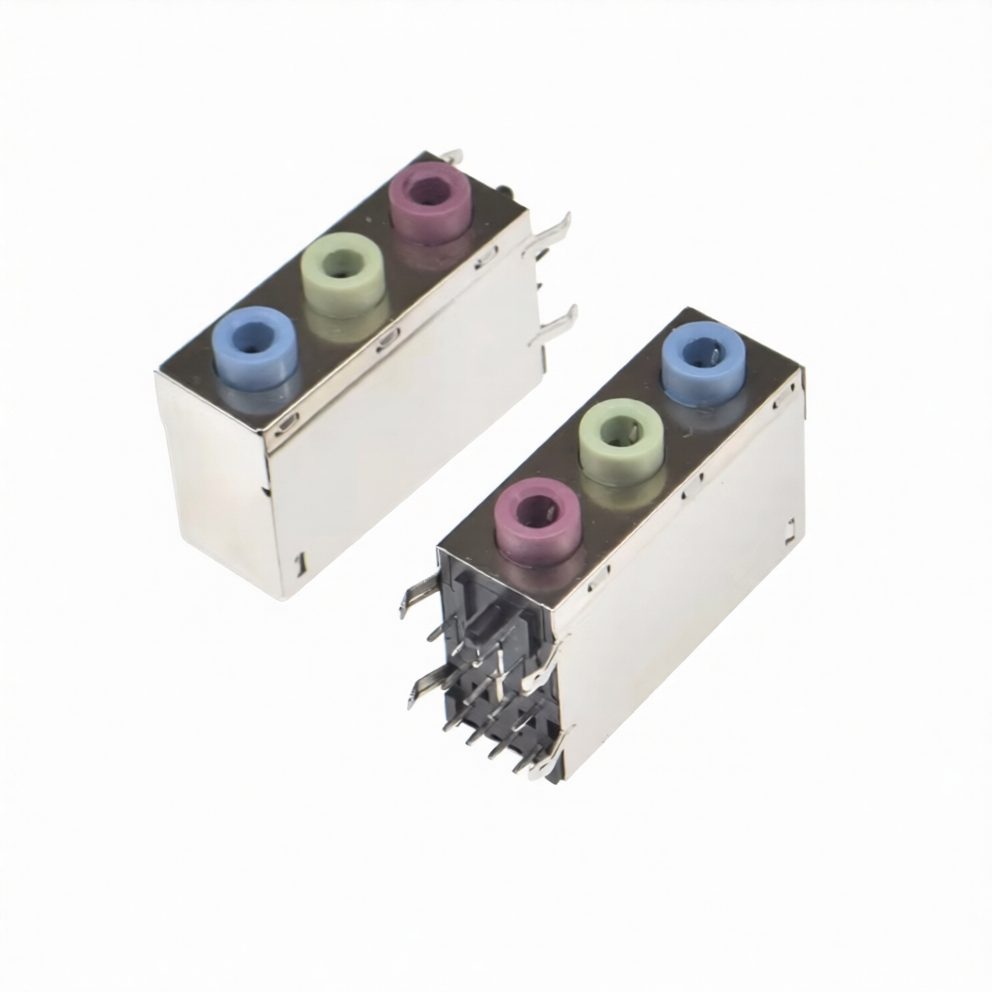

The Foxconn PJ306E is a PCB-mount 3-port 3.5mm audio jack connector designed for audio signal input and output applications. It integrates three standard 3.5mm audio sockets into a single compact shielded module, making it ideal for desktop computer motherboards, sound cards, multimedia equipment, and embedded audio systems. The color-coded ports simplify audio device connections for users by identifying microphone, line-in, and audio output channels.
Featuring a durable metal-shielded construction and through-hole PCB mounting design, the PJ306E provides reliable mechanical stability and signal integrity. Its compact form factor helps save board space while offering multiple audio interfaces in a single component. The connector is suitable for both consumer and industrial electronic products requiring analog audio connectivity.
Features:
- Triple integrated 3.5mm audio ports.
- Color-coded connectors for easy identification.
- PCB through-hole mounting.
- Metal shielding for improved signal protection.
- Compact space-saving design.
- Reliable mechanical retention.
- Suitable for audio input and output signals.
- Durable construction for repeated plug insertion.
- Compatible with standard 3.5mm audio plugs.
- Easy integration into electronic assemblies.

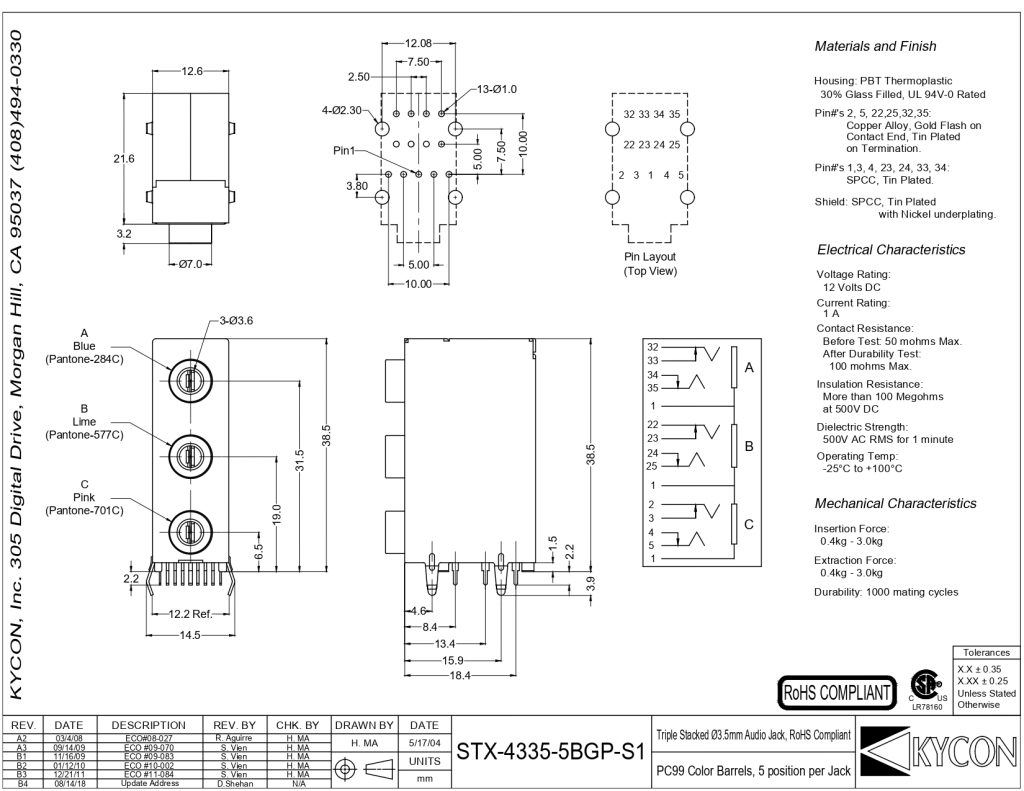

Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | Foxconn |
| Connector Type | Audio Jack |
| Number of Ports | 3 |
| Jack Size | 3.5mm |
| Mounting Type | PCB Through-Hole |
| Contact Type | Audio Signal Contacts |
| Shielding | Metal Shielded |
| Orientation | Right Angle PCB Mount |
| Housing Material | Engineering Plastic & Metal |
| Color Identification | Blue, Green, Pink |
| Signal Type | Analog Audio |

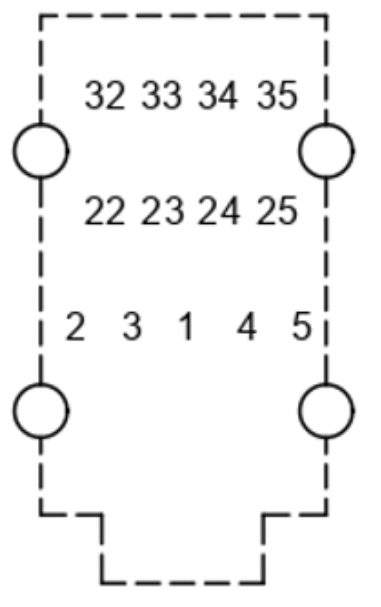

Pinout:
Footprint:
Applications:
- Computer motherboards.
- PC sound cards.
- Multimedia systems.
- Audio interface boards.
- Embedded audio devices.
- Industrial control panels with audio functions.
- Public announcement systems.
- Consumer electronics.
- Educational electronics projects.
- Custom audio equipment.
Package Included:
- 1x Foxconn PJ306E 3.5mm Audio Jack PCB Mount 3 Ports.
