Applications:
- Telecommunication Equipment.
- Measurement Instruments.
- Industrial Control Systems.
- Office Equipment.
- Medical Devices.
- Security Systems.
- Consumer Electronics.
FUJITSU A24W-K Signal Relay 24VDC 1A 10 Pin
FUJITSU A24W-K is a compact 24VDC signal rely with 1A contact rating, 10-pin layout, low power use, high reliability for precise low-level signal switching.
210.00 EGP
Buy NowFUJITSU A5W-K Signal Relay 5VDC 1A 10 Pin
The FUJITSU A24W-K Signal Relay 24VDC 1A 10 Pin is a compact signal relay engineered for dependable switching in low-level electronic circuits. Operating at 24VDC, it features a 10-pin configuration and supports a contact rating of up to 1A, making it suitable for a range of signal control applications. Its design ensures low power consumption and high sensitivity, while gold-clad contacts provide excellent conductivity and contact reliability. The A24W-K offers high insulation resistance and long mechanical life, making it ideal for use in telecommunications, industrial automation, office equipment, and test instruments that demand accurate and stable signal switching performance.
Features:
- 24VDC Coil Voltage Efficient operation for standard control voltage applications.
- 1A Contact Rating Suitable for switching low-power signals and loads with precision.

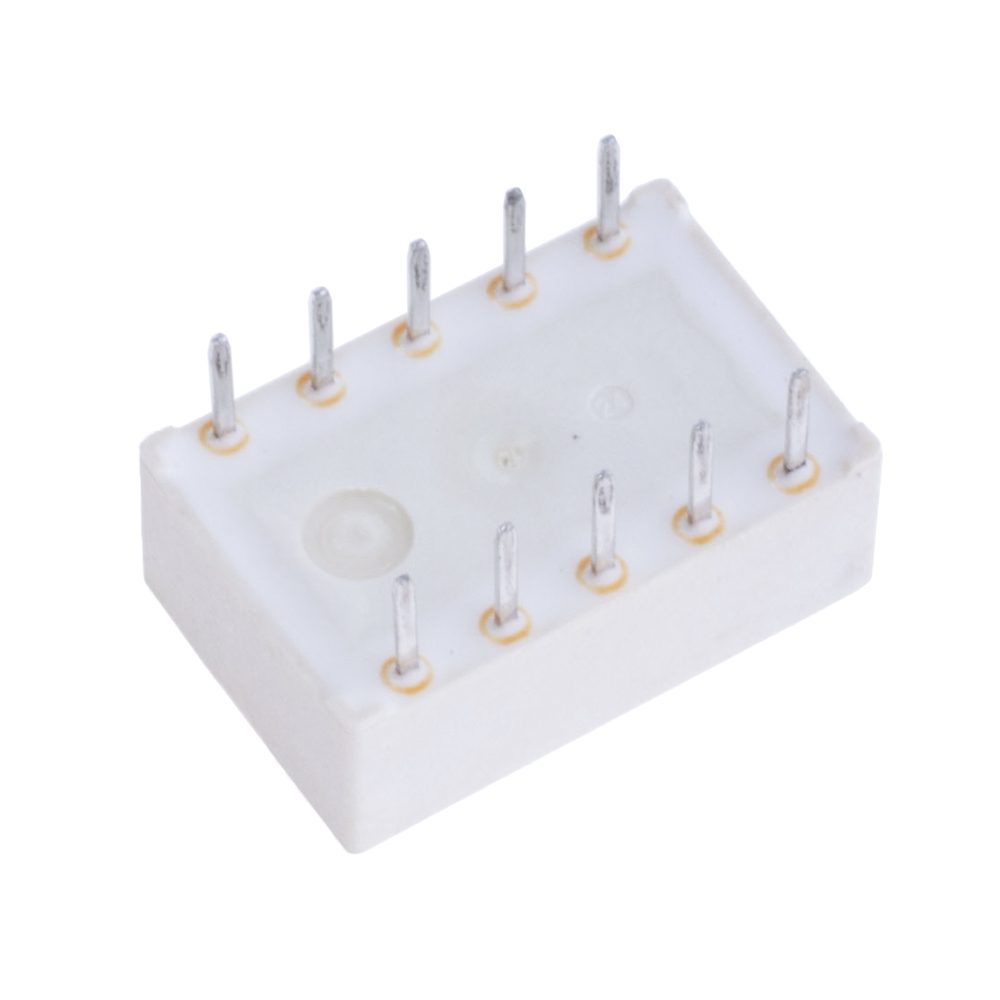

- 10-Pin Configuration Compact layout ideal for dense PCB designs.
- Gold-Clad Contacts Provides excellent conductivity and corrosion resistance.
- High Sensitivity Capable of accurate signal switching in low-level circuits.
- High Insulation Resistance Ensures strong electrical isolation between contacts and coil.
- Compact and Lightweight Designed for space-saving integration in electronic systems.
- Long Mechanical and Electrical Life Built for durability in demanding applications.
Dimensions:
Specifications:
| Parameter | Value |
|---|---|
| Brand | FUJITSU |
| Manufacturer | Takamisawa (Japan) |
| Model | A24W-K |
| Product Main Category | General-Purpose Relay |
| Relay Type | Signal Relay |
| Contact Material | Silver Alloy |
| Contact Termination | PCB |
| Mounting Type | Through-hole |
| Enclosure | Sealed plastic case |
| Contact Form | DPDT (Double Pole Double Throw) |
| Number of Pins | 10 Pin |
| Coil Voltage | 24VDC |
| Current | 1A |
| Contact Rating @ 30VDC | 1A |
| Contact Rating @ 120VAC | 0.5A |
| Coil Resistance | 2880 Ω |
| Switching Capacity | 62.5 VA / 30 W |
| Power Consumption | 200 mW |
| Dielectric Strength | 1000 VAC between open contacts |
| Insulation Resistance @ 500VDC | 1000 MΩ |
| Operating Temperature Range | -40 °C to +85 °C |
| Dimensions (L × W × H) | 14.7mm X 9.4mm X 5.5 mm |
Package Contents:
- 1 X FUJITSU A24W-K Signal Relay 24VDC 1A 10 Pin
