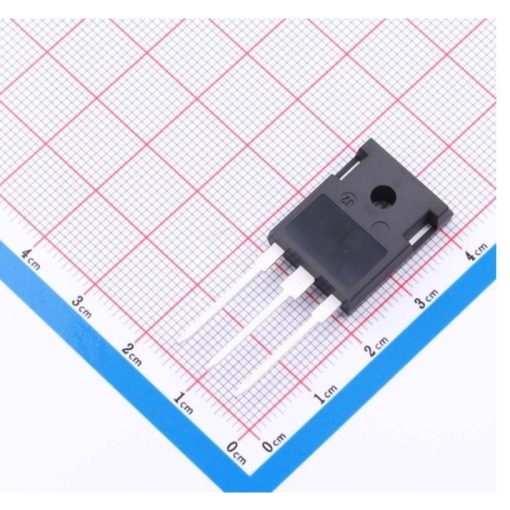

G40T120FDL5 IGPT Transistor 1200V 40A TO-247
G40T120FDL5 IGBT Transistor TO-247 is a high-performance 1200V power switching device designed for efficient industrial and high-frequency applications.
85.00 EGP
In stockSKU 3496300147182
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
G40T120FDL5 IGPT Transistor 1200V 40A TO-247
The G40-T120FDL5 IGBT Transistor in TO-247 package is a high-efficiency power semiconductor device engineered for demanding switching applications. This Insulated Gate Bipolar Transistor (IGBT) combines the high input impedance and fast switching characteristics of a MOSFET with the low conduction losses of a bipolar transistor, making it ideal for modern power electronics systems.
Feature:
- High collector-emitter voltage rating up to 1200V.
- Low saturation voltage for reduced conduction losses.
- Fast switching performance with low switching losses.
- Advanced trench and field-stop IGBT technology.
- High current handling capability up to 40A.
Specifications:
| Parameter | Value |
|---|---|
| Model | G40T120FDL5 |
| Package | TO-247 |
| Collector-Emitter Voltage | 1200V |
| Gate-Emitter Voltage | ±20V |
| Collector Current (T_C=100°C) | 40A |
| Collector Current (T_C=25°C) | 80A |
| Pulsed Collector Current | 160A |
| Power Dissipation (T_C=25°C) | 428W |
| V_CE(sat) (typ @ 40A) | 1.65V |
| Operating Junction Temperature | -40°C to +175°C |
Dimension:
Foot Print:
Applications:
- Uninterruptible power supplies (UPS).
- Welding converters and machines.
- High-frequency DC-DC and AC-DC converters.
- Industrial motor drives and inverters.
- Solar and renewable energy inverters.
- Induction heating equipment.
- Power factor correction circuits.
- Professional power electronics and automation systems.
Package Include:
1x G40-T120FDL5 IGPT Transistor TO-247
Datasheet:
