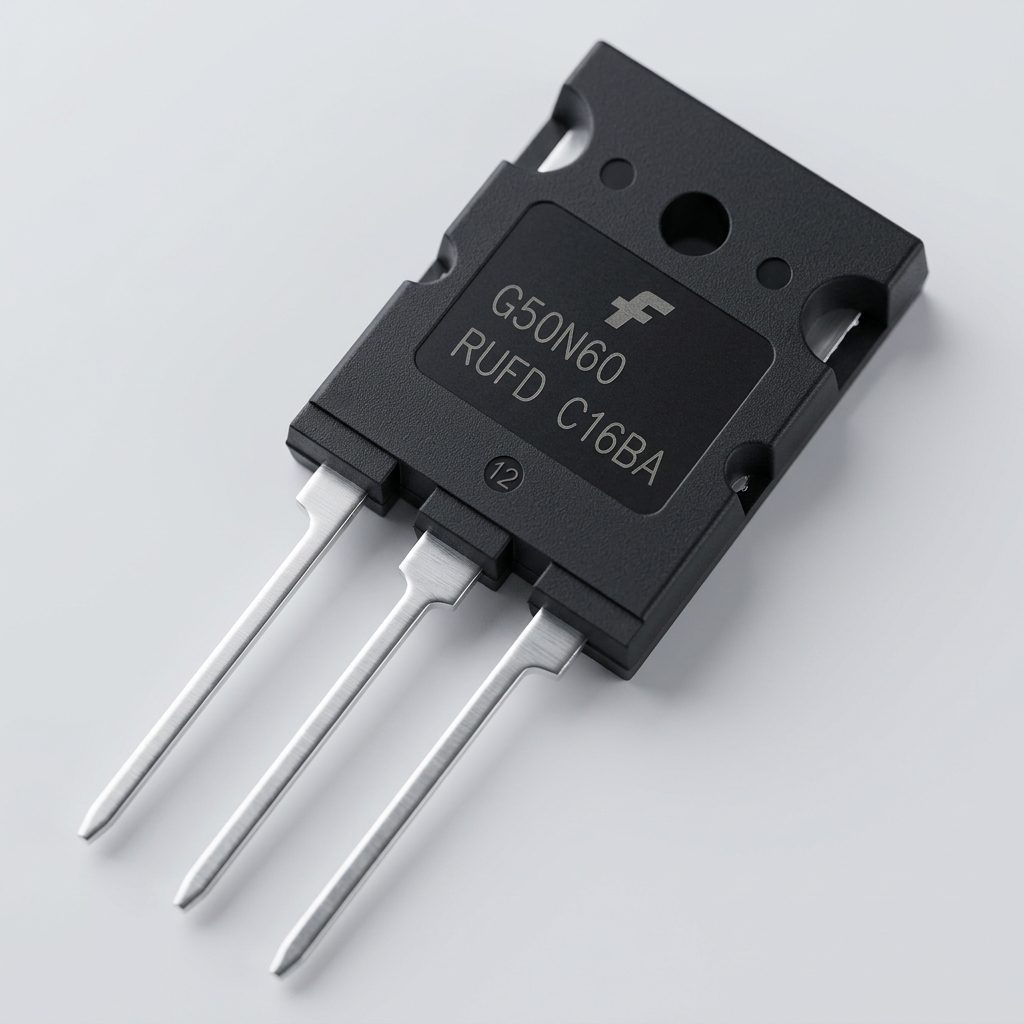

G50N60RUFD IGBT Transistors 600V 50A TO-264
The G50N60RUFD is a high-voltage IGBT commonly used for motor control, UPS systems, and general-purpose inverter circuits requiring high-current switching and short-circuit ruggedness.
115.00 EGP
In stockSKU 3496300159710
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
G50N60RUFD IGBT Transistors 600V 50A TO-264
The G50N60RUFD, corresponding to the SGL50N60RUFD device in the supplied datasheet, is a 600 V, 50 A short-circuit-rated Insulated Gate Bipolar Transistor designed for high-power switching applications. It combines low conduction and switching losses with short-circuit ruggedness, making it suitable for power electronic circuits where reliable switching of high voltages and currents is required. The device has a high input impedance and supports high-speed switching operation.
This IGBT is designed for applications such as motor control, uninterruptible power supplies, and general inverters. It provides a 600 V collector-emitter voltage rating, a 50 A collector current rating at a 100°C case temperature, and a 150 A pulsed collector current rating. The device also includes an integrated diode and has a short-circuit withstand time of 10 µs at 100°C case temperature.
Features:
- High-voltage IGBT design.
- Short-circuit ruggedness.
- High-speed switching.
- Low conduction and switching losses.
- High input impedance.
- Integrated freewheeling diode.
- Suitable for high-power switching circuits.
- Designed for motor control, UPS, and inverter applications.
Specifications:
| Parameter | Value |
|---|---|
| Part Number | G50N60RUFD |
| Device Type | IGBT |

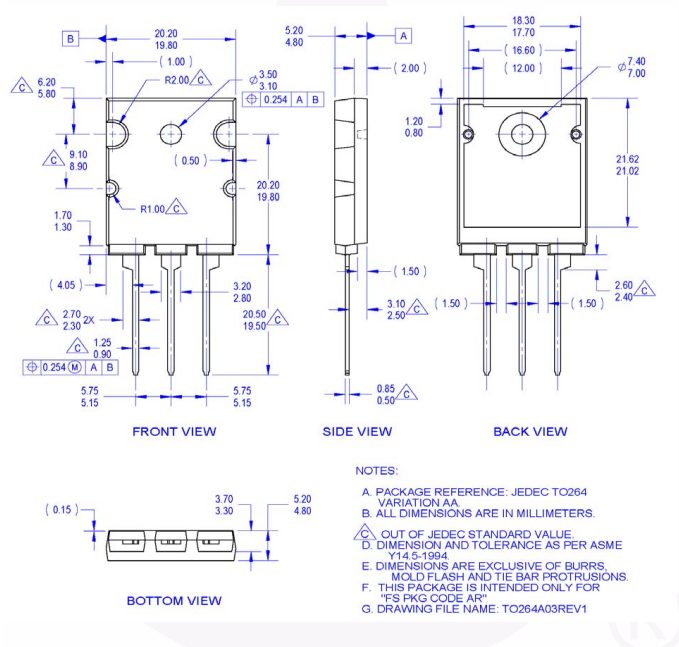

| Package | TO-264, 3 Lead |
| Collector-Emitter Voltage (VCES) | 600 V |
| Gate-Emitter Voltage (VGES) | ±20 V |
| Collector Current @ TC = 25°C | 80 A |
| Collector Current @ TC = 100°C | 50 A |
| Pulsed Collector Current (ICM) | 150 A |
| Collector-Emitter Saturation Voltage | 2.2 V @ 50 A, 15 V gate drive |
| Gate-Emitter Threshold Voltage | 5.0–8.5 V |
| Short-Circuit Withstand Time | 10 µs @ 100°C |
| Maximum Power Dissipation @ TC = 25°C | 250 W |
| Maximum Power Dissipation @ TC = 100°C | 100 W |
| Operating Junction Temperature | -55 to +150°C |
| Storage Temperature | -55 to +150°C |
| IGBT Junction-to-Case Thermal Resistance | 0.5°C/W |
| Diode Junction-to-Case Thermal Resistance | 1.0°C/W |
| Input Capacitance | 3311 pF |
| Output Capacitance | 399 pF |
| Reverse Transfer Capacitance | 139 pF |
| Total Gate Charge | 145 nC |
| Gate-Emitter Charge | 25 nC |
| Gate-Collector Charge | 70 nC |
| Turn-On Delay Time | 26 ns @ 25°C |
| Rise Time | 89 ns @ 25°C |
| Turn-Off Delay Time | 66 ns @ 25°C |
| Fall Time | 118 ns @ 25°C |
| Diode Forward Voltage | 1.9 V @ 30 A, 25°C |
| Manufacturer | Fairchild Semiconductor |
Pinout:
| Pin | Name | Function |
|---|---|---|
| 1 | Gate (G) | Controls IGBT switching |
| 2 | Collector (C) | High-current collector terminal |
| 3 | Emitter (E) | Emitter/current return terminal |
Applications:
- Motor control.
- Uninterruptible Power Supplies (UPS).
- General-purpose inverters.
- High-power switching circuits.
- Power conversion circuits.
- Industrial inverter systems.
Packages Included:
- 1x G50N60RUFD IGBT Transistors 600V 50A TO-264.
