GA25-370 DC Gear Motor with Encoder 12V 280RPM with Bracket
The GA25-370 is a compact precision metal gear motor featuring an integrated encoder for accurate speed and position monitoring. Combining a 370-size DC motor with a metal reduction gearbox, it delivers reliable torque and stable rotational speed while providing encoder feedback for closed-loop control systems. The included mounting bracket simplifies installation in robotic platforms, automation projects, and smart machinery.
This motor is widely used in smart robots, home automation devices, medical equipment, and educational projects. The integrated encoder allows microcontrollers and motor drivers to monitor shaft movement, making the motor suitable for applications requiring precise motion control, speed regulation, distance measurement, and directional feedback. The metal gear train ensures durability and long service life under continuous operation.
Features:
- Integrated quadrature encoder for speed and position feedback.
- Precision metal gearbox construction.
- High torque output compared to standard DC motors.
- Stable and reliable operation.
- Suitable for closed-loop control systems.
- Compact and lightweight design.
- Durable metal gear transmission.
- Supports bidirectional rotation.
- Easy mounting with included bracket.
- Suitable for robotic drive systems.
- Long operational life.
- Low noise operation.
- Ideal for automation and motion control projects.
Specifications:
| Parameter | Value |
|---|---|
| Product Model | GA25-370 |
| Motor Type | DC Geared Motor with Encoder |
| Rated Voltage | 12V DC |
| No-Load Speed | 280 RPM |
| Rated Torque | 2 kg·cm |
| Gearbox Type | Precision Metal Gearbox |
| Encoder Type | Incremental Encoder |
| Motor Diameter | 25 mm |
| Shaft Diameter | 4 mm |
| Shaft Length | 11.5 mm |
| Motor Weight | Approximately 95 g |
| Output Power Range | Approximately 0.3W to 10W |
| Rotation Direction | CW / CCW |
| Mounting Method | Bracket Mounting |

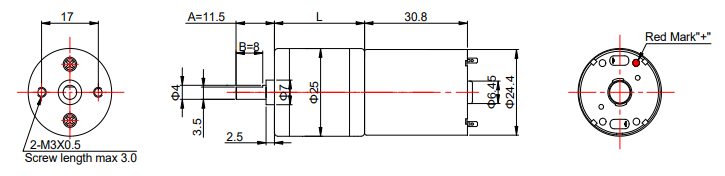

L=18mm
Pinout:
| Wire Type | Function |
|---|---|
| Motor + | DC Motor Positive |
| Motor – | DC Motor Negative |
| Encoder VCC | Encoder Power Supply |
| Encoder GND | Encoder Ground |
| Encoder Channel A | Pulse Output A |
| Encoder Channel B | Pulse Output B |
Applications:
- Mobile robots.
- Line follower robots.
- Smart vehicles.
- AGV systems.
- Educational robotics.
- Motion control systems.
- Conveyor mechanisms.
- Smart home devices.
- Medical instruments.
- Electric toys.
- Position control projects.
- Automation equipment.

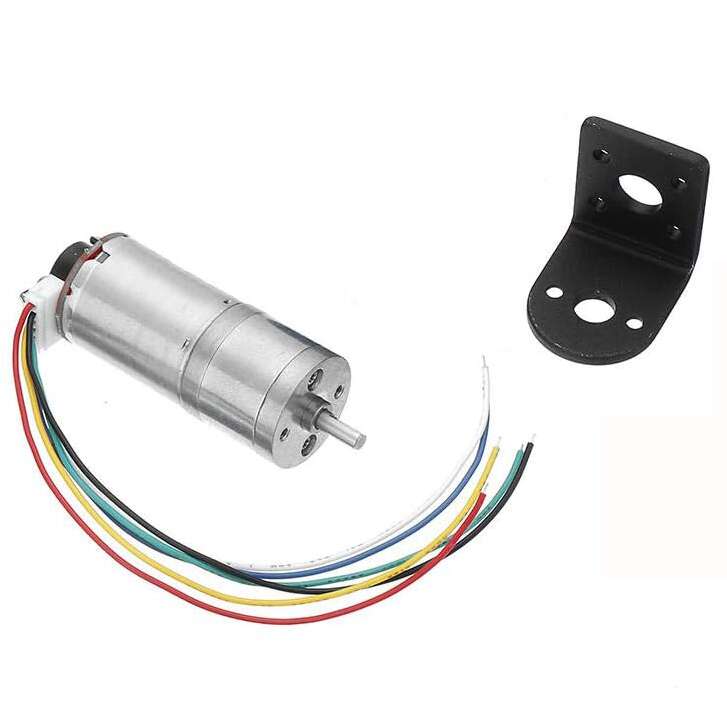

Package Includes:
- 1x GA25-370 DC Gear Motor with Encoder 12V 280RPM.
- 1x Mounting Bracket 25mm.
- 6x Wires.
