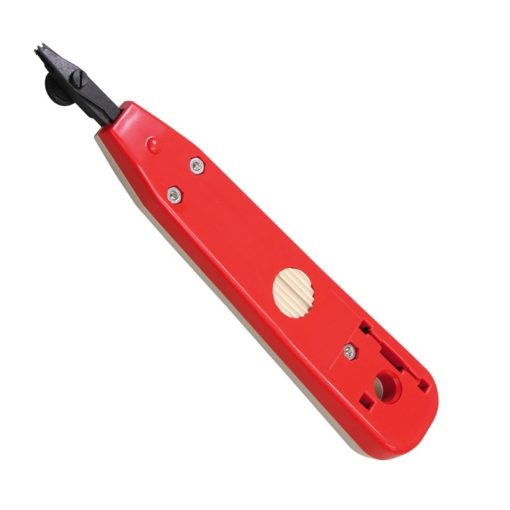

GOLDTOOL TTB-330 Insertion Tool for 100 pair MDF71 Terminal Blocks

GOLDTOOL TTB-330 Insertion Tool for 100 pair MDF71 Terminal Blocks

The GOLDTOOL TTB-330 Insertion Tool is a specialized hand tool designed for terminating and inserting wires into telecommunications terminal blocks, particularly 100-pair MDF71 distribution blocks. It is commonly used in network and telephone infrastructure installations where reliable cable termination is essential. The tool enables technicians to securely insert wires into insulation displacement connectors (IDC) without stripping the insulation, ensuring a fast and efficient wiring process. Its punch-down mechanism applies controlled pressure to push the wire into the terminal slot while simultaneously cutting off the excess wire for a clean and professional finish.

The TTB-330 insertion tool is engineered to provide consistent performance during repetitive wiring tasks. It incorporates a spring-loaded impact mechanism that delivers the correct amount of force required for proper wire seating in Krone-type terminals. This mechanism helps maintain stable connections and reduces the risk of wiring errors or loose contacts. The tool’s ergonomic design ensures comfortable handling during extended use, allowing technicians to perform large wiring jobs with reduced hand fatigue. The durable construction, combining reinforced plastic housing with metal components, enhances the tool’s longevity and reliability in professional environments.

In telecommunication and data networking installations, precision and speed are crucial for maintaining efficient workflows. The GOLDTOOL TTB-330 tool helps installers achieve both by combining wire insertion and trimming into a single operation. Its compatibility with standard Krone-style IDC modules makes it suitable for structured cabling systems used in main distribution frames (MDF) and telecom cabinets. By ensuring proper wire seating and clean termination, the tool contributes to stable signal transmission and organized wiring systems. As a result, it has become a practical solution for technicians working on telephone exchanges, network cabinets, and communication infrastructure projects.

Features:

• Spring-loaded impact mechanism for consistent wire termination.
• Compatible with Krone-type IDC terminal modules.
• Inserts and trims wires in a single operation.
• Adjustable impact force for different wire gauges.
• Ergonomic handle for comfortable and prolonged use.
• Durable construction with reinforced ABS body and metal components.
• High-precision cutting blade for clean wire trimming.
• Designed for professional telecom and networking installations.
• Reliable termination for stable electrical connections.

Specifications:

Applications:

• Telecommunication Wiring.
• Networking Installations.
• LAN/WAN Networks.
• Telephone System Wiring.
• Electrical & Signal Wiring.
• Repair & Maintenance.

Package Contents:

• 1x GOLDTOOL TTB-330 Insertion Tool
