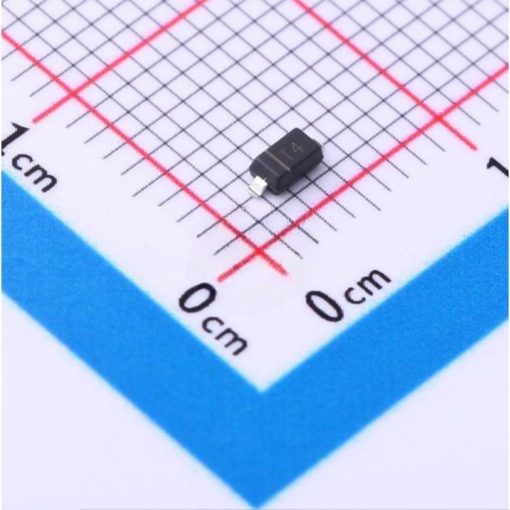

GOODWORK 1N4148W T4 SMD Switching Diode SOD-123
| PARAMETER | VALUE |
|---|---|
| Manufacturer | GOODWORK |
| Model Number |
1N4148WT4 |
| Description |
SMD Switching Diode 100V 0.15A SOD-123 |
| Datasheet | 1N4148W T4 |
| Certification | REACH |
1.00 EGP
Buy NowGOODWORK 1N4148W T4 SMD Switching Diode SOD-123
The GOODWORK 1N4148W T4 SMD Switching Diode SOD-123 is a high-speed switching diode designed for surface-mount applications. It features a maximum repetitive peak reverse voltage of 100V and a maximum average forward rectified current of 0.15A. The diode is housed in a compact SOD-123 package, making it suitable for automated placement and ideal for high-density PCB designs. Its fast switching speed and low forward voltage drop ensure efficient performance in various electronic circuits. The 1N41-48W T4 is commonly used in signal processing, protection circuits, and logic circuits, offering reliable and consistent performance across a wide temperature range.
Features:
- Fast Switching Speed.
- Surface Mount Package Ideally Suited for Automatic Insertion.
- For General Purpose Switching Applications.
- High Conductance.
Specifications:
| Category | Discrete Semiconductors/Diodes/Single Diodes |
|---|---|
| Manufacturer | GOODWORK |
| Package | SOD-123 |
| Non-Repetitive Peak Forward Surge Current | 1A |
| Reverse Leakage Current (Ir) | 1uA@100V |
| Reverse Recovery Time (trr) | 4ns |
| Operating Junction Temperature Range | -55℃~+150℃ |
| Voltage – DC Reverse (Vr) (Max) | 100V |
| Diode Configuration | Independent |
| Pd – Power Dissipation | 410mW |
| Voltage – Forward (Vf@If) | 1.25V@150mA |
| Current – Rectified | 150mA |

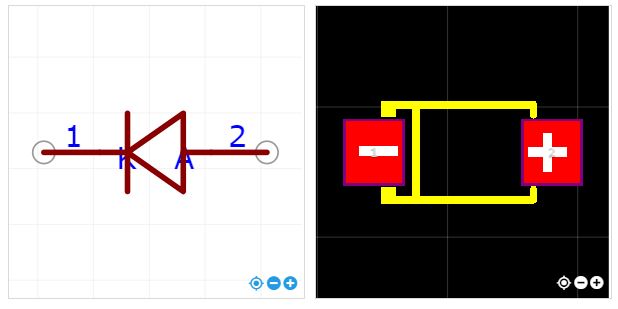

Foot Print:
Applications:
- Signal processing circuits.
- Protection circuits.
- Logic circuits.
- High-speed switching applications.
- Automated placement in surface-mount technology (SMT) assemblies.
Documents:
| PARAMETER | VALUE |
|---|---|
| Datasheet | 1N4148W T4 |
| Certifications | Quality Management System |
