Google AIY Vision Full Kit (V1) With Raspberry Pi Zero
The Google AIY Vision Full Kit (V1.1) with Raspberry Pi Zero WH is an advanced DIY artificial intelligence development kit designed to introduce machine learning and computer vision into maker projects. This kit enables users to build a fully functional intelligent camera capable of recognizing objects, detecting faces, and running neural network models locally using TensorFlow.
Features:
- Powered by a Raspberry Pi Zero WH for flexible and accessible embedded computing.
- Includes a Vision Bonnet board with an Intel Movidius MA2450 VPU for hardware-accelerated neural network processing.
- Features a Raspberry Pi Camera Board for capturing high-quality images and video.
- No soldering is required for assembly, making it accessible to makers of all skill levels.
- Packaged with a custom cardboard enclosure and all necessary mounting hardware.
- Supports the Google Assistant SDK and on-device image and vision recognition with TensorFlow.
- Comes with a pre-loaded MicroSD card containing the special Vision Kit system image for immediate setup.
Specifications:
| Parameter | Value |
|---|---|
| Product Name | Google AIY Vision Full Kit (V1.1) |
| Main Processor | Broadcom BCM2835 (Raspberry Pi Zero WH) |
| Co-processor | Atmel SAMD09 ARM Cortex-M0+ @48MHz |
| Vision Processing Unit | Intel Movidius MA2450 VPU (on Vision Bonnet) |
| Camera | Raspberry Pi Camera Board v2 (8 Megapixels) |
| Connectivity | 2.4GHz 802.11n Wi-Fi, Bluetooth 4.1/BLE, USB 2.0 OTG |
| Storage | 8GB MicroSD Card (Pre-loaded with Vision Kit OS) |
| GPIO | 2×20 Pin Male Header (Pre-soldered on Zero WH) |
| Power | 5V DC via micro-USB (requires external supply, not included) |
| Assembled Dimensions | 47mm × 75mm × 76mm |
| Assembled Weight | 66.2g |
| Software | Custom Raspbian-based Vision Kit OS, TensorFlow, Google Assistant SDK |
Applications:
- Object and facial recognition prototyping for smart devices.
- Educational tool for teaching machine learning and computer vision concepts.
- DIY smart security camera with custom-trained models.
- Interactive art installations powered by visual inputs.
- Robotics projects requiring visual perception and object tracking.

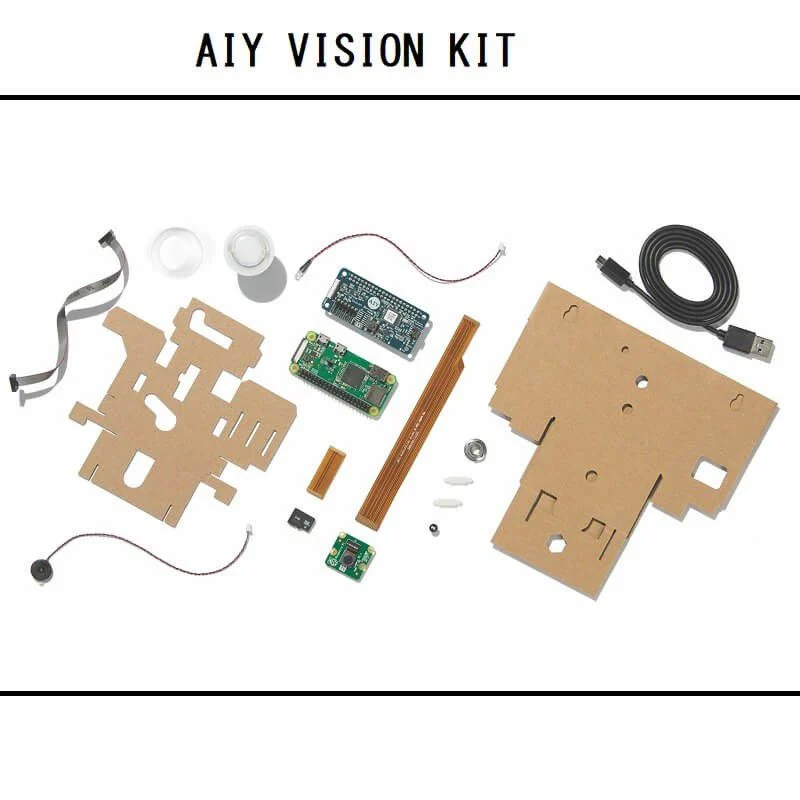

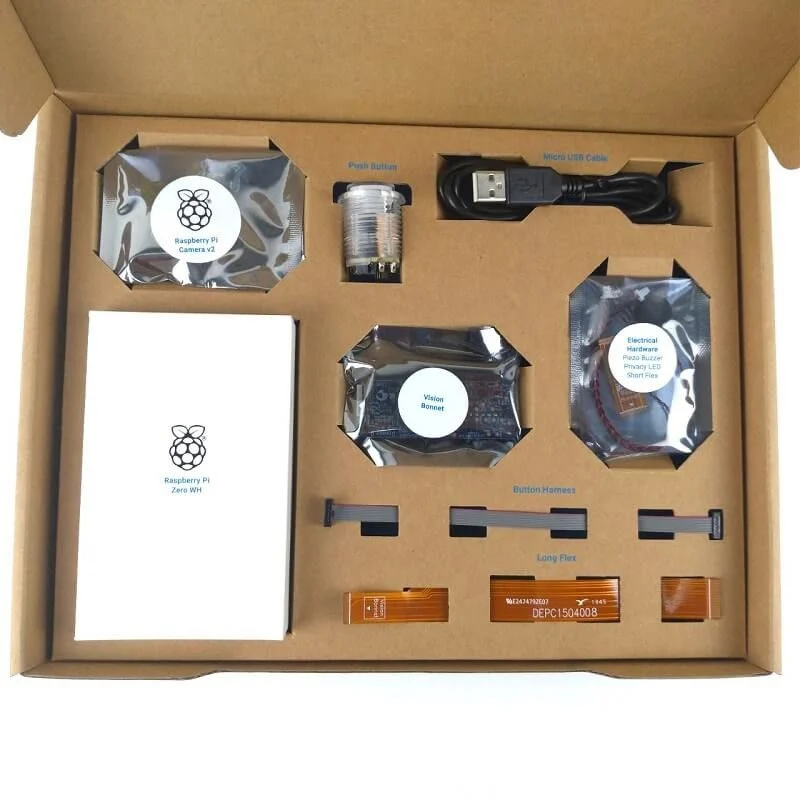

Package Include:
- 1x Vision Bonnet Board with Movidius VPU for Raspberry Pi (fully assembled).
- 1x Raspberry Pi Zero WH (fully assembled with pre-soldered headers).
- 1x Raspberry Pi Camera Board v2.
- 1x Pi Zero Camera flat flex cable.
- 1x CSI flat flex cable to connect to the camera.
- 1x 8GB MicroSD card for the operating system.
- 1x External Cardboard Box.
- 1x Internal Cardboard Frame.
- 2x 11mm Plastic standoffs.
- 1x Privacy LED.
- 1x LED Bezel.
- 1x Arcade Push Button.
- 1x Button harness.
- 1x Piezo buzzer.
- 1x USB cable (A to Micro-B).
- 1x Tripod mounting nut.
