H.R.Y 12025S12V DC Cooling Fan 12V 0.38A 120×120×25mm 2700 RPM
H.R.Y 12025S12V DC Cooling Fan 12V 0.38A, 2700 RPM, Sleeve Bearing, 120x120x25mm, 2-Pin Connector. Ideal for PC cases & cabinets.
180.00 EGP
Buy NowH.R.Y 12025S12V DC Cooling Fan 12V 0.38A 120×120×25mm 2700 RPM

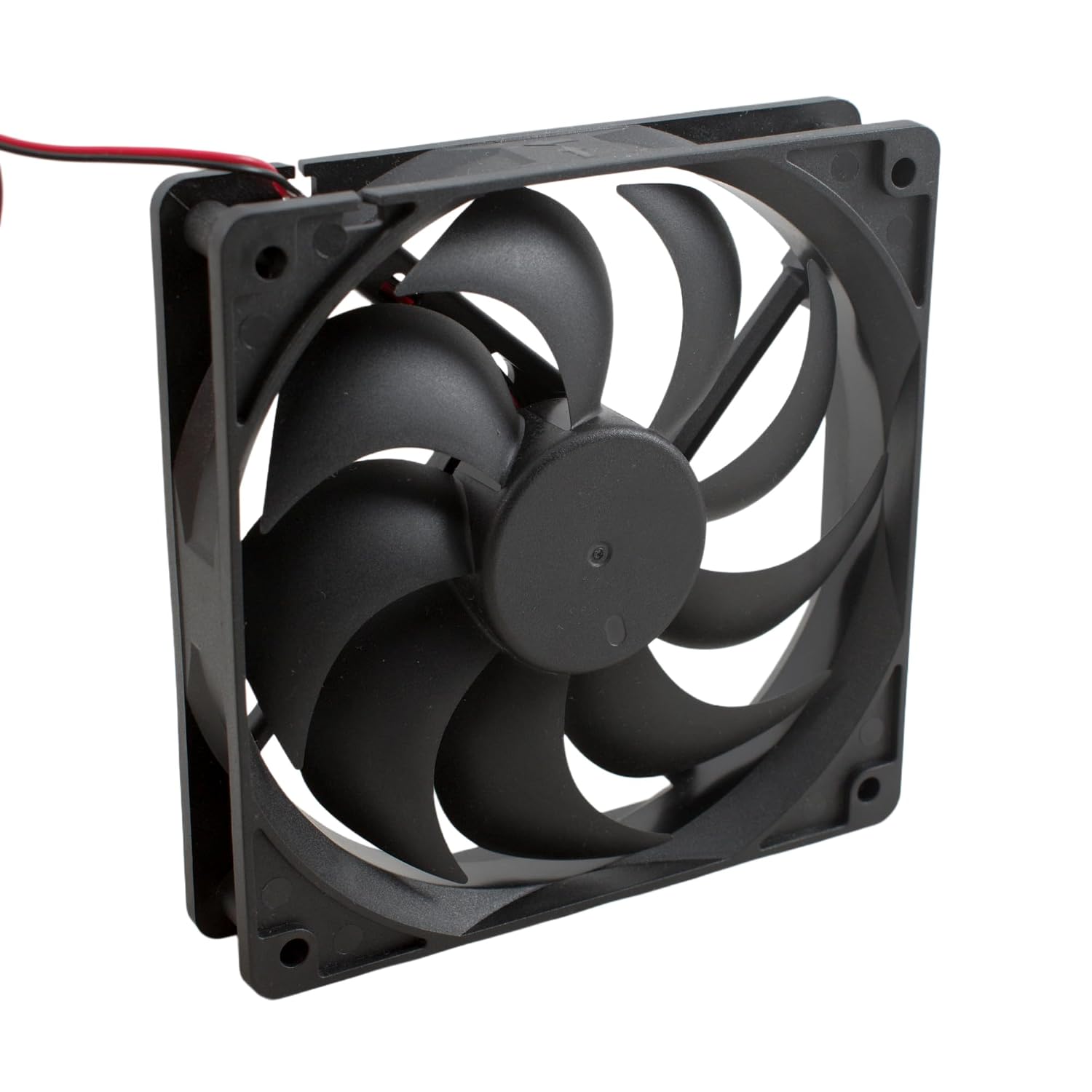

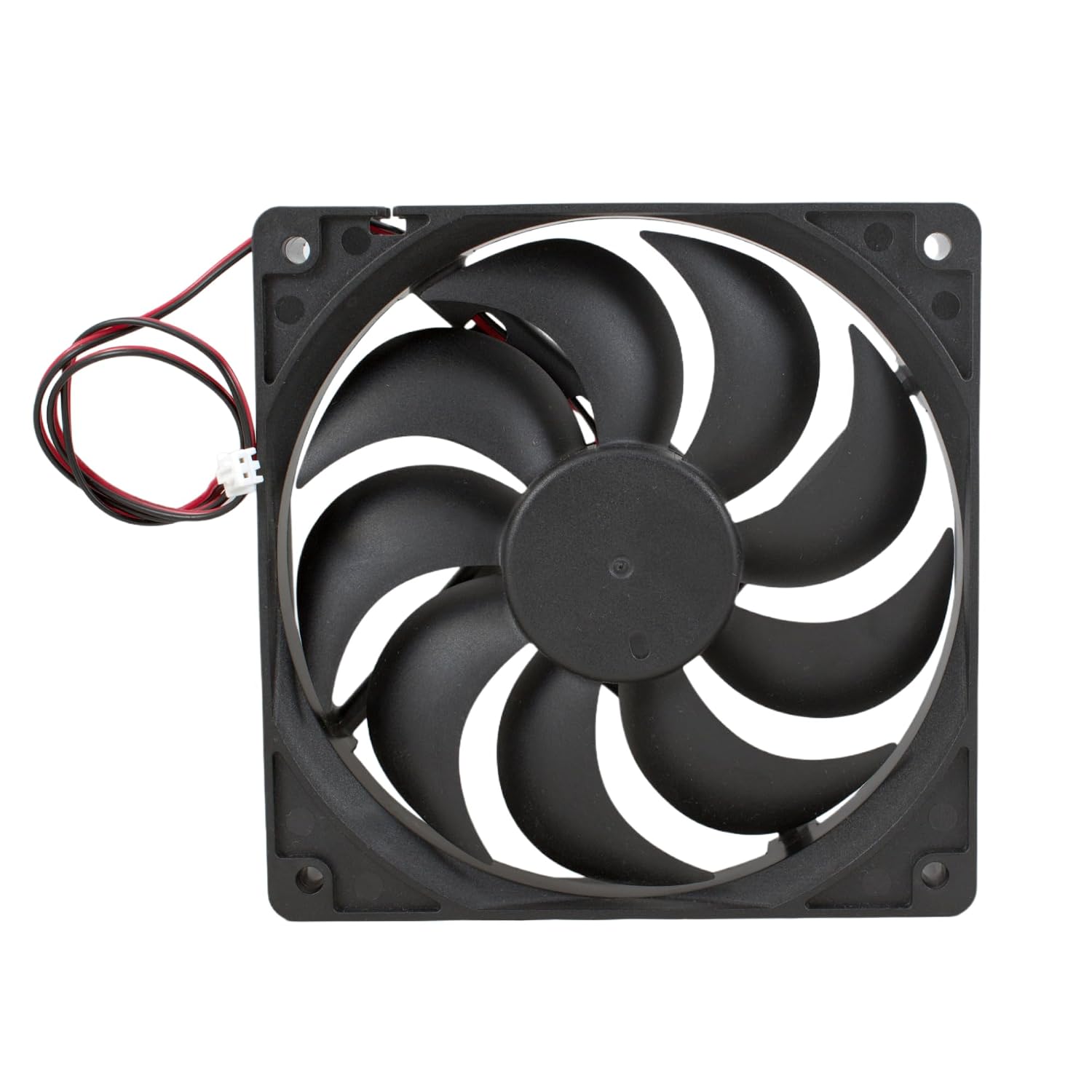

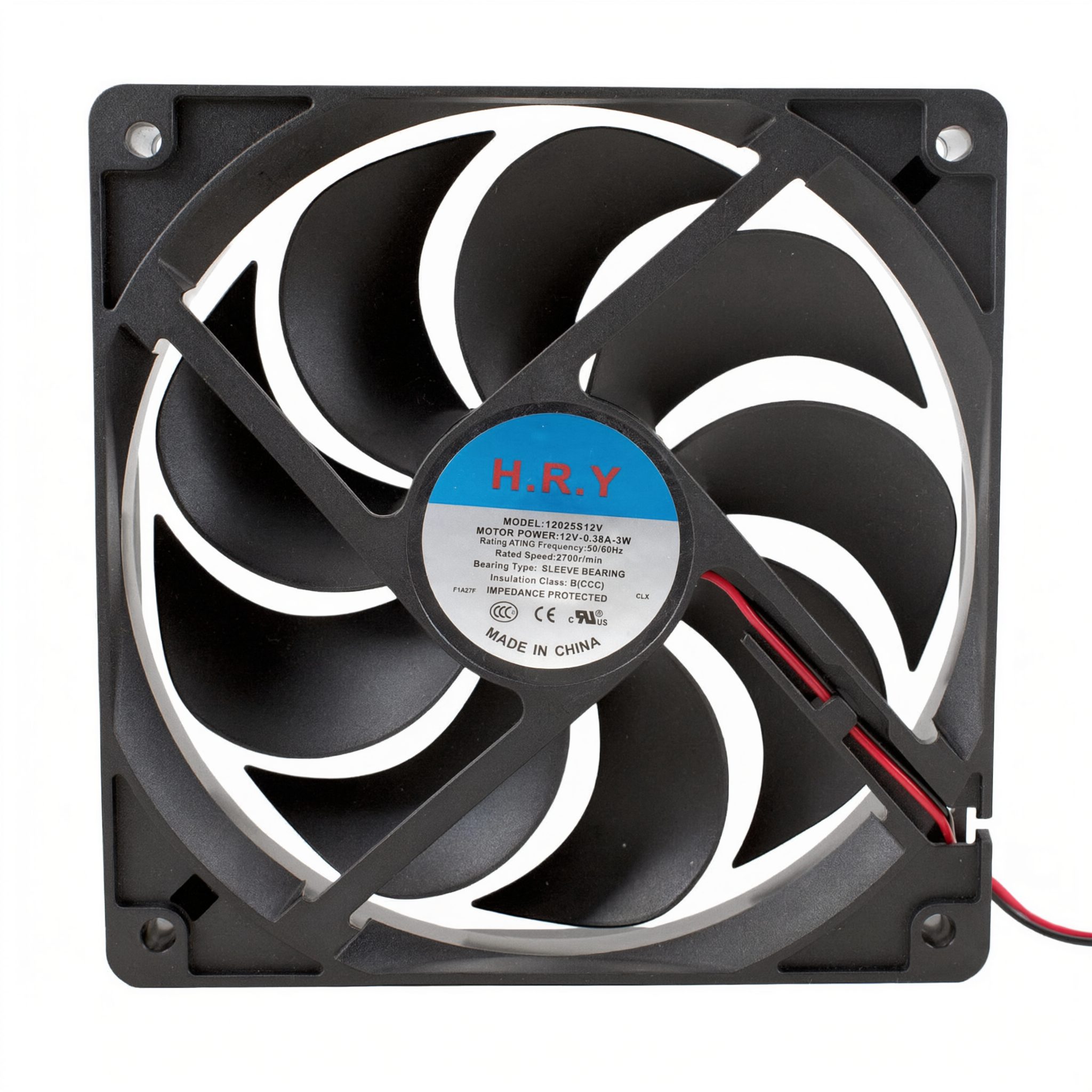

The H.R.Y 12025S12V is a standard‑size 120 mm axial DC cooling fan designed for reliable heat dissipation in electronic equipment and enclosures. Operating at 12V DC with a rated current of 0.38A, it runs at a rated speed of 2700 r/min, driving a seven‑blade impeller housed in a matte black plastic frame.
The fan uses a sleeve bearing and features an impedance‑protected motor with Class B insulation for dependable continuous operation. Its standard 120 × 120 × 25 mm (12 × 12 × 2.49 cm) frame includes four corner mounting holes for easy installation in standard 120 mm fan mounts.
Features
- Standard 120 mm frame: 120 × 120 × 25 mm (12 × 12 × 2.49 cm) – fits common 120 mm mounts
- 12V DC operation, rated 0.38A, motor power 12V‑0.38A‑3W
- Rated speed 2700 r/min (RPM) for effective airflow
- Sleeve bearing construction
- Impedance‑protected motor for reliable operation
- Insulation Class B (CCC)
Specifications
| Product Specifications | |
|---|---|
| Brand | H.R.Y |
| Model | 12025S12V |
| Type | DC Axial Cooling Fan |
| Rated Voltage | 12V DC |
| Rated Current | 0.38A |
| Motor Power | 12V – 0.38A – 3W |
| Rated Frequency | 50/60Hz |
| Rated Speed | 2700 r/min (RPM) |
| Bearing Type | Sleeve Bearing |
| Insulation Class | Class B (CCC) |
| Motor Protection | Impedance Protected |
| Dimensions | 120 × 120 × 25 mm (12 × 12 × 2.49 cm) |

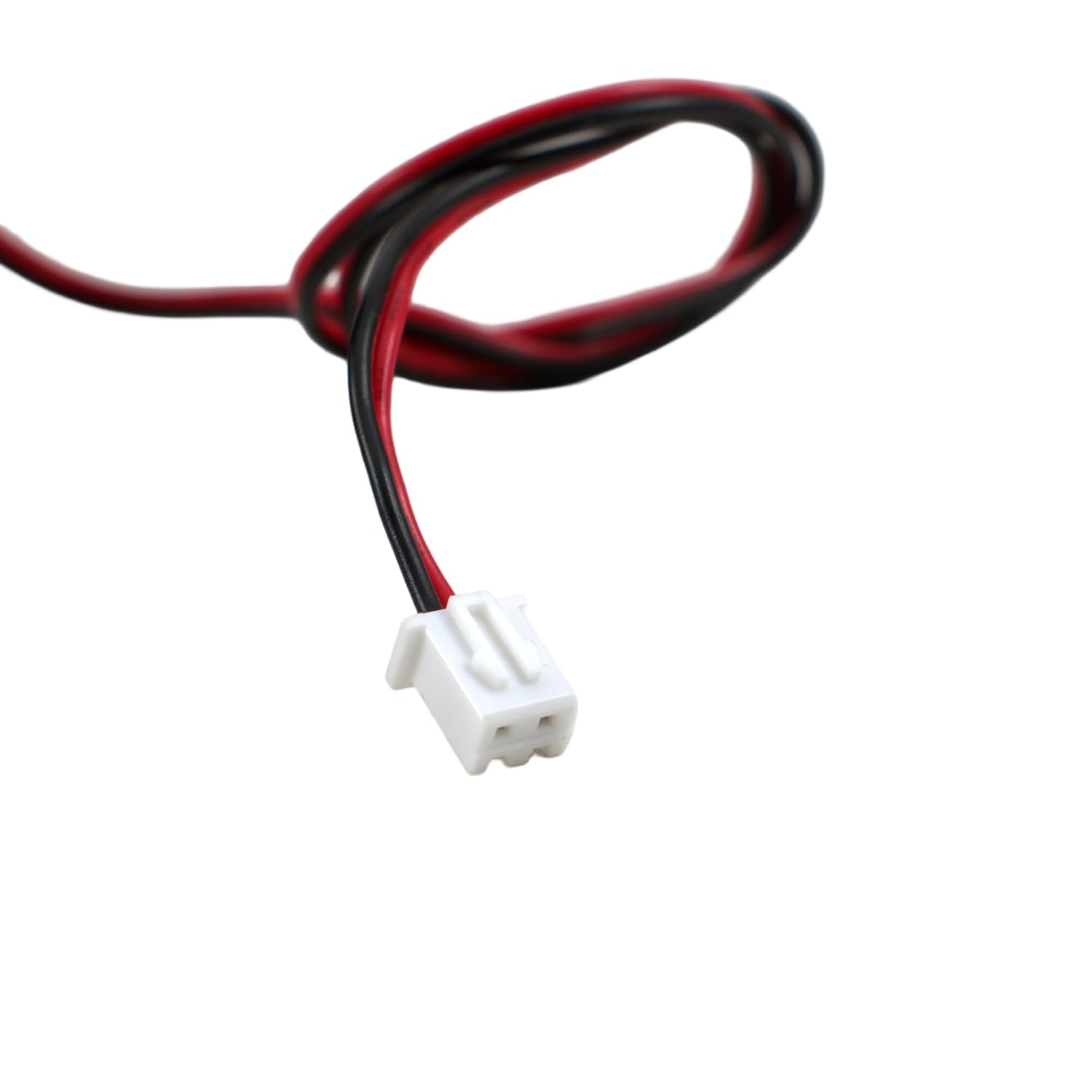

| Connector | 2-Pin Plug (White) |
| Lead Wires | Red (+) / Black (–) |
| Color | Black |
| Country of Origin | Made in China |
Applications
- Desktop PC cases, workstations and server chassis ventilation
- Network equipment, telecom and electrical control cabinets
- Power supplies, inverters and UPS units
- Amplifiers, projectors and office equipment cooling
- General‑purpose 12V DC heat dissipation and DIY ventilation projects
Package Content
- 1 x H.R.Y 12025S12V DC Cooling Fan 12V 0.38A 120×120×25mm 2700 RPM
