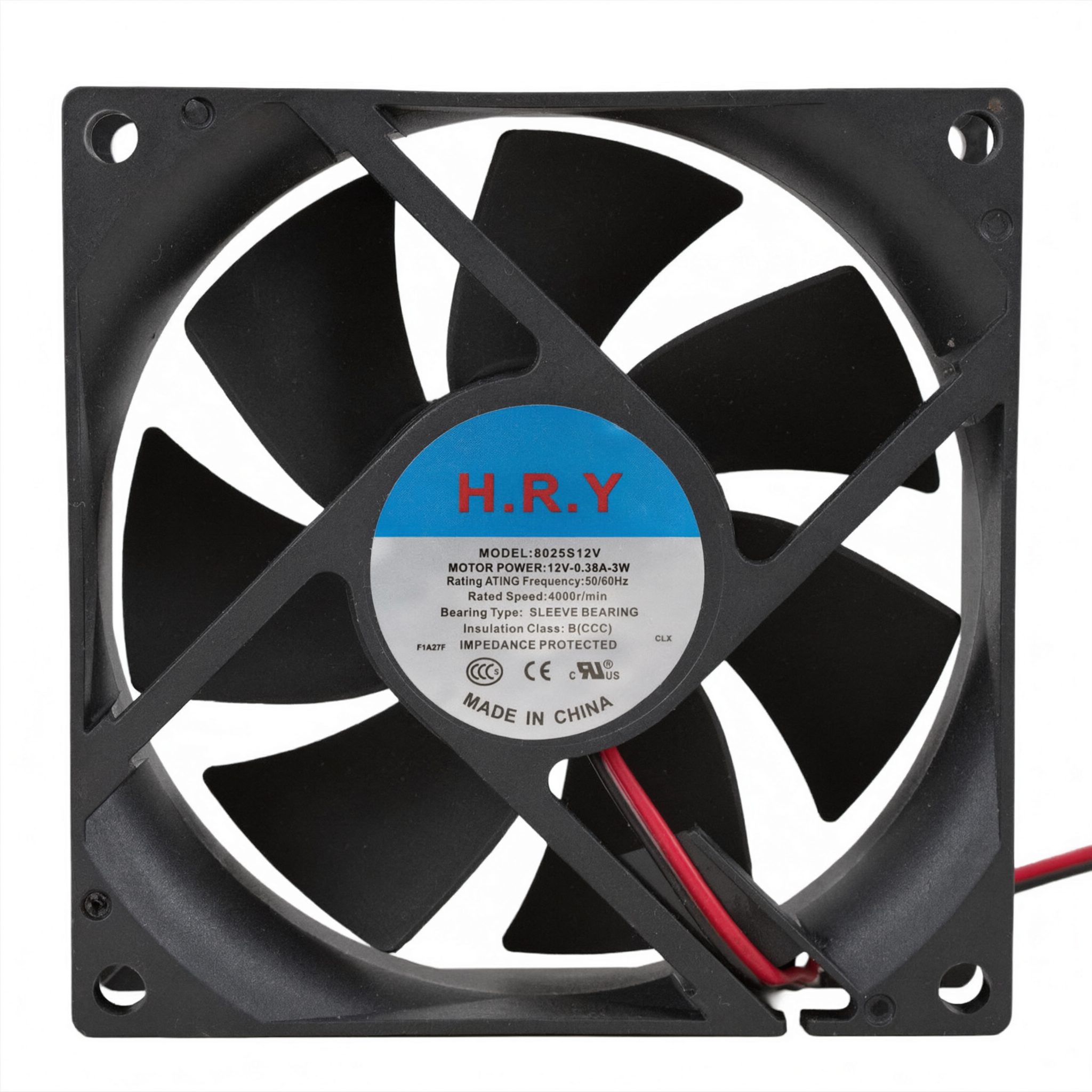

H.R.Y 8025S12V DC Fan 12V 0.38A 80x80x25mm 4000 RPM 2-Pin Connector
The H.R.Y 8025S12V is a compact DC axial cooling fan built in a standard 80 × 80 × 25 mm black plastic frame with a 7-blade impeller for efficient airflow. Running at a rated speed of 4000 r/min from a 12V DC, 0.38A (3W) supply, it delivers strong cooling performance for its size.

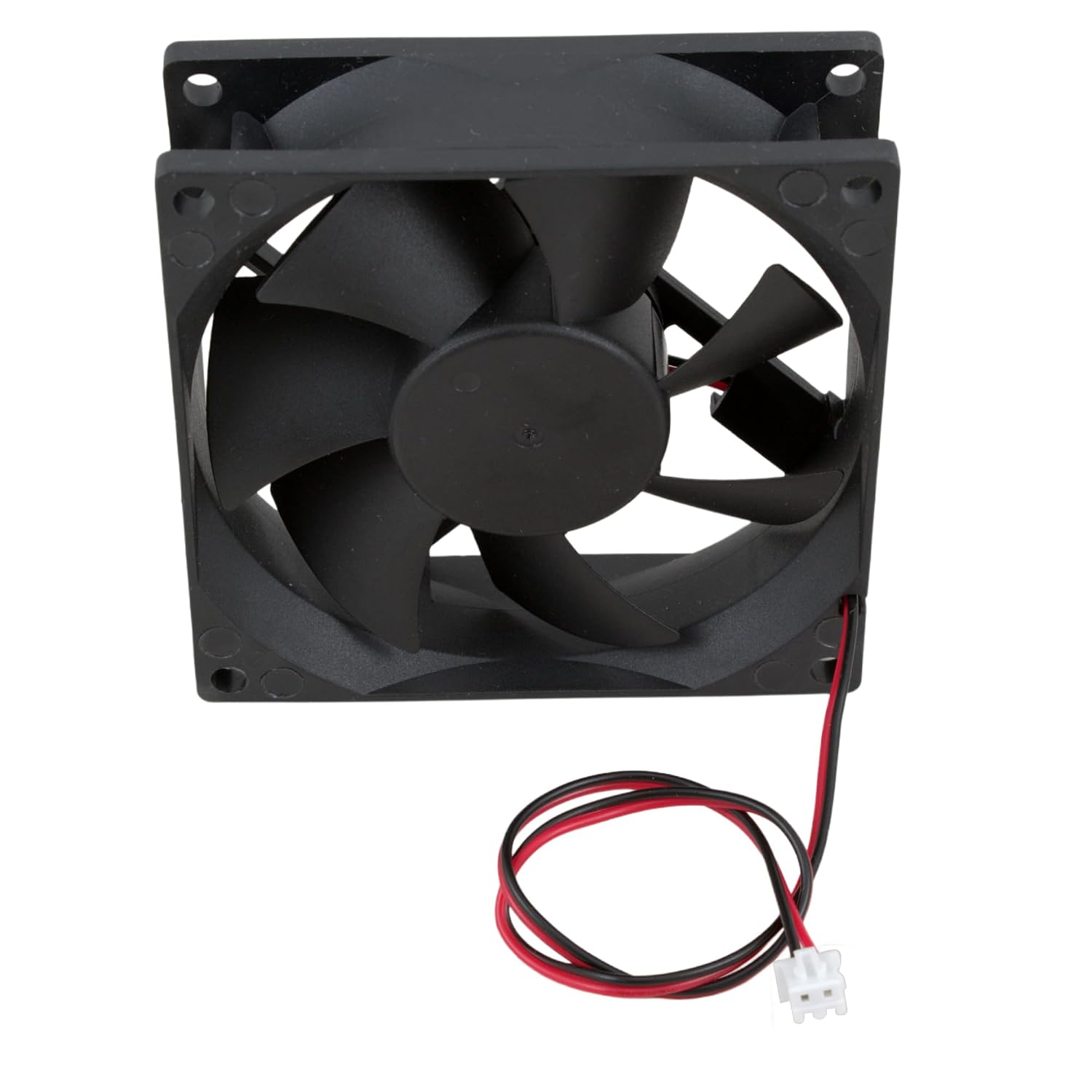

The motor uses a sleeve bearing and is impedance protected, with Class B (CCC) insulation. The fan comes with pre-attached red (+) and black (–) leads terminated in a white 2-pin connector for quick, solder-free installation, and the frame features moulded airflow/rotation direction arrows plus four corner mounting holes for universal fitment.
Features
- High-speed cooling: Rated 4000 r/min for strong airflow in compact spaces
- Standard 80mm form factor: 80 × 80 × 25 mm frame with 4 corner mounting holes
- 12V DC motor: 0.38A, 3W power consumption
- Sleeve bearing construction for quiet, cost-effective operation
- Impedance protected motor for added reliability
- Plug-and-play wiring: Red (+) / black (–) leads with white 2-pin connector
Specifications
| Brand | H.R.Y |
|---|---|
| Model | 8025S12V |
| Product Type | DC Axial Cooling Fan |
| Dimensions | 80 x 80 x 25 mm |
| Rated Voltage | 12V DC |
| Rated Current | 0.38A |
| Power Consumption | 3W |
| Rated Frequency | 50/60Hz |
| Rated Speed | 4000 r/min (RPM) |
| Bearing Type | Sleeve Bearing |
| Insulation Class | Class B (CCC) |
| Motor Protection | Impedance Protected |
| Connection | 2-Pin Connector, Red (+) and Black (-) Leads |
| Blades | 7 |
| Housing | Black Plastic Frame & Impeller |
| Mounting | 4 Corner Mounting Holes |
| Certifications | CCC, CE, cULus |
| Country of Origin | Made in China |
Applications
- PC cases, computer chassis & power supply units
- Routers, switches, modems & networking equipment
- Set-top boxes, DVR/NVR & AV amplifiers/receivers
- 3D printers, CNC controllers & electronics enclosures
- LED display cabinets & lighting equipment
- Home appliances & general industrial equipment cooling
Package Content
- 1 x H.R.Y 8025S12V DC Fan 12V 0.38A 80x80x25mm 4000 RPM 2-Pin Connector
