H.R.Y 8025S24V DC Fan 24V 0.25A 80x80x25mm 4000 RPM 2-Pin Connector

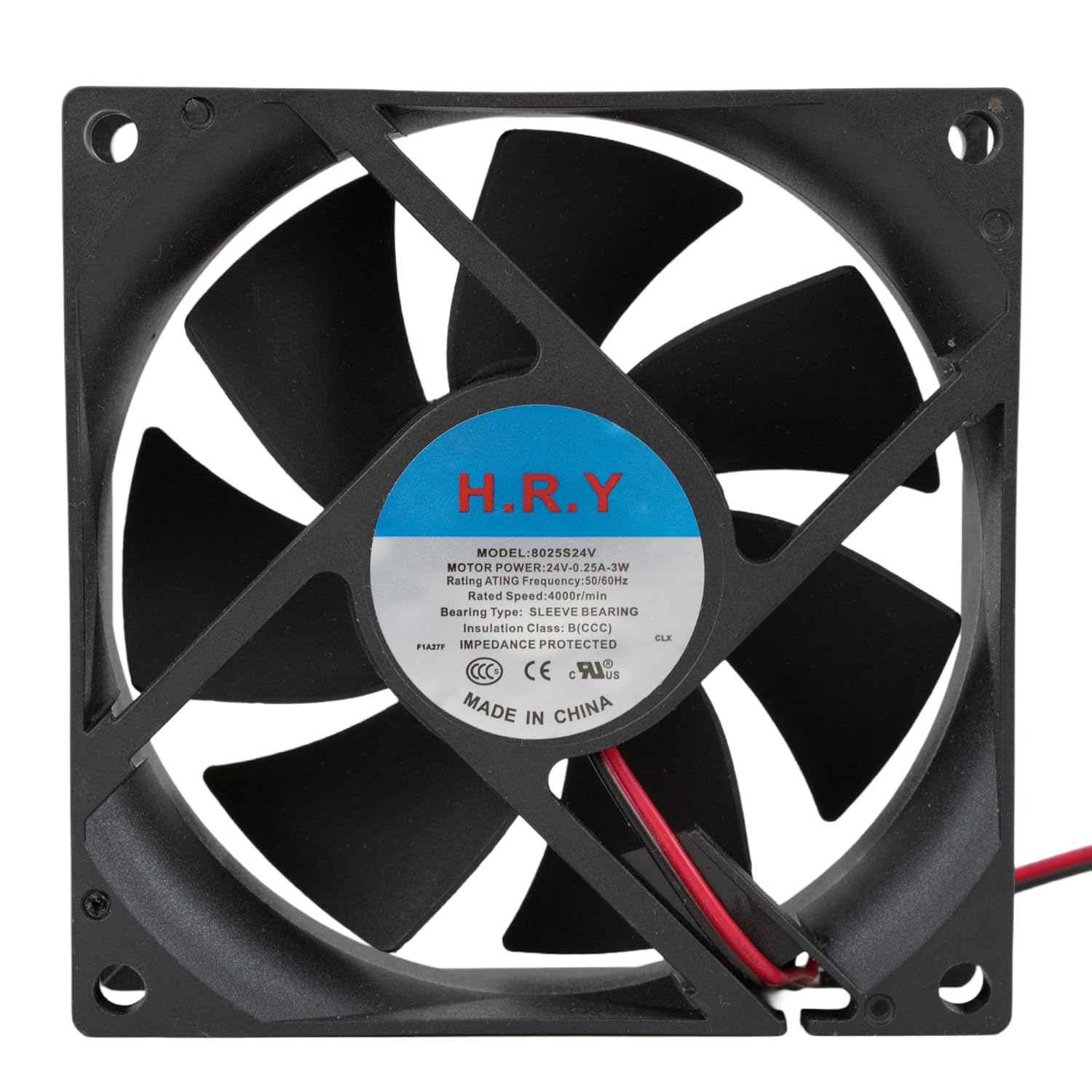

The H.R.Y 8025S24V is a compact 80 x 80 x 25 mm DC axial cooling fan designed for 24V systems. It runs at a rated speed of 4000 r/min with a power rating of 24V – 0.25A – 3W (rated frequency 50/60Hz), delivering efficient airflow for enclosed electronics and equipment cooling.
The fan uses a sleeve bearing motor with Impedance Protected design and Insulation Class B for reliable operation. The standard square frame features four corner mounting holes for easy installation, and molded arrows on the frame indicate airflow/rotation direction. It comes with red (+) and black (–) lead wires terminated in a white 2-pin connector for quick, solder-free connection.
Features
- 24V DC operation – 0.25A, 3W motor power
- High rated speed: 4000 r/min
- Sleeve bearing design

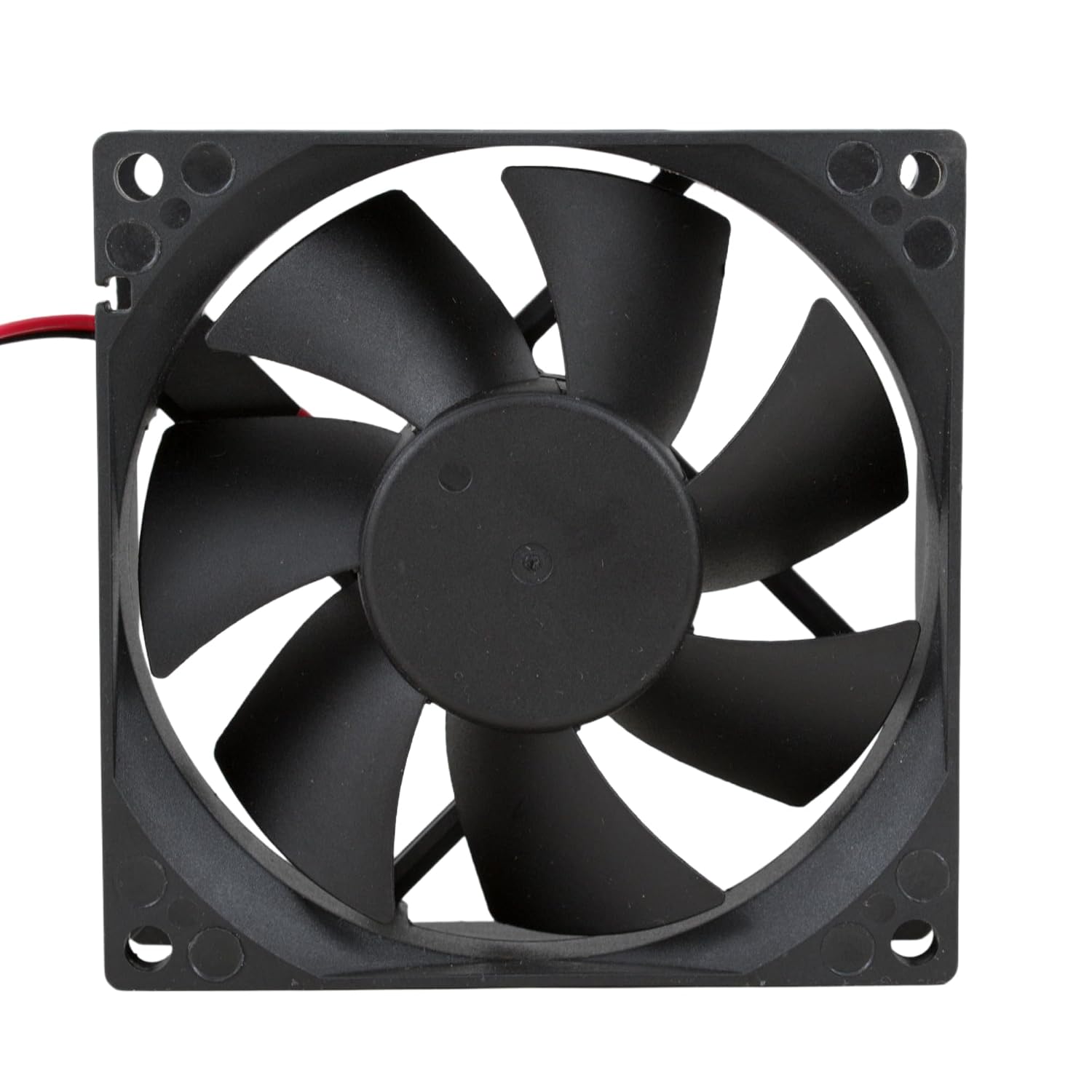

- 7-blade impeller for efficient airflow
- Impedance Protected motor, Insulation Class B (CCC)

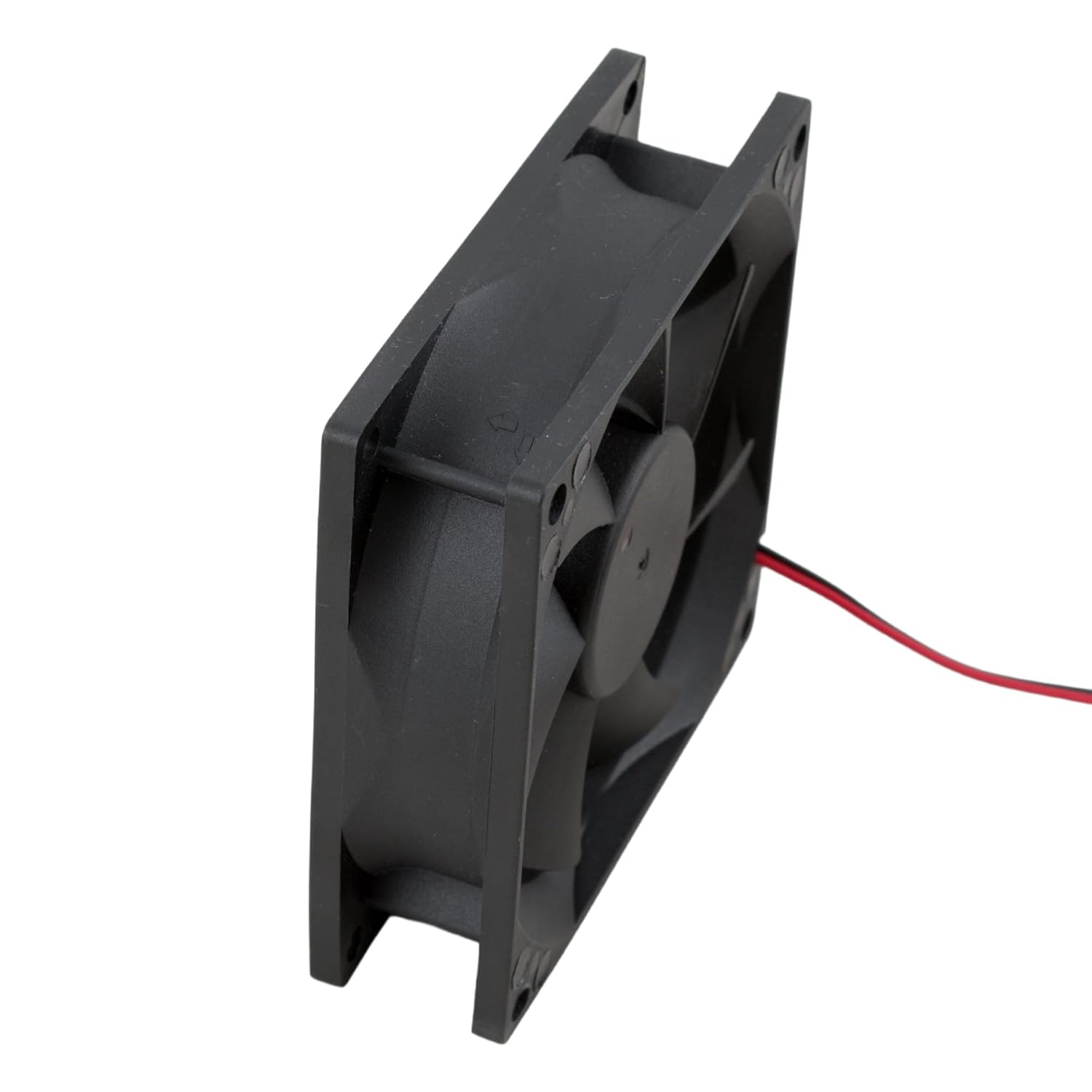

- Standard 80 x 80 x 25 mm frame with 4-corner mounting holes

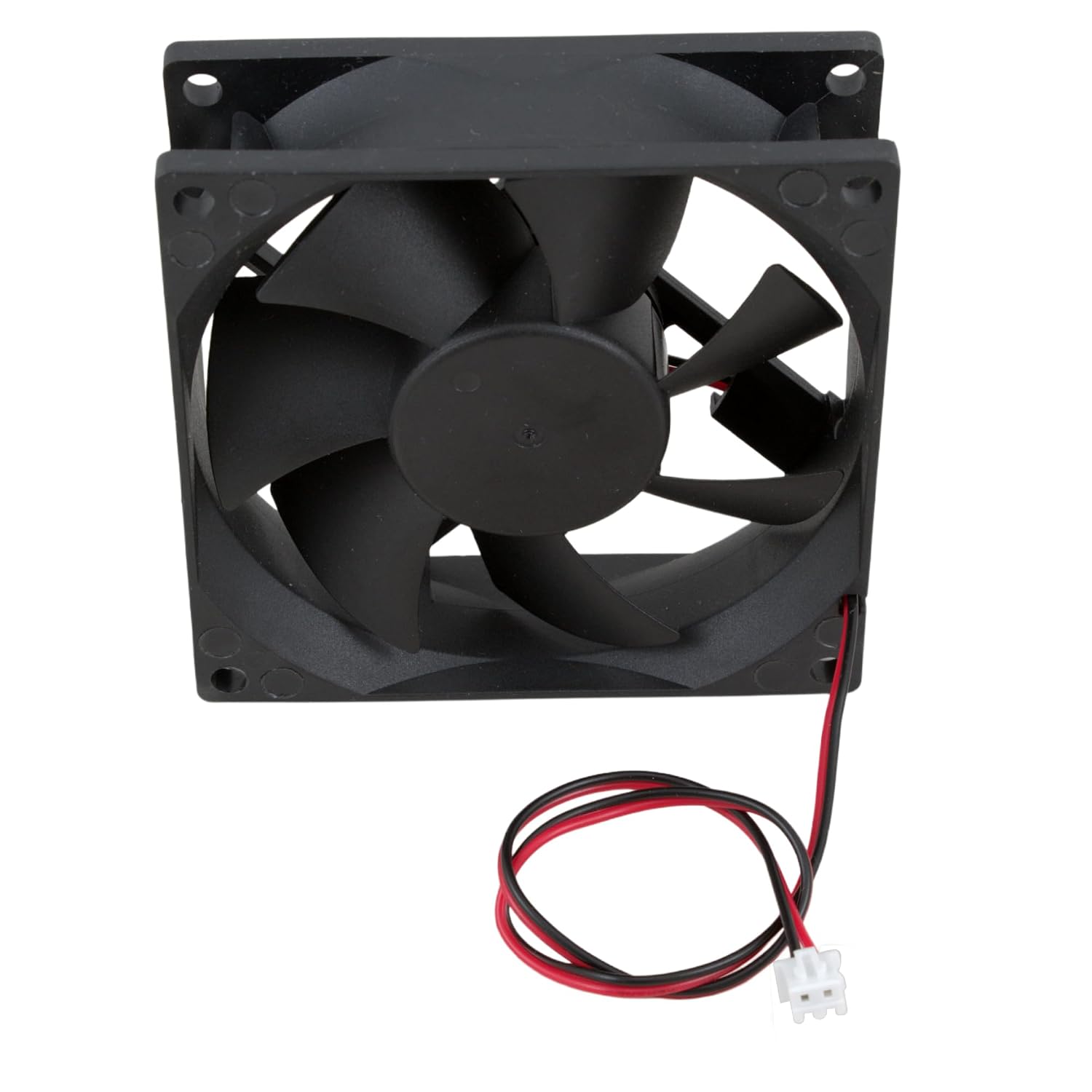

- Red (+) / Black (–) lead wires with white 2-pin connector – no soldering needed
Specifications
| Brand | H.R.Y |
| Model | 8025S24V |
| Type | DC Axial Cooling Fan |
| Dimensions | 80 x 80 x 25 mm |
| Rated Voltage | 24V DC |
| Rated Current | 0.25A |
| Motor Power | 3W |
| Rated Frequency | 50/60Hz |
| Rated Speed | 4000 r/min |
| Bearing Type | Sleeve Bearing |
| Insulation Class | B (CCC) |
| Motor Protection | Impedance Protected |
| Number of Blades | 7 |
| Connection | 2-Pin white connector |
| Lead Wires | Red (+) / Black (–) |
| Mounting | 4 corner holes |
| Certifications | CCC, CE, cULus |
| Country of Origin | Made in China |
Applications
- Industrial control cabinets & electrical enclosures
- UPS systems, inverters & power supplies
- Telecom & networking equipment
- 3D printers, CNC controllers & automation equipment
- Server racks & switching equipment
- Medical, laboratory & measurement instruments
- Audio/visual and broadcast equipment
- General 24V DC electronic cooling
Package Content
- 1 x H.R.Y 8025S24V DC Fan 24V 0.25A 80x80x25mm 4000 RPM 2-Pin Connector
