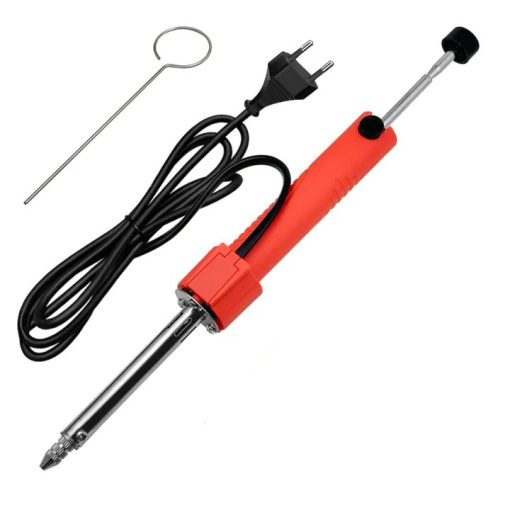

HANDSKIT NO.836 Electric Desoldering Pump 36W
The HANDSKIT NO.836 Electric Desoldering Pump 36W is a practical 2-in-1 desoldering tool designed to simplify electronic repair and maintenance. By integrating a heating element with a built-in vacuum pump, it melts solder and immediately removes it from through-hole solder joints using a single hand-operated tool. This design greatly improves efficiency compared to traditional manual desoldering pumps and is ideal for PCB repair, component replacement, and rework applications.
Features:
- 2-in-1 soldering iron and desoldering-pump.
- 36W ceramic heating element.
- Built-in vacuum suction mechanism.
- One-handed operation.
- Fast heat-up in approximately 3 to 5 minutes.
- Strong suction for efficient solder removal.
- Heat-resistant insulated handle.
Specifications:
| Parameter | Value |
|---|---|
| Brand | HANDSKIT |
| Model | NO.836 |
| Product Type | Electric Desoldering Pump |
| Power | 36W |
| Rated Voltage | 220VAC |
| Rated Frequency | 50Hz |
| Heating Time | 3~5min |
| Function | Solder Melting & Vacuum Suction |
| Maximum Suction | 5cm-Hg |
| Heating Element | Electric Heater |
| Nozzle Material | Metal |
| Body Material | Nylon, Stainless Steel, Copper |
| Handle Type | Heat Resistant |
| Operation | One-Handed |
| Cable Length | 1.1m |
| Plug Type | EU Plug |
Configuration:
Applications:
- PCB repair.
- Electronic component removal.
- Through-hole desoldering.
- IC replacement.
- Capacitor replacement.
- Resistor replacement.
- Connector repair.
- Electronics maintenance.
- DIY electronics projects.
- Educational laboratories.
- Service centers.
- Prototype rework.
Package Include:
- 1x HANDSKIT NO.836 Electric Desoldering-Pump 36W.
- 1x Nozzle Cleaning Needle.
Notes:
- The suction mechanism is manually operated using the spring-loaded plunger; electricity is used for heating only.
- Allow the metal nozzle to heat before attempting to remove solder.
- Do not touch the metal barrel or nozzle during or immediately after use.
- Disconnect the tool from power and allow it to cool completely before cleaning or maintenance.
- Do not use on energized circuits.
- Use in a well-ventilated area and avoid inhaling soldering fumes.
- Clean the nozzle and solder chamber regularly to maintain suction performance.
