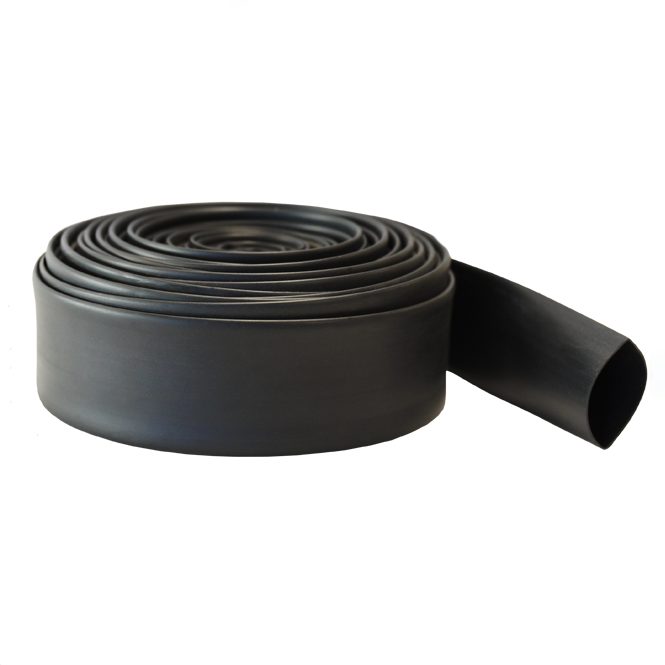

Heat Shrink 40mm Black 1meter

Heat Shrink 40mm Black 1meter

Heat Shrink 40mm Black 1 Meter provides secure insulation for large cables, offering protection against wear, moisture, and chemicals.

80.00 EGP

Buy Now
Availability: In Stock
SKU:4139122331535
Categories:
Tags:,
Heat Shrink 40mm Black 1meter

The Heat Shrink 40mm Black 1 meter tubing is a durable and flexible insulating solution designed for a wide range of electrical and mechanical applications. With a large 40mm diameter, it is ideal for bundling, protecting, and sealing bigger cables, wire harnesses, and connectors. When exposed to heat, the tubing shrinks uniformly to provide a tight, secure fit that offers excellent resistance to abrasion, chemicals, and moisture. Its black color ensures a neat, professional finish suitable for industrial, automotive, and electronic uses. Easy to cut and apply, it delivers reliable insulation and long-lasting protection.

Features:
  • High-Quality Material Made from Flexible Flame Retardant & Cross-Linked Polyolefin.
  • Excellent Shrink Ratio 2:1 (shrinks to half its original diameter when heated).
  • Good Insulation Provides electrical insulation for wires, joints, and terminals.
  • Tight Fit Forms a secure seal when shrunk, protecting against moisture and dust.
  • Chemical and Abrasion Resistant Withstands exposure to solvents, oils, and physical wear.
  • Flexible and Easy to Use Simple application with a heat gun or lighter.
  • RoHS Compliant Safe for use in electronics and environmentally friendly.

Specifications:
  • Diameter (before shrink): 40mm
  • Diameter (after shrink): 20mm
  • Shrink Ratio: 2:1
  • Length: 1meter
  • Material: Flexible Flame Retardant & Cross-Linked Polyolefin
  • Shrink Temperature: Starts at ~70°C, full shrink at ~110°C
  • Radial Shrinkage: 50% Min
  • Longitudinal Shrinkage: 5 % Max
  • Tensile Strength: ≥10.4Mpa
  • Dielectric Strength: ≥15 kV/mm
  • Flammability: VW-1 (Vertical Flame Test Pass)
  • Operating Temperature: -55°C ~ 125°C
  • Color: Black



How To Use:

Applications:
  • Wire Insulation Ideal for insulating fine wires in electronics and electrical circuits.
  • Solder Joint Protection Covers and protects delicate soldered connections from short circuits and corrosion.
  • Cable Strain Relief Provides support and strain relief at cable terminations or connectors.
  • Color Coding Helps in identifying and organizing wires through color-coded tubing.
  • Component Encapsulation Used to insulate and shield small electronic components and sensor leads.
  • Repair Work Perfect for fixing frayed wire insulation and minor cable damage.
  • RC Models and Hobby Projects Common in drone, RC car, and DIY electronics builds for clean, protected wiring.
  • Battery Packs Secures and insulates battery leads and terminal points.

Package Contents:
  • 1meterX  Heat Shrink 40mm Black
