HM6264ALP-10 8K X 8 64k STANDARD SRAM 100ns IC DIP-28
The HM6264ALP-10 is a high-performance, low-power 8K x 8-bit CMOS Static RAM (SRAM) designed for applications requiring fast and reliable memory access. With a rapid access time of 100ns and a 28-pin Dual In-line Package (DIP), this IC is ideal for through-hole PCB designs. Operating on a single 5V power supply, it offers TTL compatibility and low standby power consumption, making it suitable for battery-backed systems where data retention during power loss is essential.
Features
- Memory Capacity: 8K x 8-bit organization (64K bits total)
- Fast Access Time: 100ns for quick data retrieval
- Low Power Consumption:
- Standby: 100μA max
- Operating: 60mA max
- Single 5V Power Supply: Operates within 5V ±10%
- Completely Static Operation: No clock or timing strobe required
- Equal Access and Cycle Times: Simplifies timing design
- Three-State Output: Common data input and output with tristate capability
- TTL Compatible: Direct compatibility with TTL logic levels
- Battery Backup Capability: Supports data retention in low-power mode

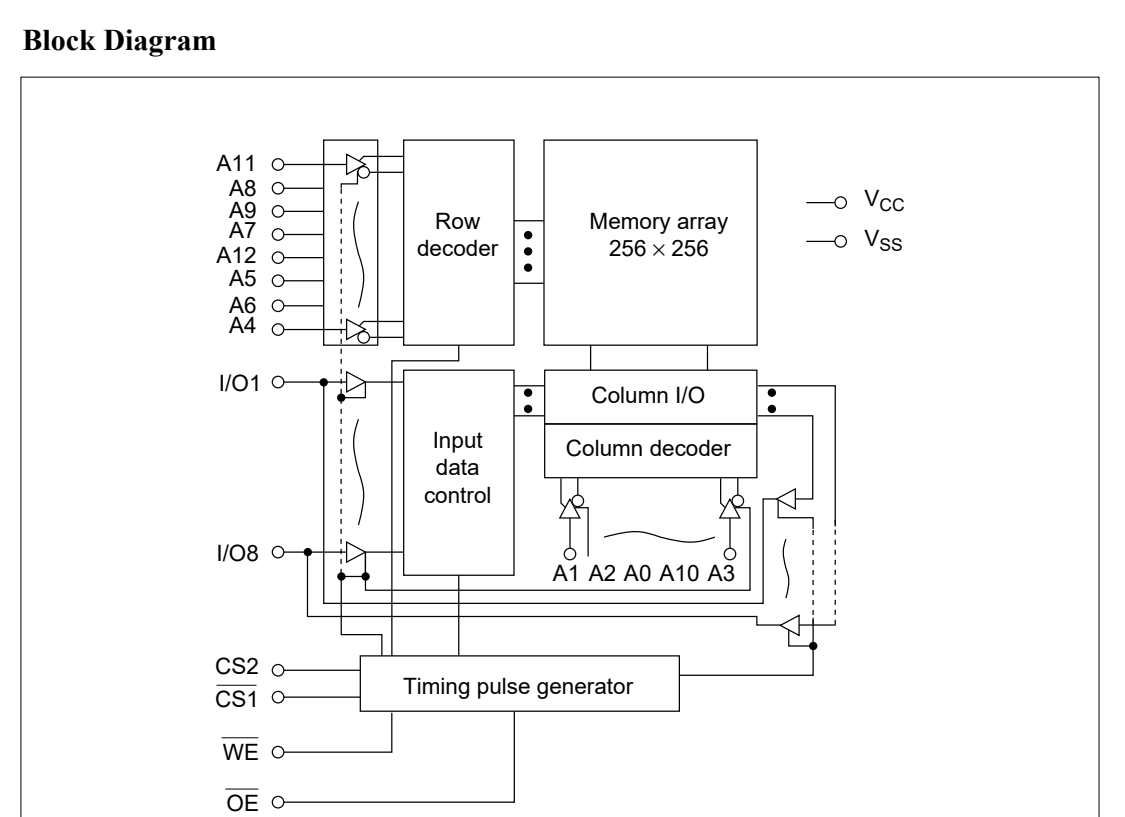

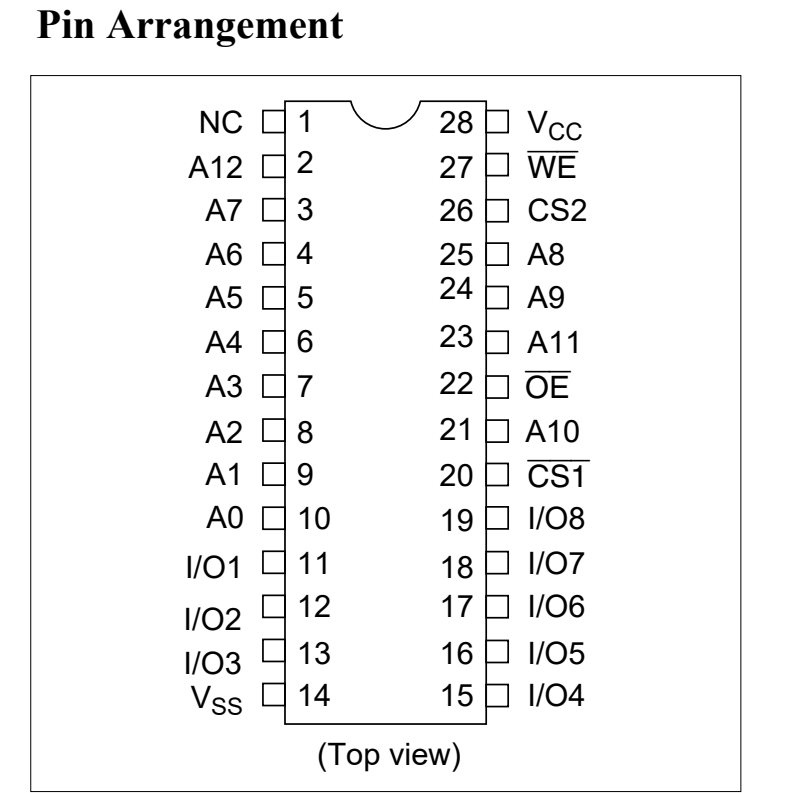

- 28-pin DIP Package: Easy integration into through-hole designs
Specifications
| Parameter | Value |
|---|---|
| Memory Type | CMOS SRAM |
| Organization | 8K x 8 bits (64K bits) |
| Access Time | 100ns |
| Supply Voltage | 5V ±10% |
| Operating Current | 60mA max |
| Standby Current | 100μA max |
| Input High Voltage | 2.2V min |
| Input Low Voltage | 0.8V max |
| Output High Voltage | 2.4V min (IOH = -1mA) |
| Output Low Voltage | 0.4V max (IOL = 2.1mA) |
| Package Type | 28-pin DIP |
| Operating Temperature | 0°C to 70°C |
Applications
- Microprocessor-Based Systems: Provides fast memory for CPUs
- Embedded Control Systems: Reliable storage for firmware and data
- Data Acquisition and Logging: Quick access for real-time data processing
- Industrial Automation: Durable memory for control units
- Communication Devices: Temporary storage in networking equipment
- Battery-Backed Memory: Retains configuration data during power outages
- Prototyping and Development: Ideal for breadboarding and legacy system repairs
Package Content
- 1 x HM6264ALP-10 SRAM IC
