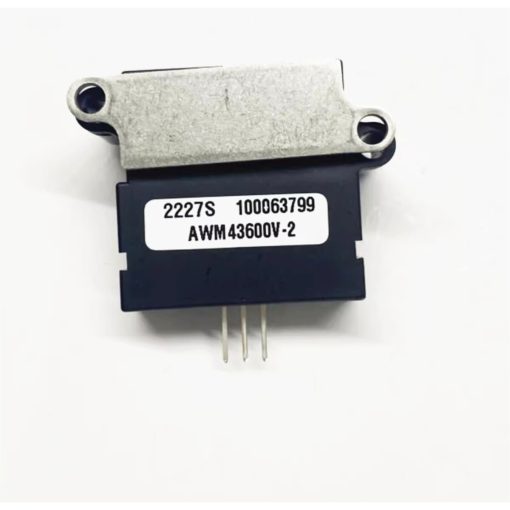

Honeywell AWM43600V-2 Air Flow Sensor 6 SLPM Female, 0.19″ (4.826mm) Plastic
Honeywell AWM43600V-2 is a High-accuracy airflow sensor commonly used to measure and control gas flow in medical and industrial systems.
8,800.00 EGP
Buy NowHoneywell AWM43600V-2 Air Flow Sensor 6 SLPM Female, 0.19″ (4.826mm) Plastic
The Honeywell AWM43600V-2 Air Flow Sensor belongs to the AWM40000 series and is designed for precise measurement of airflow up to 6 SLPM. It utilizes advanced microbridge thermal technology, where a heated sensing element detects airflow by measuring heat transfer variations caused by moving gas. This method allows the sensor to deliver highly accurate, fast, and repeatable measurements, making it ideal for applications requiring reliable flow monitoring.
This sensor features an integrated amplified output, providing a calibrated analog voltage signal proportional to the airflow rate. Its compact plastic housing with female ports ensures easy installation into tubing systems. The device maintains stable performance across a wide temperature range and includes built-in compensation for ambient temperature changes, making it suitable for demanding environments such as medical devices, HVAC systems, and industrial process control.
Features:
- Precision silicon micromachining.
- High sensitivity to low flows (0.1 SCCM to 6 SLPM).
- Adaptable for higher flows.
- Low power consumption (supports portable/battery devices).
- Analog ratiometric voltage output.
- Standard 2.54 mm [0.10 in] mounting centers.
- Laser‑trimmed interchangeability.
- Accurate sensing of low pressure.
- Fast response time (1 ms).
- Onboard signal conditioning (amplified version).
- Thermophoretic dust repulsion.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | Honeywell AWM43600V-2 |
| Flow range (full scale) | 0 SLPM to 6 SLPM (standard liters per minute) |
| Calibration gas | Nitrogen |
| Recommended excitation voltage | 10.000 ± 0.010 Vdc |
| Supply voltage (min/max) | 10.000 Vdc / 15.000 Vdc |
| Power consumption | 75 mW max |
| Output at full scale (6 SLPM) | 5 Vdc ±0.15 Vdc |
| Null output (zero flow) | 1.000 Vdc ±0.050 Vdc |
| Null output shift (-25°C to 85°C) | ±50 mVDc max |
| Repeatability & hysteresis | ±1.00 % reading max |
| Pressure drop at full scale | 8 inH₂O |
| Response time | 1.0 ms nominal, 3.0 ms max |
| Overpressure | 1.7 bar [25 psi] max |
| Max flow pulse (to prevent damage) | 5 SLPM/s |
| Output load (NPN sinking) | 10 mA |
| Operating temperature | -25°C to 85°C [-13°F to 185°F] |
| Storage temperature | -40°C to 125°C [-40°F to 251°F] |
| Ratiometricity error | ±0.8 % reading max |
| Shock (5 drops, 6 axes) | 100 g peak |
| Weight | 11 g [0.39 oz] |

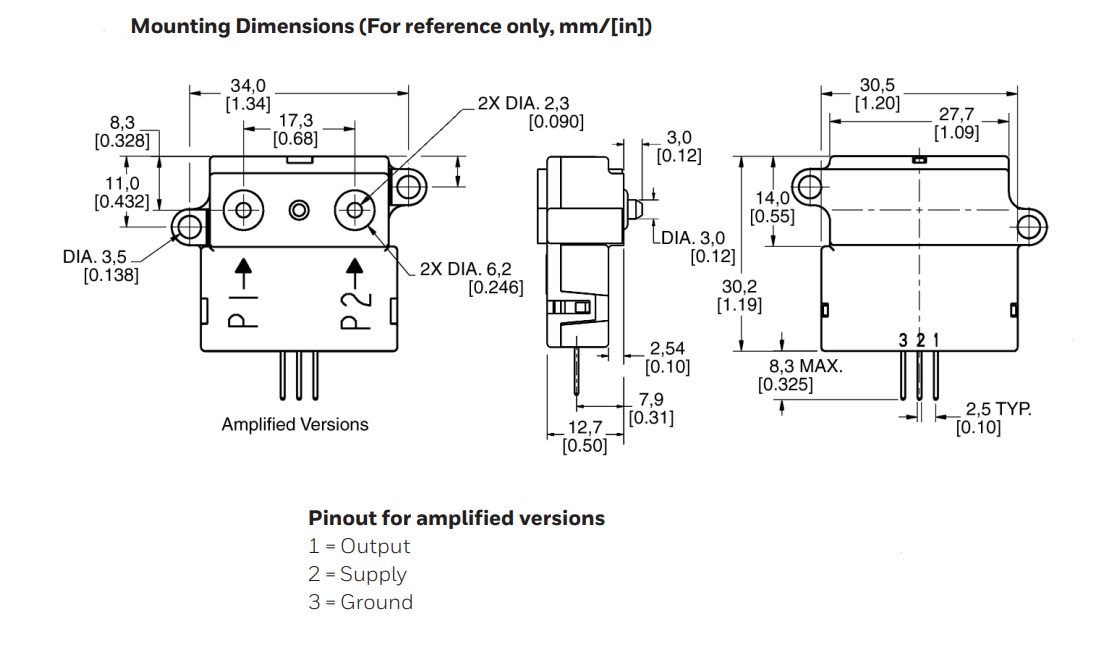

Pinout:
| Pin | Signal | Description |
|---|---|---|
| 1 | Output | Analog voltage output (1–5 V) |
| 2 | Supply | Supply voltage (10 Vdc nominal, 10–15 Vdc) |
| 3 | Ground | Power and signal ground |
Applications:
Medical
- Respirators and ventilators.
- Oxygen concentrators and conservers.
- Anesthesia machines.
Industrial
- HVAC damper control.
- Gas analyzers.
- Low vacuum control.
- Process control.
- Leak detection equipment.
- Vent hoods.
- Gas metering.
- Chromatography.
