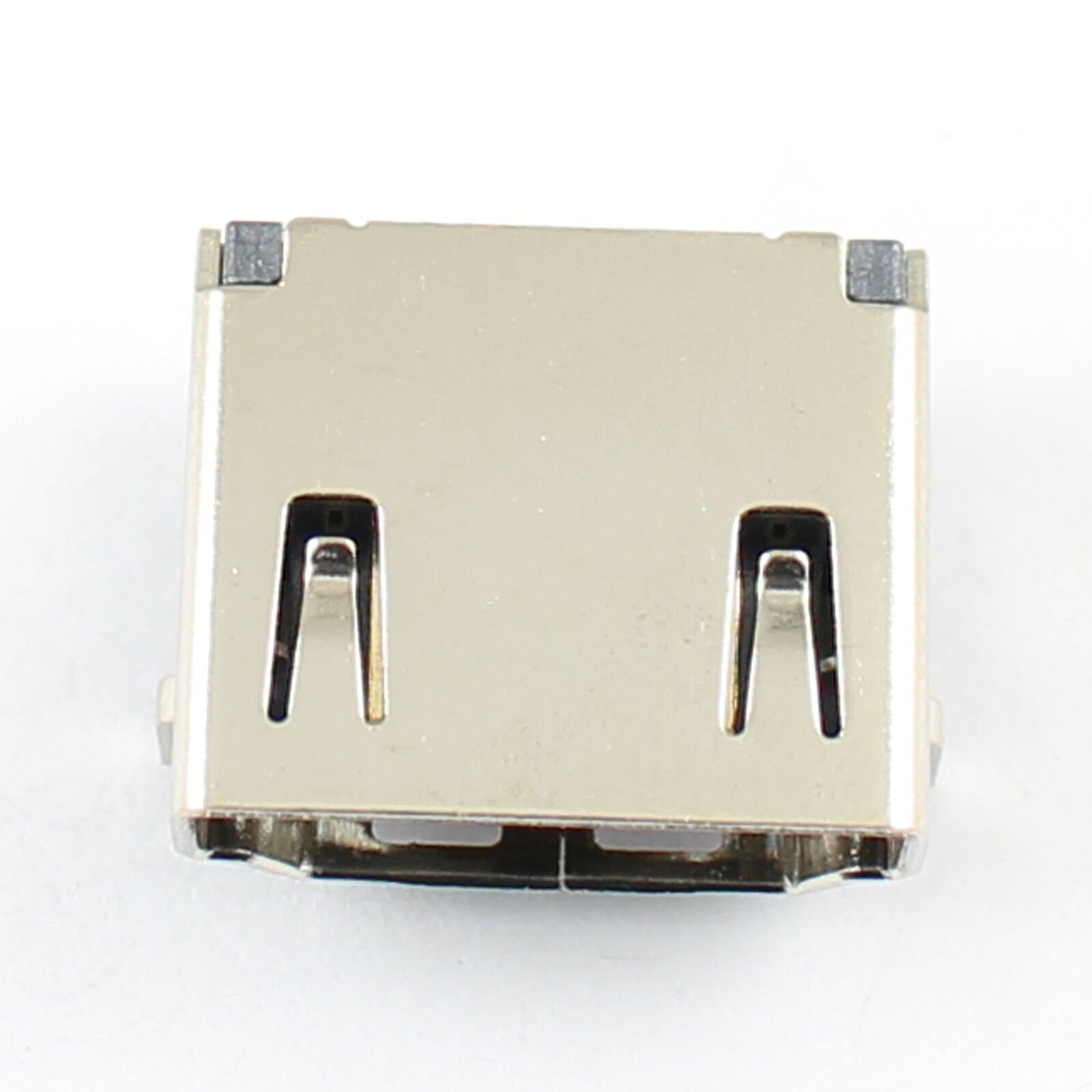

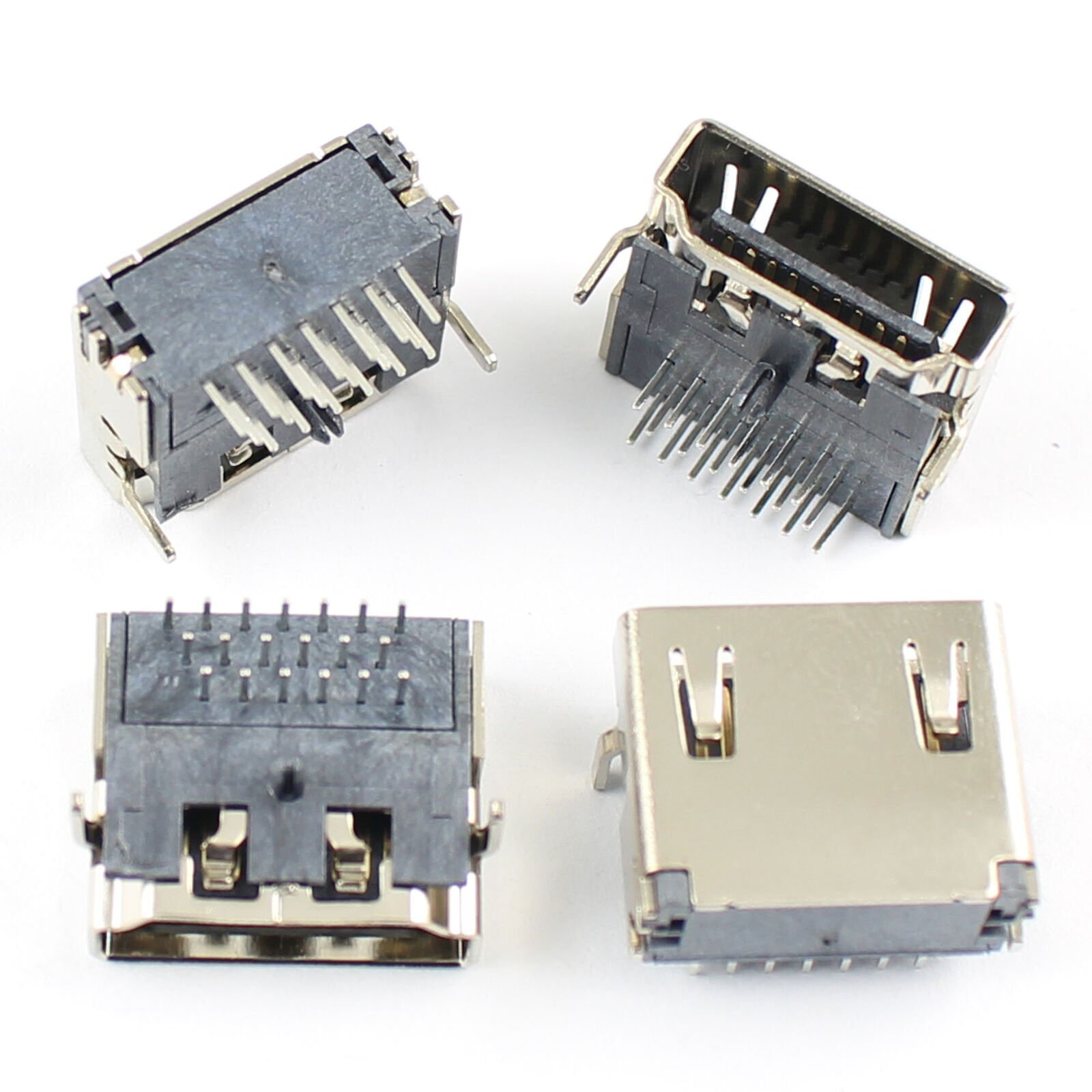

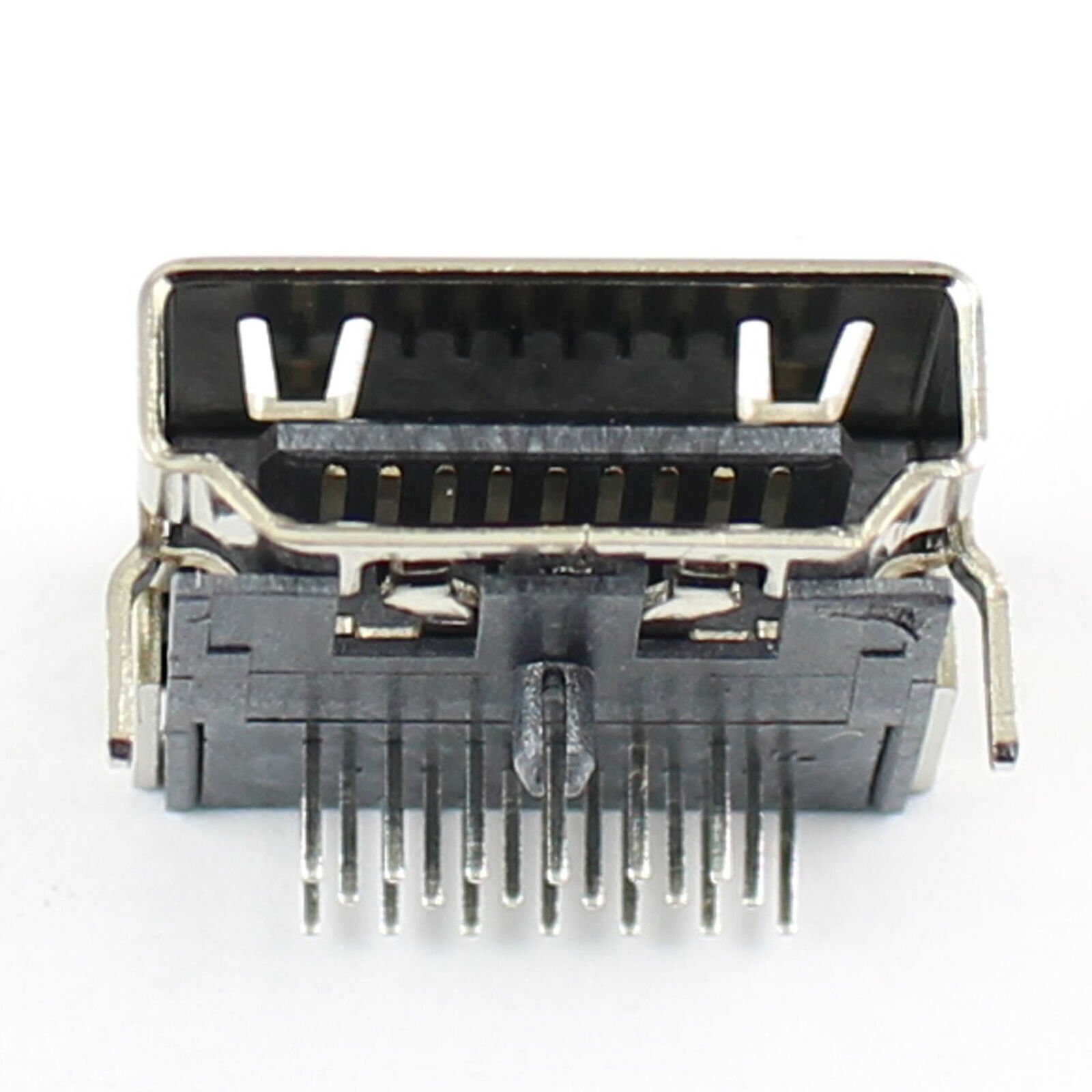

HYC12-HDMIA19-610B Audio & Video HDMI Female Connector 19Pin
The HYC12-HDMIA19-610B is a high-quality, right-angle female HDMI receptacle designed for reliable audio and video data transmission. Featuring a robust 19-pin configuration and integrated mechanical shielding tabs, this connector ensures excellent signal integrity and structural stability when mounted to a PCB. It is an ideal replacement part or component for consumer electronics manufacturing, repair, and custom hardware development.
Features:
- Standard 19-Pin Interface.
- Right-Angle Through-Hole Design.
- Robust Mechanical Anchoring.
Specifications:
| Specification | Details |
|---|---|
| Product Type: | HDMI Female Connector |
| Model: | HYC12-HDMIA19-610B |
| Manufacturer: | HOAUC |
| Connector Type: | HDMI Type-A |
| Gender: | Female |
| Number of Pins: | 19 Pins |
| Mounting Type: | Through-Hole |
| Connector Orientation: | Right-Angle |
| Rated Voltage: | 40V |
| Rated Current: | 500mA |
| Operating Temperature: | −20°C to +85°C |
| PCB Installation: | Right-Angle PCB Mount |
| Compliance: | RoHS Compliant |

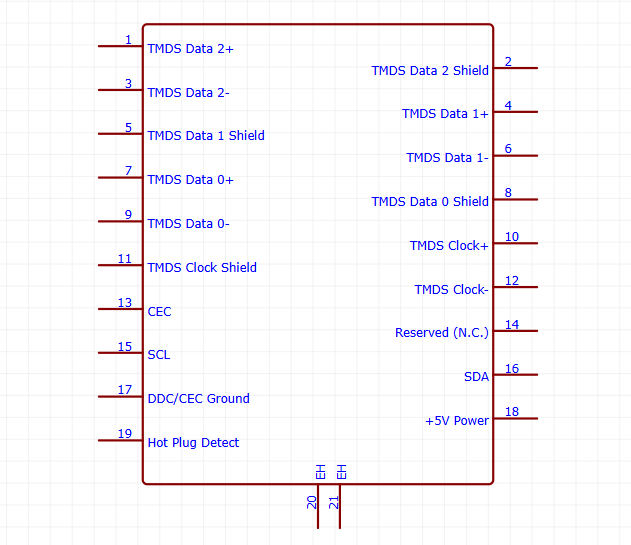

Pinout Diagram:

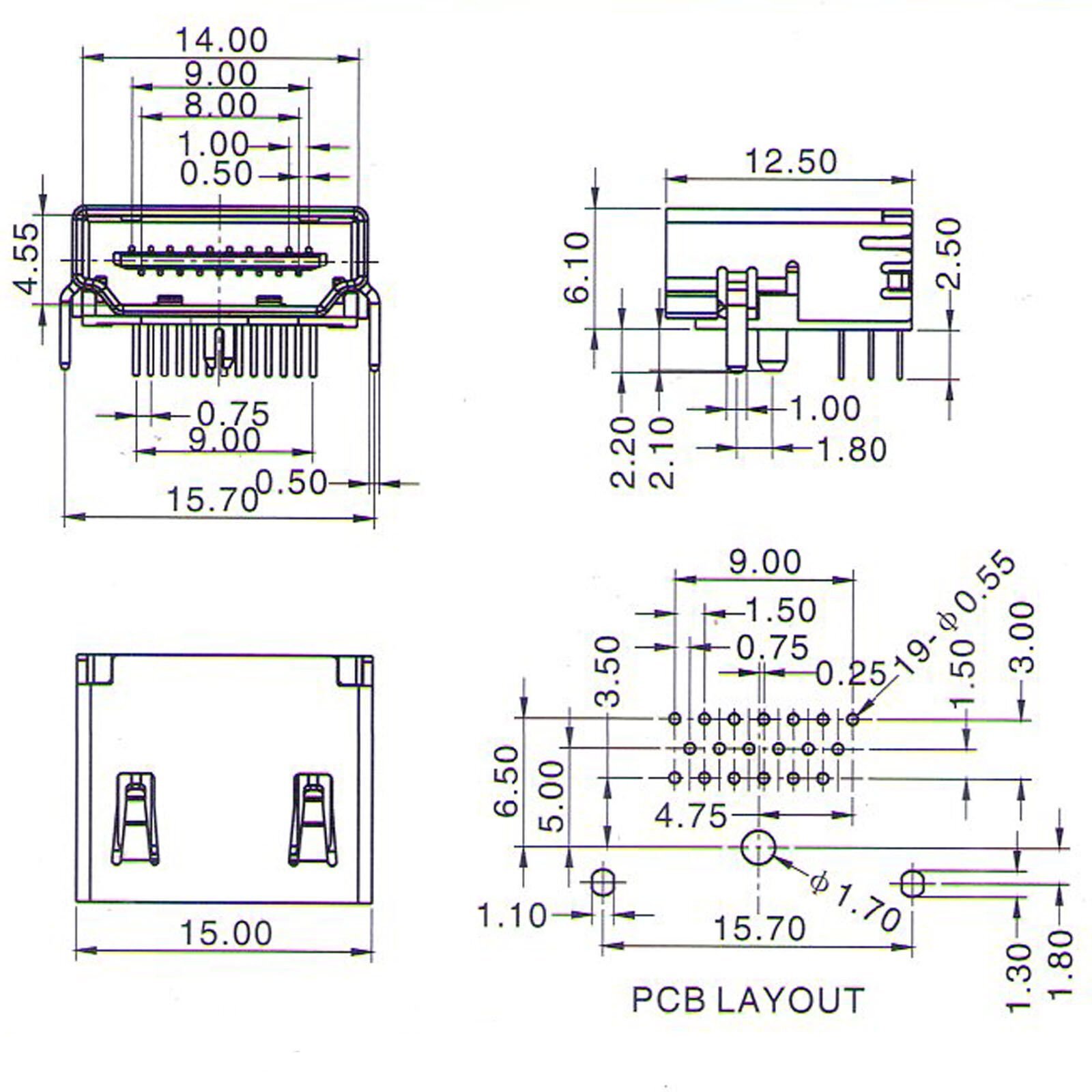

Footprint Diagram:
Applications:
- Consumer Electronics.
- Audio/Video Equipment.
- Computing Devices.
- Repair & DIY.
Package Content:
- 1x HYC12-HDMIA19-610B Audio & Video HDMI Female Connector 19Pin
