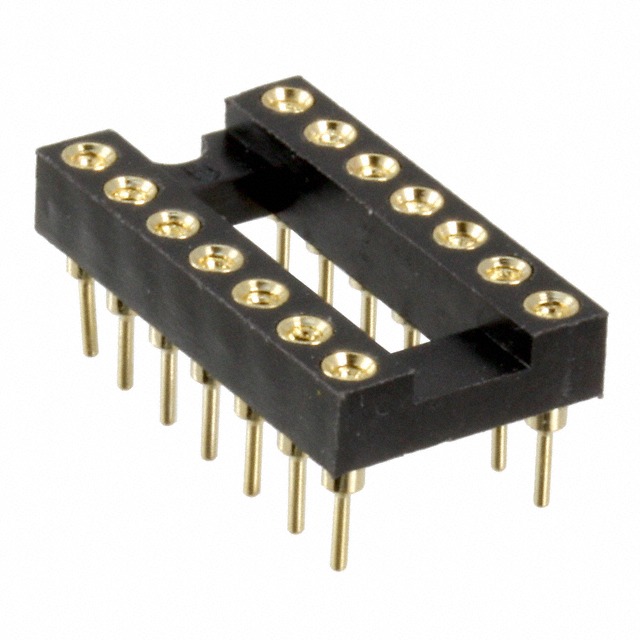

IC Socket (7+7) – Machine Tooled Base 14 Pin
The IC Socket 14 Pin 2×7 Machine Tooled Base Through Hole is a precision socket designed for mounting and replacing 14-pin dual in-line package integrated circuits without directly soldering the IC to the PCB. It provides 14 individual contacts arranged in two rows of seven, matching the standard 14-pin DIP configuration with a 2.54mm contact pitch.
Features:
- 14-pin DIP IC socket.
- 2×7 contact arrangement.
- Machine-tooled contact construction.
- 2.54mm contact pitch.
- 7.62mm row spacing.
- Gold-plated mating contacts.
Specifications:
| Parameter | Value |
|---|---|
| Socket Type | DIP, 0.3in (7.62mm) Row Spacing |
| Number of Positions | 14 (2×7) |
| Pitch | 2.54mm |
| Row Spacing | 7.62mm |
| Mounting Type | Through-Hole |
| Termination | Solder |
| Construction | Open Frame |
| Mating Contact Material | Beryllium Copper |
| Mating Contact Finish | Gold |
| Mating Contact Finish Thickness | Flash |
| Post Contact Material | Brass |
| Post Contact Finish | Gold |
| Post Contact Finish Thickness | 2.03µm (80µin) |
| Housing Material | Thermoplastic Polyester, Glass Filled |
| Flammability Rating | UL94 V-0 |
| Current Rating | 3A |
| Contact Resistance | 4mΩ |
| Operating Temperature | -40°C to +105°C |
Applications:
- 14-pin DIP integrated circuit mounting.
- Logic IC mounting.
- Timer IC mounting.
- Operational amplifier IC mounting.
- Microcontroller development.
- Programmable IC development.
- Prototype and development boards.
- IC testing and evaluation.
- Electronic equipment repair.
- PCB designs requiring replaceable DIP ICs.
- Educational electronics projects.
- Electronic circuit prototyping.
Package Include:
1x IC Socket (7+7) – Machine Tooled Base 14 Pin.
