IDC Connector Ribbon Cable Transition 2.54mm

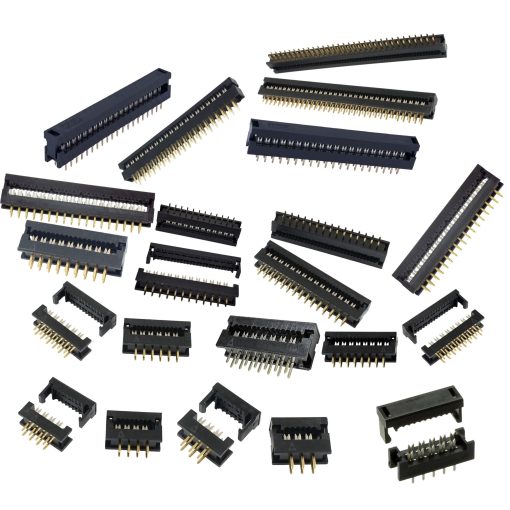

The IDC Connector Ribbon Cable Transition 2.54mm is a versatile dual-row connector designed for efficient and reliable termination of flat ribbon cables. This product series includes multiple pin configurations ranging from 6 pins up to 64 pins, allowing engineers to select the appropriate model based on system requirements.
Features:
- Available in multiple pin configurations from 6 to 64 pins.
- Standard 2.54mm pitch for wide compatibility.
- Supports 1.27mm flat ribbon cable termination.
- IDC technology for solderless, reliable connections.
Specifications:
| Parameter | Value |
|---|---|
| Connector Type | IDC Ribbon Cable Transition |
| Pitch | 2.54mm |
| Cable Pitch | 1.27mm |
| Row Configuration | Dual Row |
| Mounting Type | Cable Mount (IDC) |
| Contact Type | Insulation Displacement |
| Housing Material | Thermoplastic |
| Width | 5.8mm |
| Height | 9.5mm |
| Pin Range | 6–64 Pins |

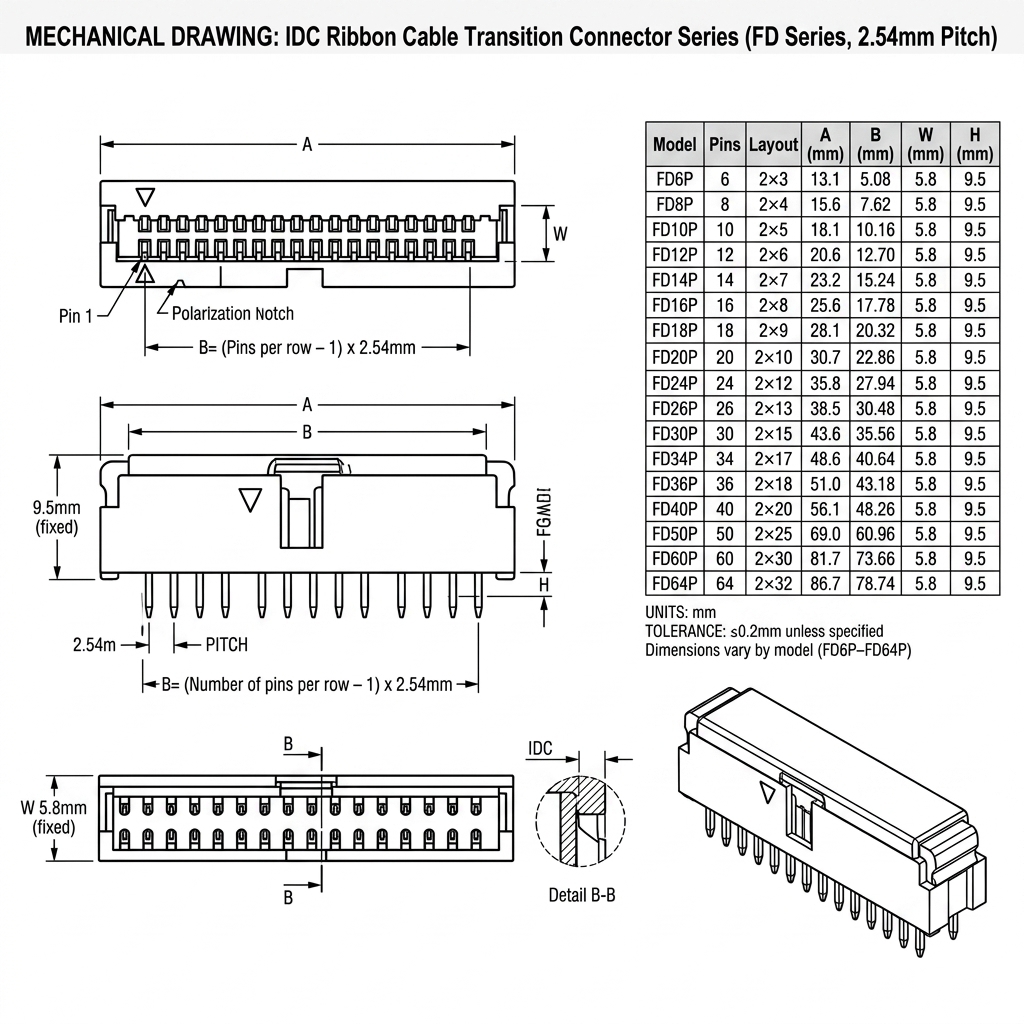

Dimensions per Model:
| Model | Total Pins | Row Layout | Body Length (L) | Width (W) | Height (H) |
|---|---|---|---|---|---|
| FD6P | 6 | 2×3 | 13.1mm | 5.8mm | 9.5mm |
| FD8P | 8 | 2×4 | 15.6 mm | 5.8mm | 9.5mm |
| FD10P | 10 | 2×5 | 18.1 mm | 5.8 mm | 9.5 mm |
| FD12P | 12 | 2×6 | 20.6 mm | 5.8 mm | 9.5 mm |
| FD14P | 14 | 2×7 | 23.2 mm | 5.8 mm | 9.5mm |
| FD16P | 16 | 2×8 | 25.6 mm | 5.8 mm | 9.5 mm |
| FD18P | 18 | 2×9 | 28.1 mm | 5.8mm | 9.5mm |
| FD20P | 20 | 2×10 | 30.7 mm | 5.8 mm | 9.5 mm |
| FD24P | 24 | 2×12 | 35.8 mm | 5.8 mm | 9.5 mm |
| FD26P | 26 | 2×13 | 38.5mm | 5.8 mm | 9.5 mm |
| FD30P | 30 | 2×15 | 43.6mm | 5.8 mm | 9.5 mm |
| FD34P | 34 | 2×17 | 48.6mm | 5.8mm | 9.5 mm |
| FD36P | 36 | 2×18 | 51 mm | 5.8 mm | 9.5 mm |
| FD40P | 40 | 2×20 | 56.1 mm | 5.8 mm | 9.5 mm |
| FD50P | 50 | 2×25 | 69 mm | 5.8 mm | 9.5 mm |
| FD60P | 60 | 2×30 | 81.7 mm | 5.8 mm | 9.5 mm |
| FD64P | 64 | 2×32 | 86.7 mm | 5.8 mm | 9.5 mm |
Applications:
- Ribbon cable terminations.
- PCB-to-cable interconnections.
- AVR ISP and programming interfaces.
- Embedded systems and microcontroller projects.
- Industrial control wiring.
- Data signal routing in electronic devices.
Package Include:
1x IDC Connector Ribbon Cable Transition 2.54mm (Selected Model).
