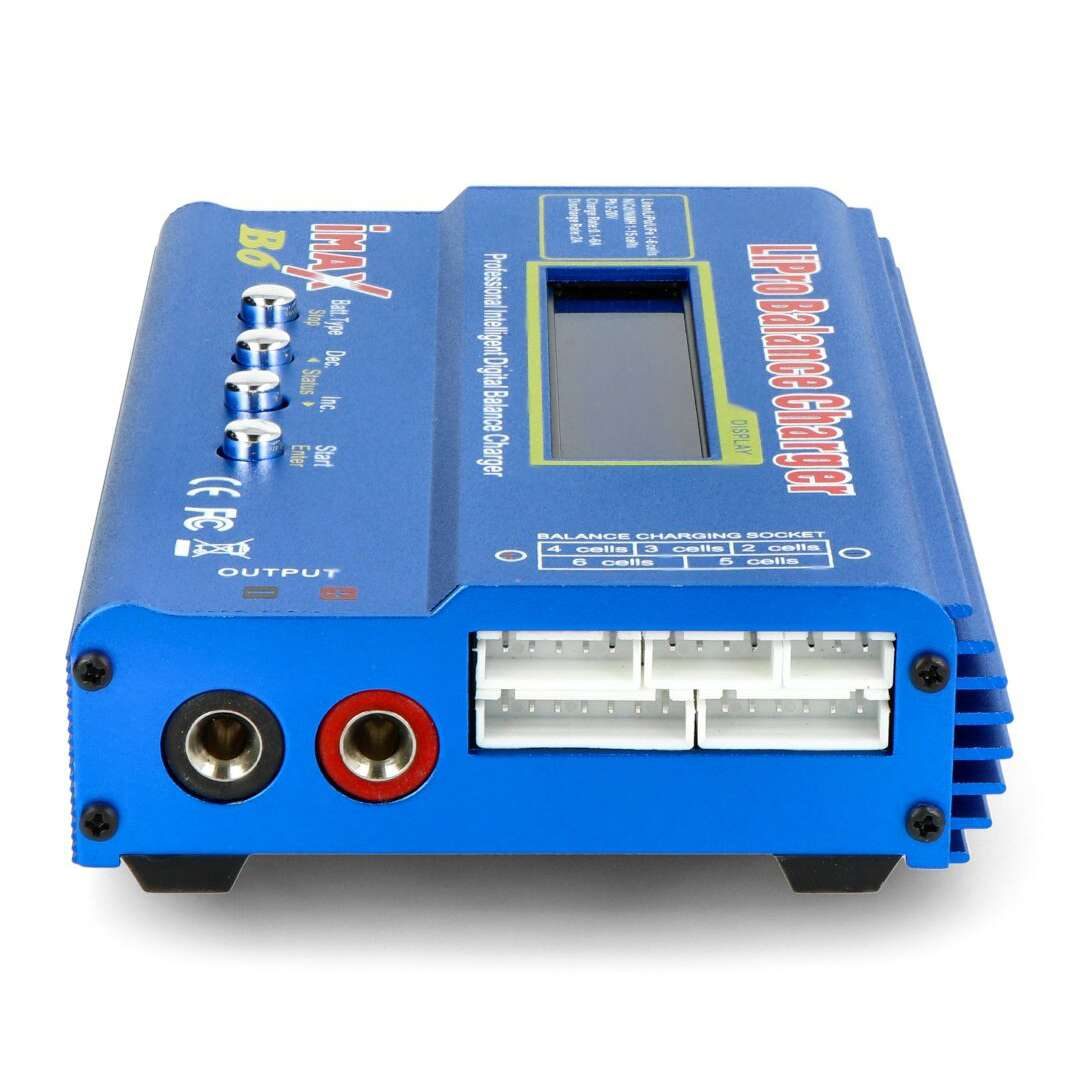

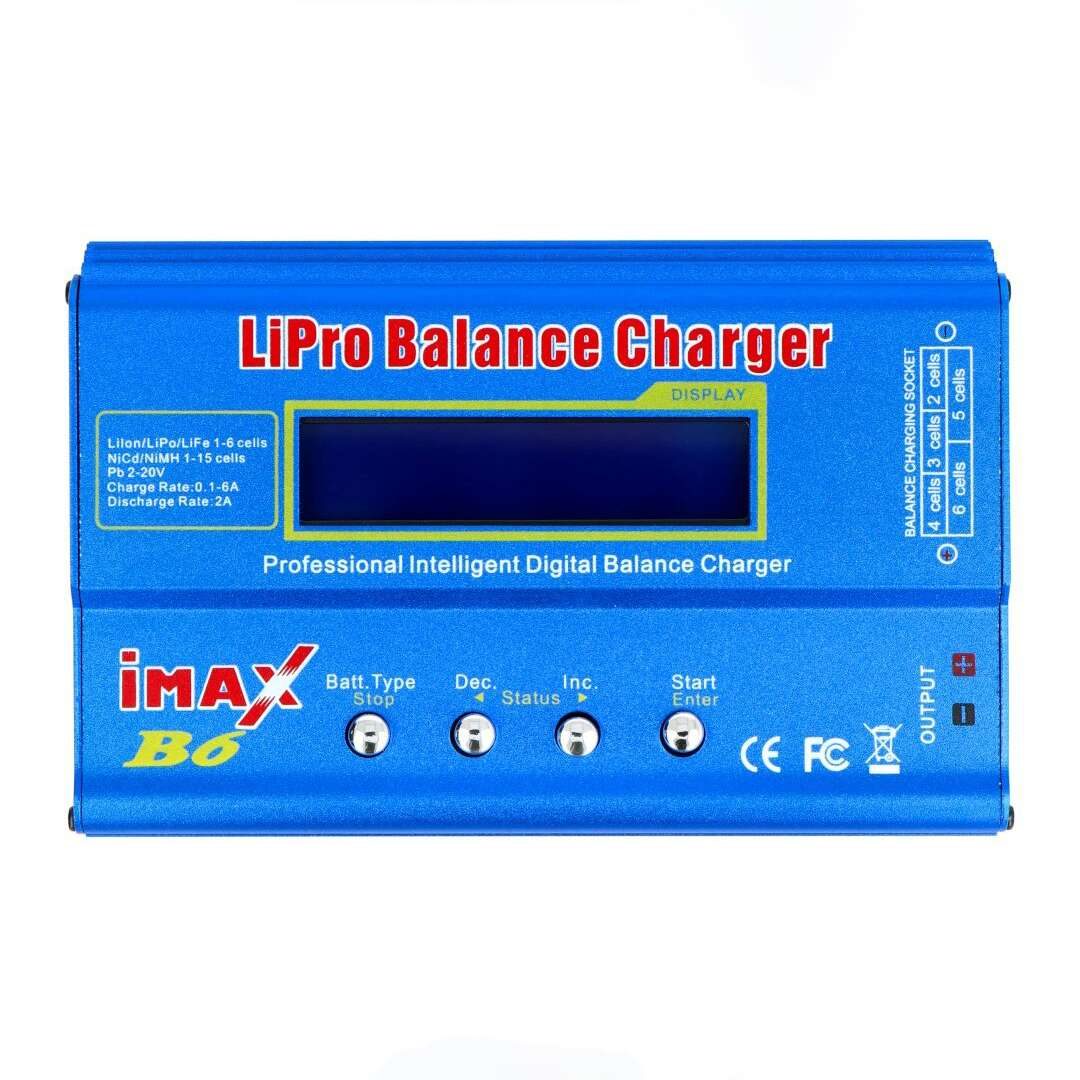

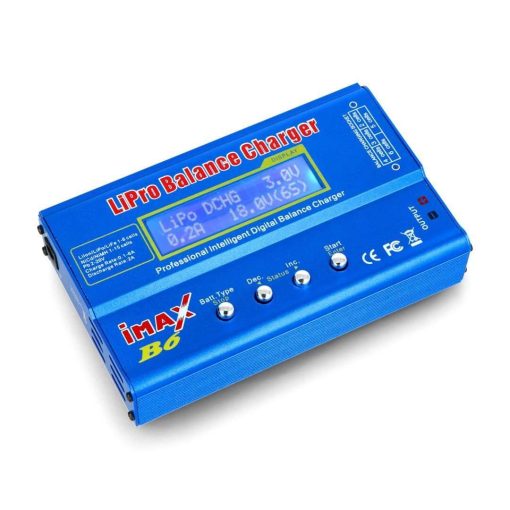

IMAX B6 Digital Balance Battery Charger 80W
IMAX B6 Digital Balance Battery Charger 80W is a compact and intelligent multi-chemistry battery charger designed for charging, balancing, discharging, and maintaining rechargeable batteries with precision. It supports Li-ion, LiPo, LiFe, NiCd, NiMH, and Lead Acid (Pb) batteries, making it ideal for RC hobbyists, drone enthusiasts, robotics, and electronics projects. Featuring an easy-to-read LCD display, microprocessor-controlled charging, balance charging for lithium batteries, adjustable charging parameters, and multiple safety protections, the IMAX B6 ensures reliable battery performance, extended battery life, and safe operation for a wide range of applications.
Features
- Supports Li-ion, LiPo, LiFe, NiCd, NiMH, and Pb batteries.
- Delivers up to80W maximum charging power.
- Intelligent microprocessor-controlled charging system.
- Integrated balance charging for Lithium battery packs.
- LCD screen displays charging status and battery information.
- Adjustable charge and discharge current settings.
- Supports charging, balancing, discharging, and storage modes.
- High-precision balancing improves battery lifespan.
- Built-in safety features protect batteries during charging.
- Compact aluminum enclosure provides efficient heat dissipation.
- Easy-to-use button interface for quick configuration.
- Suitable for hobby, educational, and professional applications.
specification
| Parameter | Details |
| Product Type | Digital Balance Battery Charger |
| Model | IMAX B6 |
| Operating Voltage | 11VDC-18VDC |
| Charging Power | 80W Max |
| Discharge Power | 10W Max |
| Charge Current | 0.1A-6.0A |
| Discharge Current | 0.1A-2.0A |
| Supported Battery Types | Li-ion / LiPo / LiFe / NiCd / NiMH / Lead Acid (Pb) |
| Li-ion/LiPo/LiFe Support | 1-6 Cells |
| NiCd/NiMH Support | 1-15 Cells |
| Lead Acid (Pb/Gel) Support | 2V-20V |
| Balance Charging | 2S-6S Balance Port |
| Programming Buttons | 4 Push Buttons |
| Display | LCD Screen |
| Power Input Connector | DC Jack (5.5 x 2.5mm) |
| Charging Output Connector | Red and Black Female Banana Socket
Male JST-XH 3-Pin Socket Male JST-XH 4-Pin Socket Male JST-XH 5-Pin Socket Male JST-XH 6-Pin Socket Male JST-XH 7-Pin Socket |
| Temperature Sensor Port | Yes |
| Balance Current | 300mA/Cell |
| Balance Accuracy | ±10mV |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Dimensions(L x W x H) | 135mm x 86mm x 33mm |
| IMAX B6 Unit Weight | 225g |
Applications
- Charging RC car batteries.
- Charging drone batteries.
- Charging RC airplane batteries.
- Charging RC helicopter batteries.
- Charging RC boat batteries.
- Balancing Lithium battery packs.
- Robotics battery charging.
- DIY electronics projects.
- Portable battery maintenance.
- Battery capacity testing.
- Educational laboratory experiments.
- Rechargeable battery servicing.
Package Contents
- 1 x IMAX B6 Digital Balance Battery Charger 80W Unit
- 1 x DEANS Male DC Power Jack (5.5×2.5mm) to Red and Black Crocodile Adapter
- 1 x DEANS Male T-Plug to Male Red and Black banana Plug Adapter
- 1 x DEANS Female T-Plug to Male 3.5mm TS (Tip- Sleeve) Plug Adapter
- 1 x DEANS Female T-Plug to Red and Black Crocodile Adapter
- 1 x DEANS Female T-Plug to Male JST-XH 2-Pin (Black Housing) Adapter
- 1 x DEANS Female T-Plug to Male JST-XH 2-Pin (Red Housing) Adapter
- 1 x User Manual.
Note
- The set does not include the AC adapter, it must be purchased separately.
