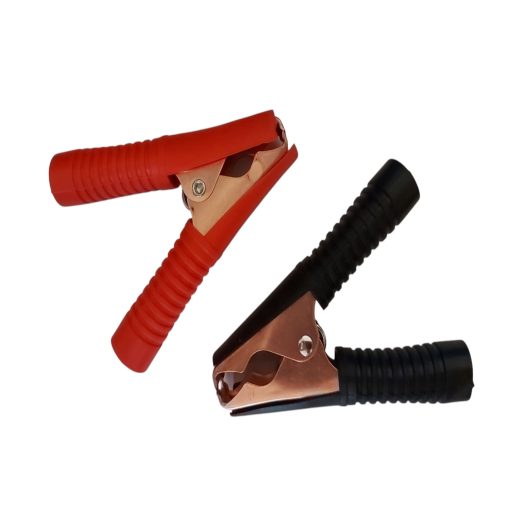

Heavy-Duty Insulated Battery Alligator Clamp 100A 2pcs
he Heavy-Duty Insulated Battery Alligator Clamp 100A 2pcs is a set of two high-quality alligator clamps engineered for reliable, high-current electrical connections. Designed to handle up to 100 amperes, these clamps are ideal for demanding tasks such as battery charging, testing, and jump-starting in automotive, marine, and industrial environments. Featuring insulated handles for enhanced safety and a color-coded design (one red, one black) for easy polarity identification, these clamps offer durability and ease of use.
Features :
- Strong spring-loaded jaws for a firm grip and secure connection.
- Rated for 100A current, suitable for high-power applications.
- Insulated handles.
- Color-coded: one red and one black clamp for polarity identification.
Specifications :
| Specification | Details |
|---|---|
| Current Rating | 100A |

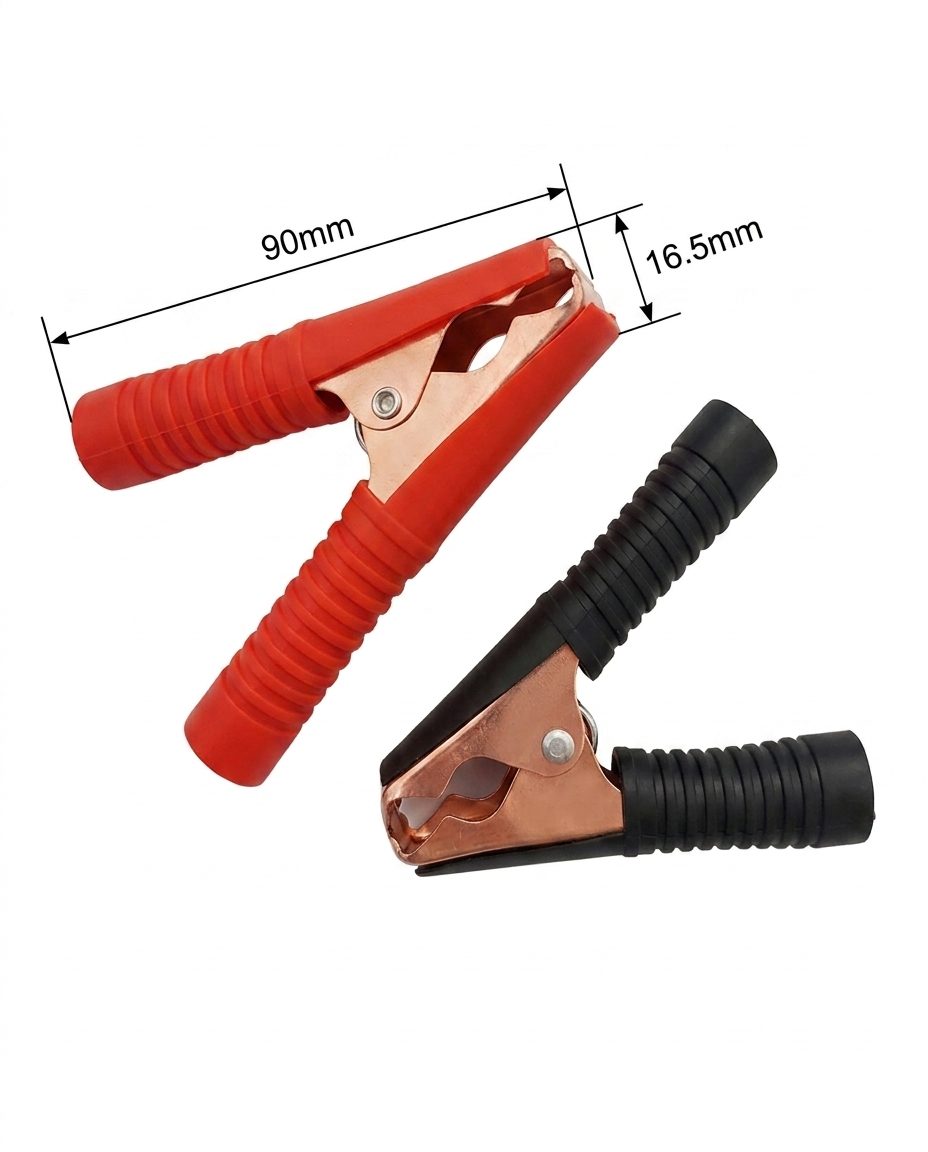

| Length | 90mm |
| Jaw Opening | 27mm |
| Material | Copper-Plated Steel |
| Insulation Material | Rubber |
| Wire Connection | Crimp Terminal |
| Set Includes | 2 Pieces (1× Red, 1× Black) |
Applications :
- Battery charging and testing in vehicles and boats.
- Temporary high-current electrical connections in industrial settings.
- Laboratory testing and experimentation.
Package Include:
- 1x Red Battery Alligator Clamp.
- 1x Black Battery Alligator Clamp.
Notes:
- For low-voltage DC applications only. Do not use on AC mains or high-voltage circuits.
- Observe the correct polarity before connecting the clamps.
- Avoid allowing the red and black clamps to touch each other while connected to a battery.
- Do not exceed the verified current rating of the clamp, cable, or connection point.
- Ensure the wire is securely crimped or soldered before use.
- Stop using the clamp if it becomes hot, discolored, loose, or damaged.
- Disconnect the power source before installing or replacing the connecting wire.
