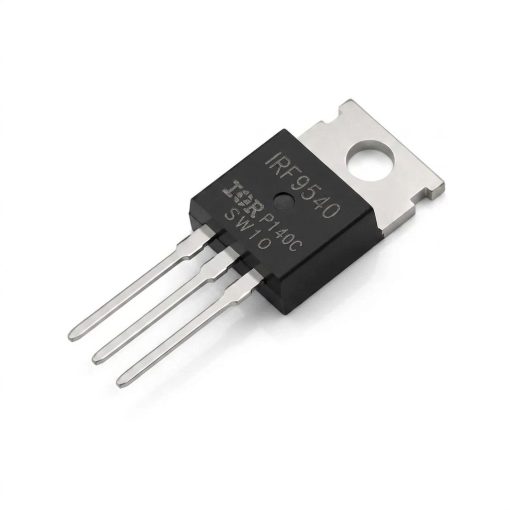

IRF9540 P-Channel Power MOSFET Transistor 100V 19A TO-220AB
Third Generation HEXFETs from International Rectifier provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance, and cost-effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
Features
- Dynamic dv/dt Rating
- Repetitive Avalanche Rated
- P-Channel
- 175°C Operating Temperature
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
Applications
- Commercial-industrial power dissipation applications up to approximately 50 watts.
Package Content
- 1 x IRF9540 P-Channel Power MOSFET Transistor 100V 19A TO-220AB

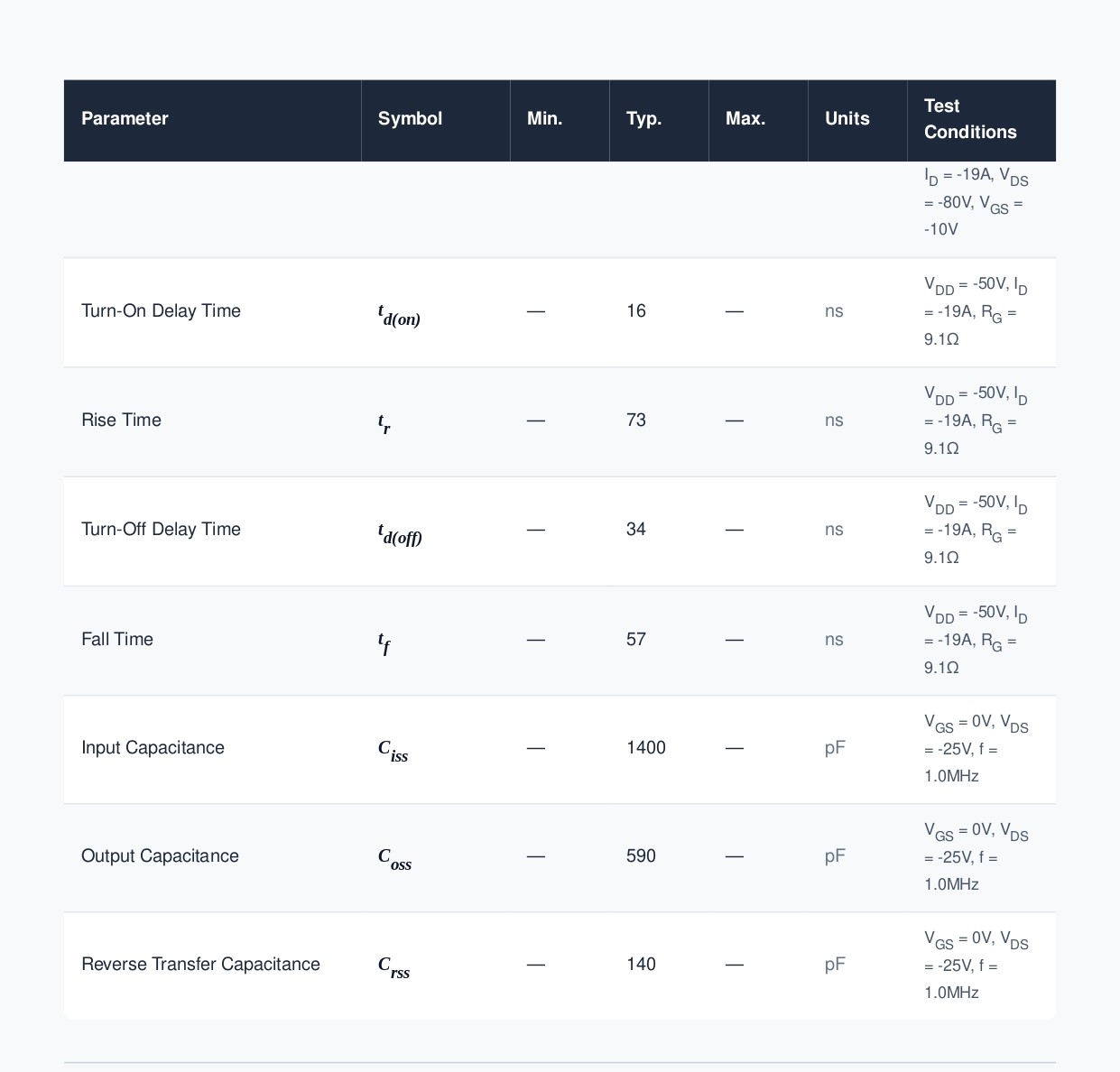

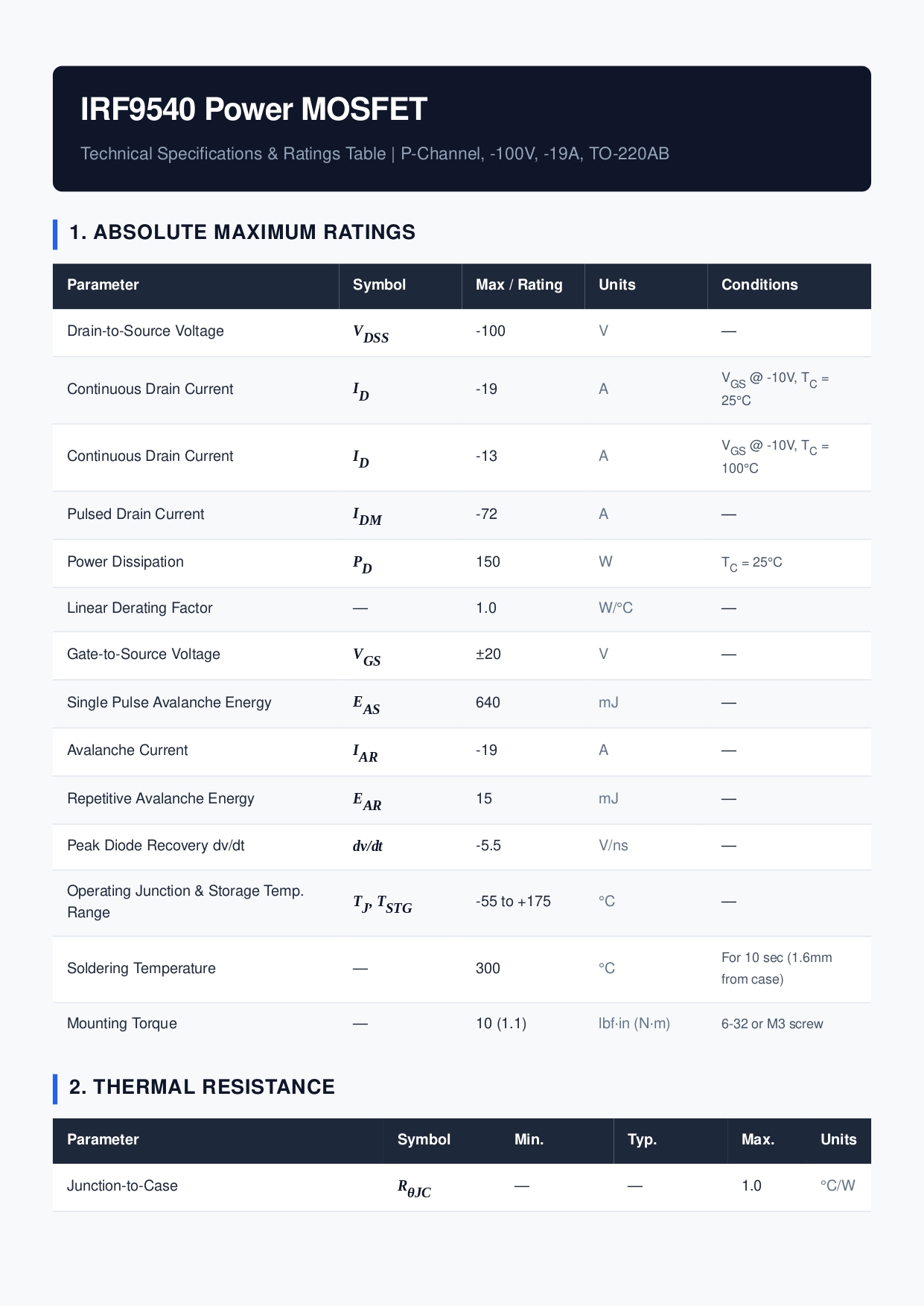

DataSheet
