IRFB4110 MOSFET Transistor N-Channel 100V 180A TO-220
IRFB4110 MOSFET Transistor N-Channel 100V 180A TO-220 is a high-performance power MOSFET designed for demanding switching and power management applications. Featuring a drain-source voltage rating of 100V and continuous drain current capability up to 180A, this N-channel MOSFET delivers excellent efficiency with very low RDS(on). The TO-220 package provides effective thermal performance and easy mounting, making it suitable for motor controllers, DC-DC converters, battery-powered systems, inverters, and high-current switching circuits.
Features
- High continuous drain current rating of 180A.
- Drain-source voltage rating of 100V.
- Very low RDS(on) for reduced conduction losses.
- Fast switching performance.
- Avalanche rated for rugged operation.
- High efficiency in power conversion applications.
- Suitable for high-current motor control circuits.
- TO-220 package for easy mounting and heat sinking.
- Low gate charge for improved switching efficiency.
- Reliable operation in demanding environments.
Specifications
| Model Number: | IRFB4110 |
| Product Type: | MOSFETs Transistor |
| Channel Mode: | Enhancement |
| Configuration: | Single |
| Transistor Type: | 1 N-Channel |
| Number of Channels: | 1 Channel |
| Mounting Style: | Through Hole |
| Package/Case: | TO – 220 |
| Vds-Drain-Source Breakdown Voltage: | 100 V |
| Id-Continuous Drain Current: | 180 A |
| Rds On-Drain-Source Resistance: | 4.5 mΩ |
| Vgs-Gate-Source Voltage: | – 20 V, + 20 V |
| Operating Temperature: | – 55 °C to + 175 °C |
| Pd-Power Dissipation: | 370 W |
| Fall Time: | 88 ns |
| Rise Time: | 67 ns |
| Turn-Off Delay Time: | 78 ns |
| Turn-On Delay Time: | 25 ns |
Pin Configuration

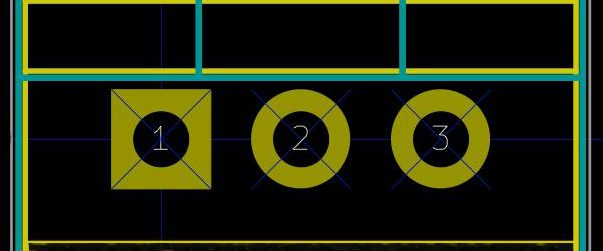

Footprint Diagram
Applications
- DC-DC converters.
- Switched-mode power supplies (SMPS).
- Motor control circuits.
- Uninterruptible power supplies (UPS).
- Renewable energy systems (e.g., solar inverters).
- High-power battery management.
- Hard switched and High frequency circuits.
Package Contents
- 1x IRFB4110 N-Channel MOSFET Transistor 100V 180A TO-220
