IRFB4229 MOSFET Transistor 250V 46A 330W TO-220
High-power N-Channel MOSFET delivering 250V, 46A. Features low on-resistance and fast switching for efficient power supplies and motor control.
65.00 EGP
Buy NowIRFB4229 MOSFET Transistor 250V 46A 330W TO-220
A robust and efficient solution for high-power applications, the IRFB4229 N-Channel MOSFET is engineered for superior performance and reliability. This transistor is an excellent choice for power management in a variety of electronic circuits. Its advanced design ensures fast switching speeds and low on-resistance, making it a highly effective component for demanding tasks.
Features
- Low On-Resistance
- High Voltage and Current
- Fast Switching
- High Temperature Operation
- Robust and Reliable
- Enhancement Mode
Specification
| SYMBOL | PARAMETER | VALUE | UNIT |
|---|---|---|---|
| VDSS | Drain-Source Voltage | 250 | V |
| VGS | Gate-Source Voltage | ±30 | V |
| ID | Drain Current-Continuous | 46 | A |
| IDM | Drain Current-Single Pulsed | 180 | A |
| PD | Total Dissipation @Tc=25°C | 330 | W |
| Tj | Max. Operating Junction Temperature | 175 | °C |
| Tstg | Storage Temperature | -40~175 | °C |
Thermal Characteristics
| SYMBOL | PARAMETER | MAX | UNIT |
|---|---|---|---|
| Rth(ch-c) | Channel-to-case thermal resistance | 0.45 | °C/W |
| Rth(ch-a) | Channel-to-ambient thermal resistance | 62 | °C/W |
Electrical Characteristics (Tc=25°C unless otherwise specified)
| SYMBOL | PARAMETER | CONDITIONS | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|---|---|
| BVDSS | Drain-Source Breakdown Voltage | VGS=0V; ID =250 µA | 250 | V | ||
| VGS(th) | Gate Threshold Voltage | VDS=VGS; ID =250 µA | 3 | 5 | V | |
| RDS(on) | Drain-Source On-Resistance | VGS=10V; ID=26A | 46 | mΩ | ||
| IGSS | Gate-Source Leakage Current | VGS= ±20V | ±0.1 | µA | ||
| IDSS | Drain-Source Leakage Current | VDS=250V; VGS= 0V | 20 | µA | ||
| VSD | Diode forward voltage | IS=26A; VGS = 0V | 1.3 | V |

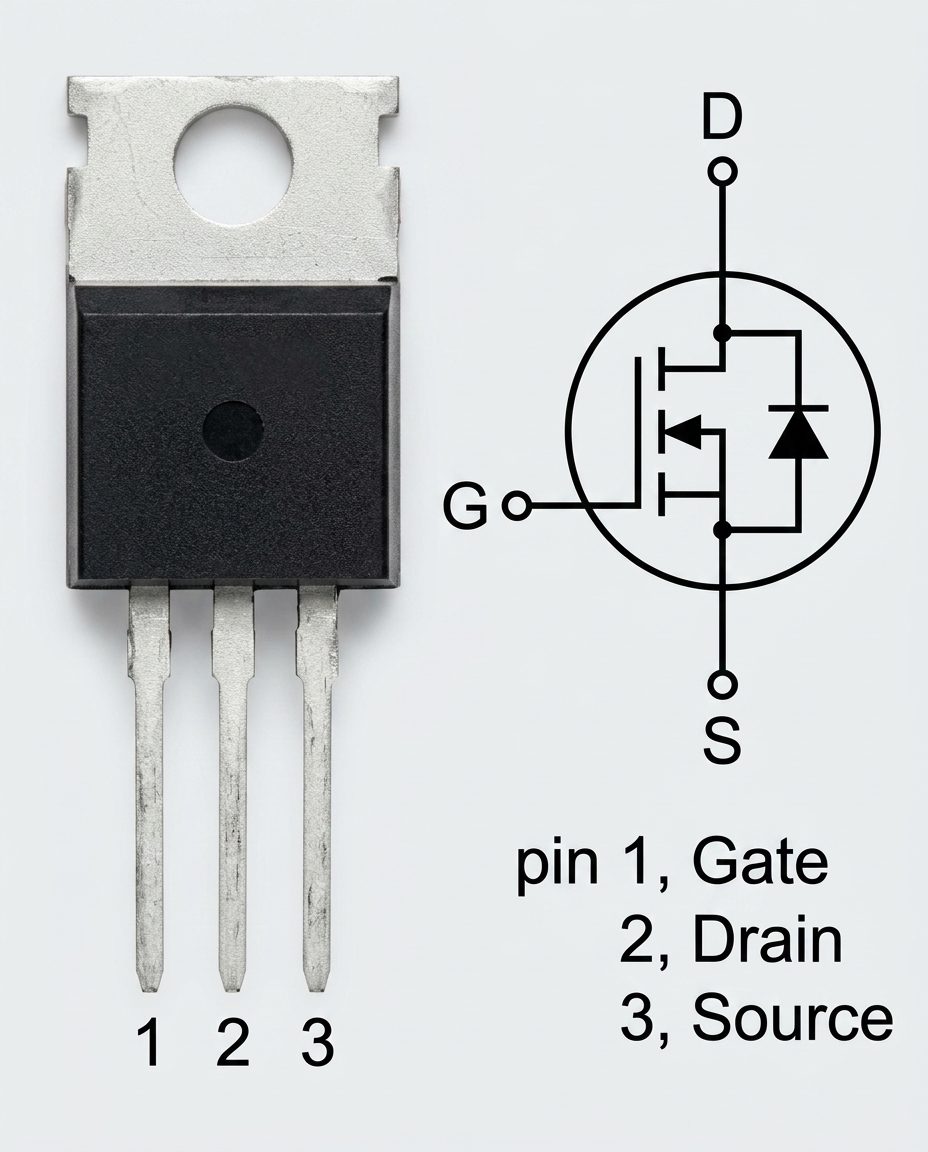

Pin Configuration:
Applications
- Power supply units
- DC-DC converters
- Motor control systems
- Inverters and converters
- Switching regulators
- Power management systems
Package Include:
1x IRFB4229 MOSFET Transistor 250V 46A 330W TO-220
