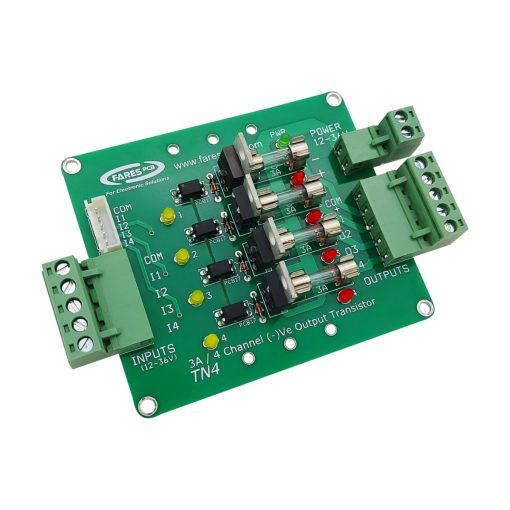

TN4 Negative Output Transistor Interface Module 4-Channel 3A
The TN4 Negative Output Transistor Interface Module is a rugged, opto-isolated four-channel interface board designed to safely drive and switch DC loads from industrial control systems and PLCs. Each channel provides a negative-output (sinking) FET-type transistor capable of handling up to 3A, with opto-isolation to protect sensitive control electronics from field transients and ground loops. The module includes per-channel fusing, clear LED indicators for power/input/output status, multiple mounting options and a compact footprint for easy integration into control panels and automation racks.
Features
- 4-channel negative output FET type transistor.
- Operating voltage range: 12-36V.
- Maximum operating current: 3 ampere.
- All channels are opto-isolated for safety.
- Green LED indicator for power input.
- Yellow LED indicator for each Input.
- Red LED indicator for each output.
- Provides 3A fuse for overcurrent protection.
- Four (Ø 3.5mm) mounting holes for easy installation.
- DIN Rail mounting using PCB carrier or PCB bracket ( Optional ).
- Dimensions: 90 X 78 X 22mm.
Specifications
| Parameter | Value |
|---|---|
| Channel count | 4 channels |
| Output type | Negative output (sinking) FET-type transistor |
| Operating voltage | 12–36VDC |
| Maximum current (per channel) | 3A |
| Isolation | Opto-isolated inputs (all channels) |
| Indicators | Power: green Input: yellow (per channel) Output: red (per channel) |
| Protection | 3A fuse per channel |
| Mounting | 4 × Ø3.5mm holes; optional PCB carrier / DIN-rail bracket |
| Dimensions | 90mm x 78mm x 22mm |
Applications
- Interface and isolation between PLC / microcontroller outputs and DC loads requiring sinking outputs.
- Driving lamps, small motors, solenoids, relays and actuators in industrial control panels.
- Protecting control electronics from noisy field circuits and ground loops in automation systems.
- Test rigs, bench systems and retrofit control boxes requiring compact, fused outputs.
- Robotics, security systems, HVAC control and other embedded automation tasks.
Package Contents
- 1x TN4 Negative Output Transistor Interface Module 4-Channel 3A.
