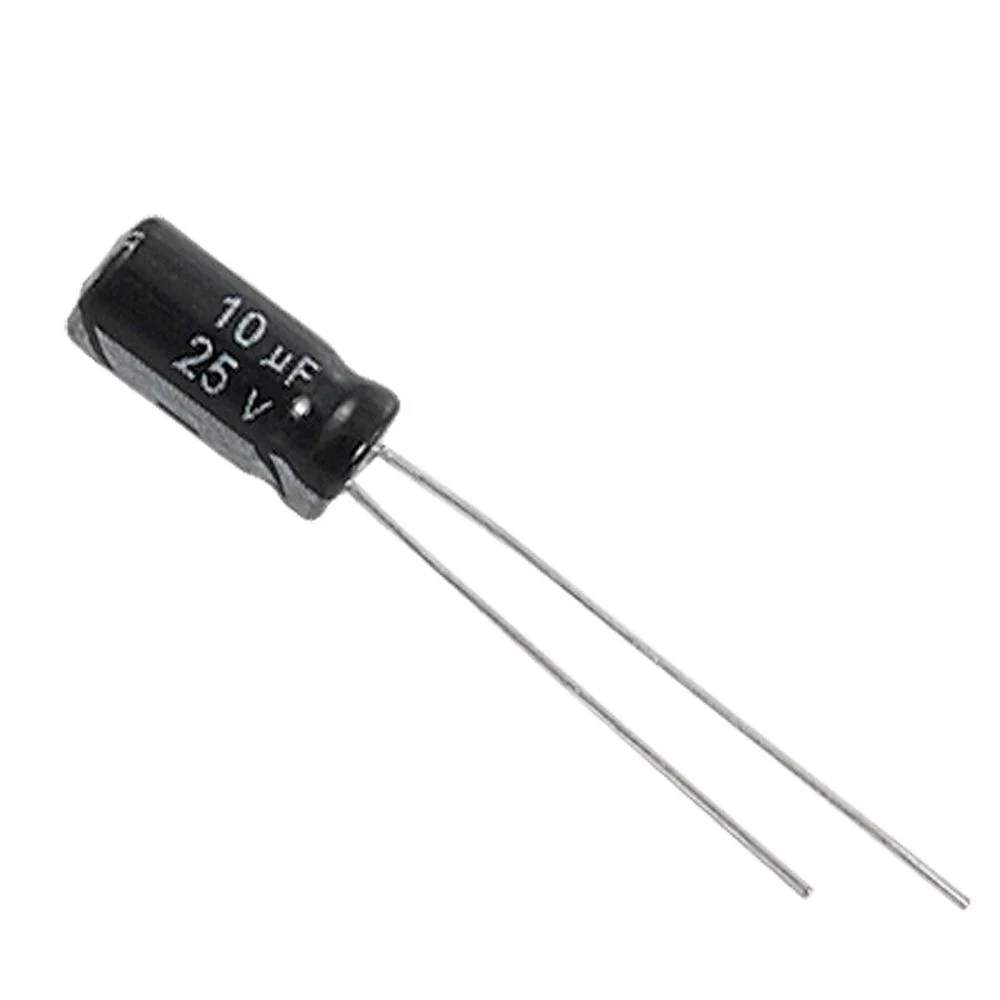

Jakec Aluminum Electrolytic Capacitor 10uF 25V 5x11mm
JAKEC 10µF 25V aluminum electrolytic capacitor with ±20% tolerance, 105°C rating, radial through-hole construction, and 5x11mm size.
0.75 EGP
Buy NowJakec Aluminum Electrolytic Capacitor 10uF 25V 5x11mm
The JAKEC Aluminum Electrolytic Capacitor 10µF 25V ±20% 105°C 5x11mm is a polarized radial aluminum electrolytic capacitor designed for general-purpose electronic circuits. It provides a capacitance of 10µF with a rated voltage of 25VDC and a capacitance tolerance of ±20%. Matching references identify the 5x11mm size as a common radial through-hole configuration for this specification.
Features:
- 10µF capacitance.
- 25VDC rated voltage.
- ±20% capacitance tolerance.
- 105°C maximum temperature rating.
- Aluminum electrolytic construction.
- Polarized capacitor.
- Radial through-hole design.
Specifications:
| Parameter | Value |
|---|---|
| Brand | JAKEC |
| Capacitance | 10µF |
| Rated Voltage | 25VDC |
| Tolerance | ±20% |
| Technology | Aluminum Electrolytic |
| Polarity | Polarized |
| Mounting Type | Through Hole |
| Termination Style | Radial |
| Pitch | 5mm |
| Maximum Operating Temperature | 105°C |

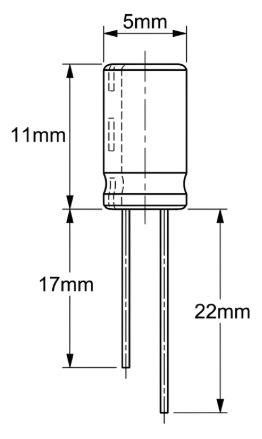

| Body Diameter | 5mm |
| Body Length | 11mm |
| Long Lead Length | 22mm |
| Short Lead Length | 17mm |
| Country of Origin | China |
Applications:
- Power supply filtering.
- DC voltage smoothing.
- Power rail decoupling.
- Signal coupling circuits.
- General-purpose electronic circuits.
- Through-hole PCB assemblies.
- Electronic repair and maintenance.
- DIY electronics projects.
- Audio and signal circuits.
- Consumer electronic equipment.
Package Include:
1x Jakec Aluminum Electrolytic-Capacitor 10uF 25V 5x11mm
