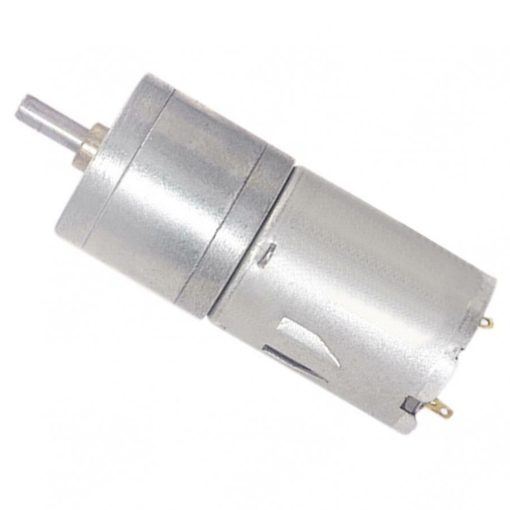

JGA25-370 DC Gear Motor 12V 170RPM
The JGA25-370 DC Gear Motor is a high-quality brushed DC motor equipped with a precision metal gearbox, delivering a rated speed of 170 RPM at 12V DC. Its compact 25 mm diameter body and D-shaped output shaft make it suitable for robotic vehicles, conveyor systems, automatic actuators, vending machines, and a wide range of DIY automation projects. The metal gearbox ensures smooth operation, high durability, and reliable torque transmission while maintaining low noise levels.
Designed for continuous-duty operation, the JGA25-370 offers an excellent balance between rotational speed and mechanical power. It is compatible with common DC motor drivers and development platforms such as Arduino, Raspberry Pi, STM32, and ESP32. The motor is ideal for applications requiring stable performance, compact size, and long service life.
Features:
- Durable all-metal gearbox.
- Compact cylindrical motor design.
- Smooth and stable operation.
- Low noise performance.
- High-quality metal gears.
- D-shaped output shaft for secure coupling.
- Supports forward and reverse rotation.
- Compatible with PWM speed control.
- High torque with low current consumption.
- Suitable for continuous-duty applications.
- Easy integration with DC motor drivers.
- Long operational life.
- Reliable mechanical transmission.
- Ideal for robotics and automation projects.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | DC Geared Motor |
| Model | JGA25-370 |
| Motor Type | Brushed DC Motor |
| Rated Voltage | 12V DC |
| Operating Voltage | 6–18V DC |
| Reduction Ratio | 35:1 |
| No-Load Speed | 170 RPM (±10%) |
| Rated Speed | 130 RPM (±10%) |
| No-Load Current | 60 mA |
| Rated Current | 450 mA |
| Rated Torque | 0.8 kg.cm |
| Stall Torque | 2.8 kg.cm |
| Stall Current | 1.3 A |
| Gearbox Type | Metal Gearbox |
| Output Shaft Type | D-Type Shaft |
| Shaft Diameter | 4 mm |
| Shaft Length | 21 mm |
| Motor Diameter | 25 mm |
| Weight | 100 g |
| Terminal Type | 2-Pin |
Pinout:
| Pin | Description |
|---|---|
| Motor + | Positive DC power input |
| Motor – | Negative DC power input |
Applications:
- Mobile robots.
- Robotic vehicles.
- Conveyor systems.
- Automatic actuators.
- Electric control valves.
- Vending machines.
- Automatic doors.
- Smart home automation.
- Motion control systems.
- DIY robotics projects.
- Educational laboratories.
- Industrial automation.
Package Includes:
- 1x JGA25-370 DC Gear Motor 12V 170RPM.
