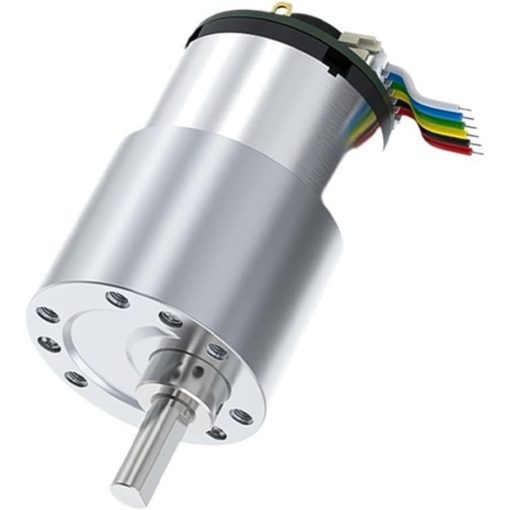

JGB37-520 DC Gear Motor 12VDC 110RPM D-Shaft 5.5mm with Encoder & Mount Bracket
JGB37-520 12V DC gear motor with 110RPM speed, encoder feedback, 5.5mm D-shaft, metal gearbox, and mount bracket for robots and automation.
675.00 EGP
Buy NowJGB37-520 DC Gear Motor 12VDC 110RPM D-Shaft 5.5mm with Encoder & Mount Bracket
The JGB37-520 DC Gear Motor 12VDC 110RPM with Encoder is a high-performance geared motor designed for robotics, smart cars, automation systems, and DIY motion control applications. It combines a durable 37mm metal spur gearbox with a powerful 520 brushed DC motor and an integrated incremental encoder for precise speed monitoring and position feedback.
Features:
- Operating voltage of 12V DC
- Built-in incremental encoder with A/B outputs
- No-load speed up to 110RPM
- Durable 37mm metal spur gearbox
- 5.5mm D-shaped output shaft
- Supports CW and CCW rotation
Specifications:
| Parameter | Details |
|---|---|
| Product Type | DC Gear Motor with Encoder |
| Motor Model | JGB37-520 |
| Motor Type | DC Motor |
| Operating Voltage | 12VDC |
| Gearbox Type | Metal Spur Gearbox |
| Gearbox Diameter | 37mm |
| No-Load Speed | 110RPM |
| No-Load Current | 0.15A |
| Rated Speed | 85RPM |
| Rated Current | 0.65A |
| Rated Torque | 3.90kg.cm |
| Rated Power | 7.8W |
| Stall Torque | 12.0kg.cm |
| Stall Current | 2.4A |
| Gearbox Length | 24mm |
| Output Shaft Type | D Shaft |
| Output Shaft Diameter | 5.5mm |
| Shaft Length | 15.5mm |
| Rotation Direction | CW / CCW |
Applications:
- Smart Robot Cars
- Line Following Robots
- Self-Balancing Robots
- Robotic Arms
- AGV Robots
- Conveyor Systems
- Automatic Doors
- DIY Automation Projects
- Educational Robotics
- Motion Control Systems
Package Include:
- 1× JGB37-520 DC Gear Motor 12V 110RPM
- 1× Metal Mount Bracket
- 1× 6-Wire Encoder Cable
- 8× Mounting Screws
