JGB37-520 DC Gear Motor 12VDC 76RPM D-Shaft 5.5mm with Encoder & Mount Bracket
The JGB37-520 DC Gear Motor 12VDC 76RPM with Encoder is a high-performance brushed DC geared motor designed for robotics, smart vehicles, automation projects, and DIY motion control systems. It combines a durable metal gearbox with a powerful 520 motor to deliver stable speed and high torque performance.
Features:
- Operating voltage of 12VDC.
- Metal reduction gearbox for durability.
- Built-in quadrature encoder for speed feedback.
- 6mm D-shaped output shaft.
- No-load speed up to 76RPM.
- Rated torque of 3.9Kg.cm.
- High torque and stable performance.
Specifications:
| Parameter | Details |
|---|---|
| Product Type | DC Gear Motor with Encoder |
| Model | JGB37-520 |
| Motor Type | Brushed DC Motor |
| Operating Voltage | 12VDC |
| No Load Speed | 76RPM ±10% |
| No Load Current | 150mA |
| Rated Speed | 58RPM ±10% |
| Rated Current | 650mA |
| Rated Torque | 3.9Kg.cm |
| Rated Power | 7.8W |
| Gearbox Material | Metal |
| Shaft Type | D Shaft |
| Shaft Diameter | 5.5mm |
| Output Shaft Direction | CW |
| Encoder Type | Incremental Quadrature Encoder |
| Encoder Cable | 6 Wire |

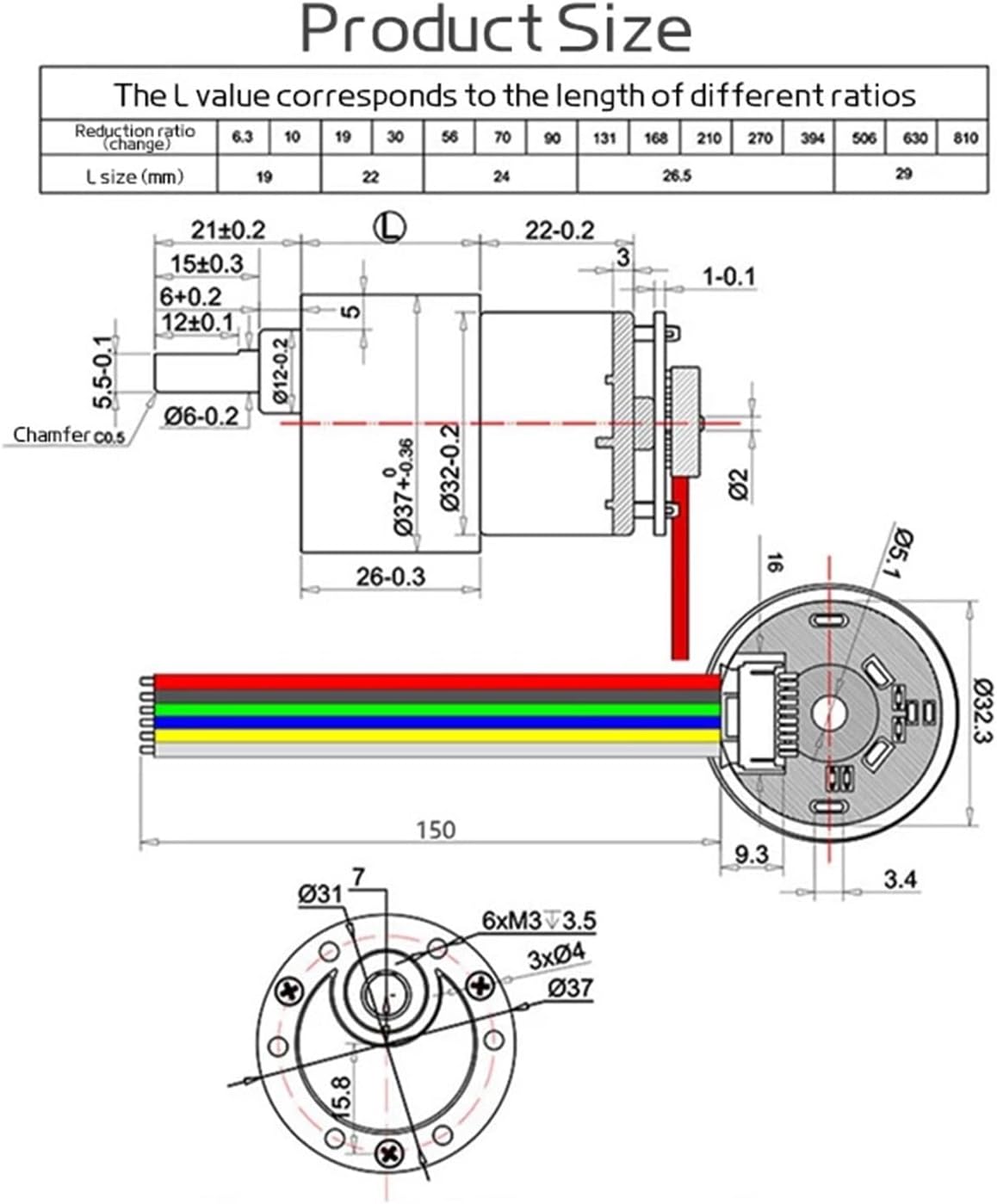

| Gearbox Length | 26.5mm |
| Application | Robots, AGV, Smart Cars, Automation |
Applications:
- Drive motor for smart car and robot platforms with encoder feedback.
- Self-balancing robot and inverted pendulum systems.
- Line-following and maze-solving autonomous vehicles.
- Conveyor belt and automated material handling systems.
- Pan-and-tilt platforms for cameras and sensors.
- DIY CNC machine and 3D printer axis drives.
- Precision positioning and rotary table mechanisms.
- Educational robotics and STEM project builds.
Package Include:
- 1× JGB37-520 DC Gear Motor 12V 76RPM
- 1× Metal Mount Bracket
- 1× 6-Wire Encoder Cable
- 8× Mounting Screws
